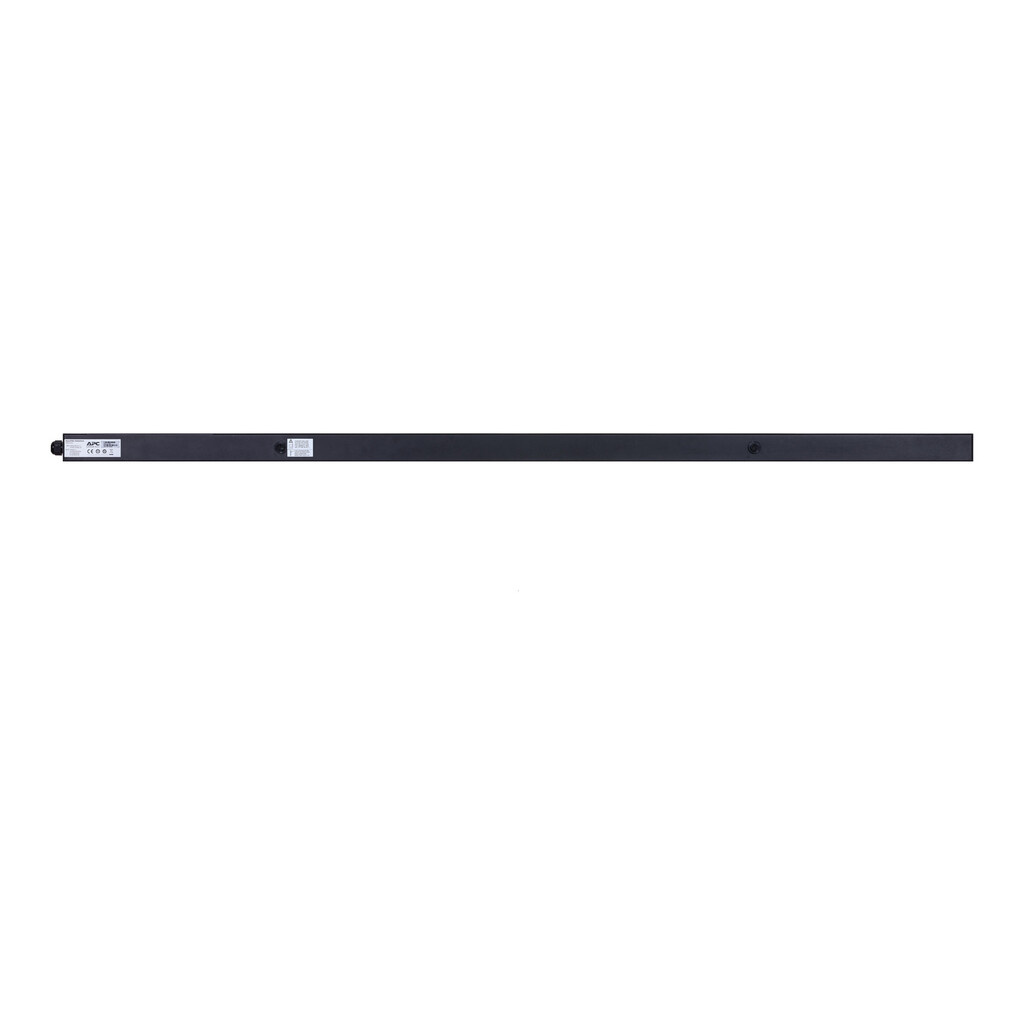

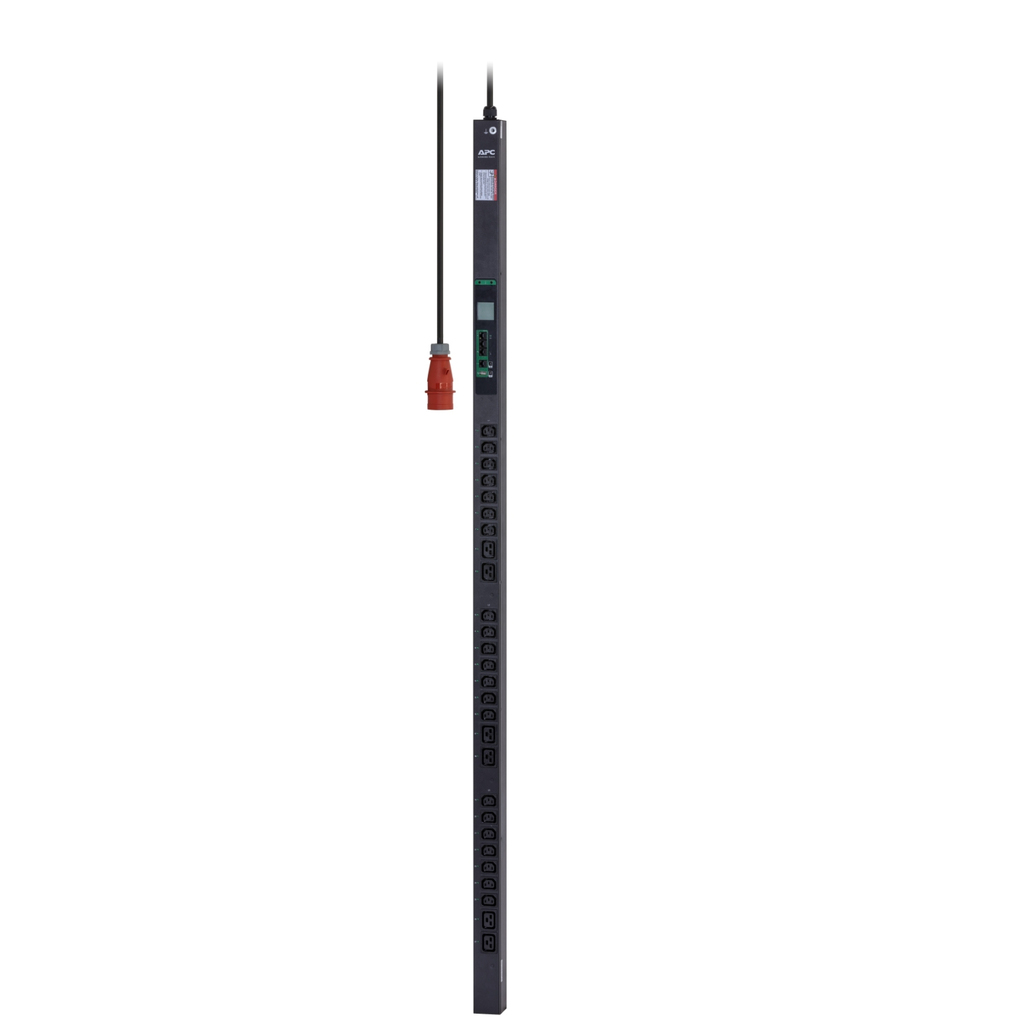

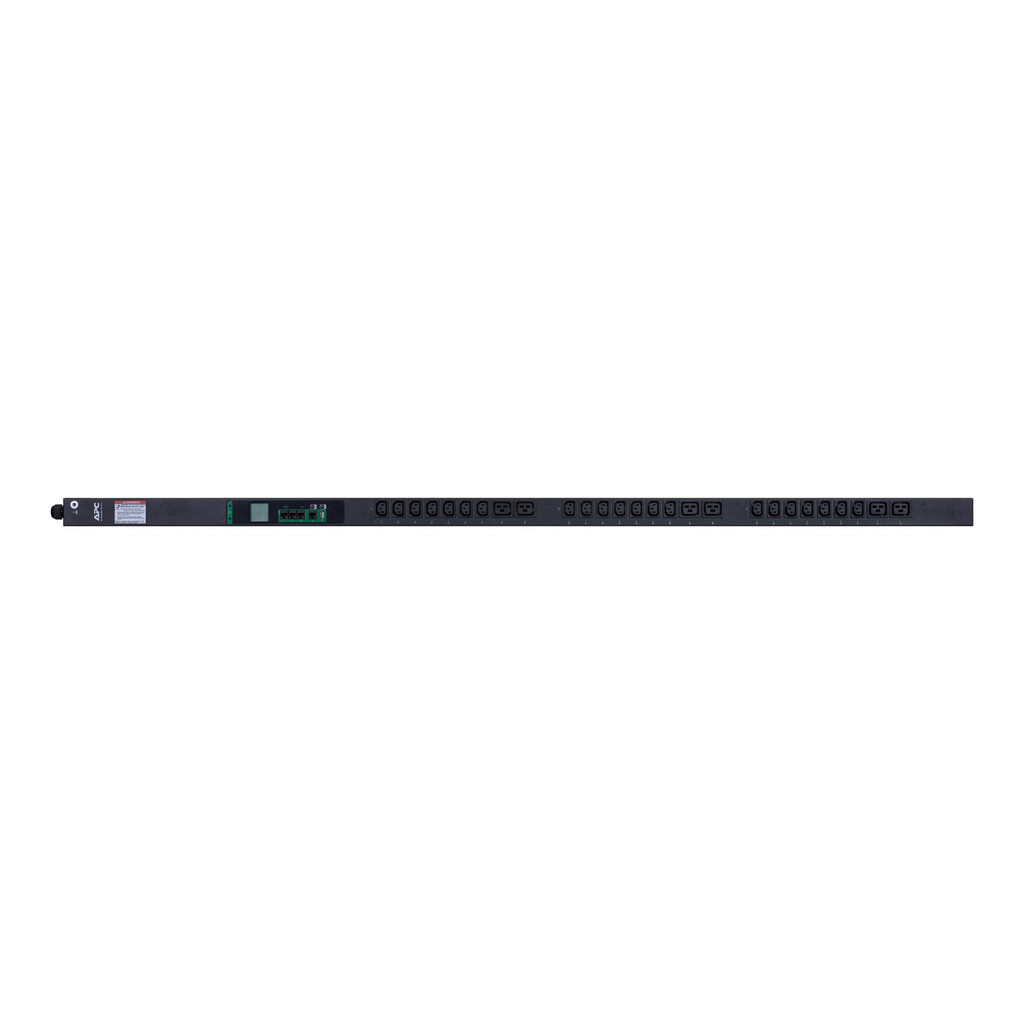

APC Easy Rack PDU, Switched, 0U, 3 Phase, 11kW, 230V, 16A, 21 C13 and 6 C19 outlets, IEC60309 3P + N + PE inlet
In Stock
Easy Rack PDU, Switched, 0U, 3 Phase, 11kW, 230V, 16A, 21 C13 and 6 C19 outlets, IEC60309 3P + N + PE inlet
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.
Additional information
| Weight | 8.06 lbs |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 27 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 60309 16 A 3P + N + PE |
| Nominal input voltage | 400 3 phases |
| AC input frequency | 50 – 60 Hz |
| Maximum power | 11000 W |
| Certification | CE; EAC; RCM; TÜV |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 55 mm |
| Depth | 62 mm |
| Height | 1794 mm |
| Weight | 6.2 kg |
| Package weight | 7.78 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1950 mm |
| Total carbon footprint (kg of CO2e) | 845.6987954423 |
| Maximum current | 16 A |
| Type | Three-phase |
| Power plug | IEC 60309 |
| Cable length | 2 m |
| Compliance certificates | RoHS, REACH, WEEE |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Housing material | Aluminium |
| Output voltage | 230 V |
| Number of phases | 3 |
| Daisy chain | Yes |
| Sustainability compliance | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Sustainable packaging | No |
| Country of origin | China |
| Customs product code (TARIC) | 8537109899 |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
