APC Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery
Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

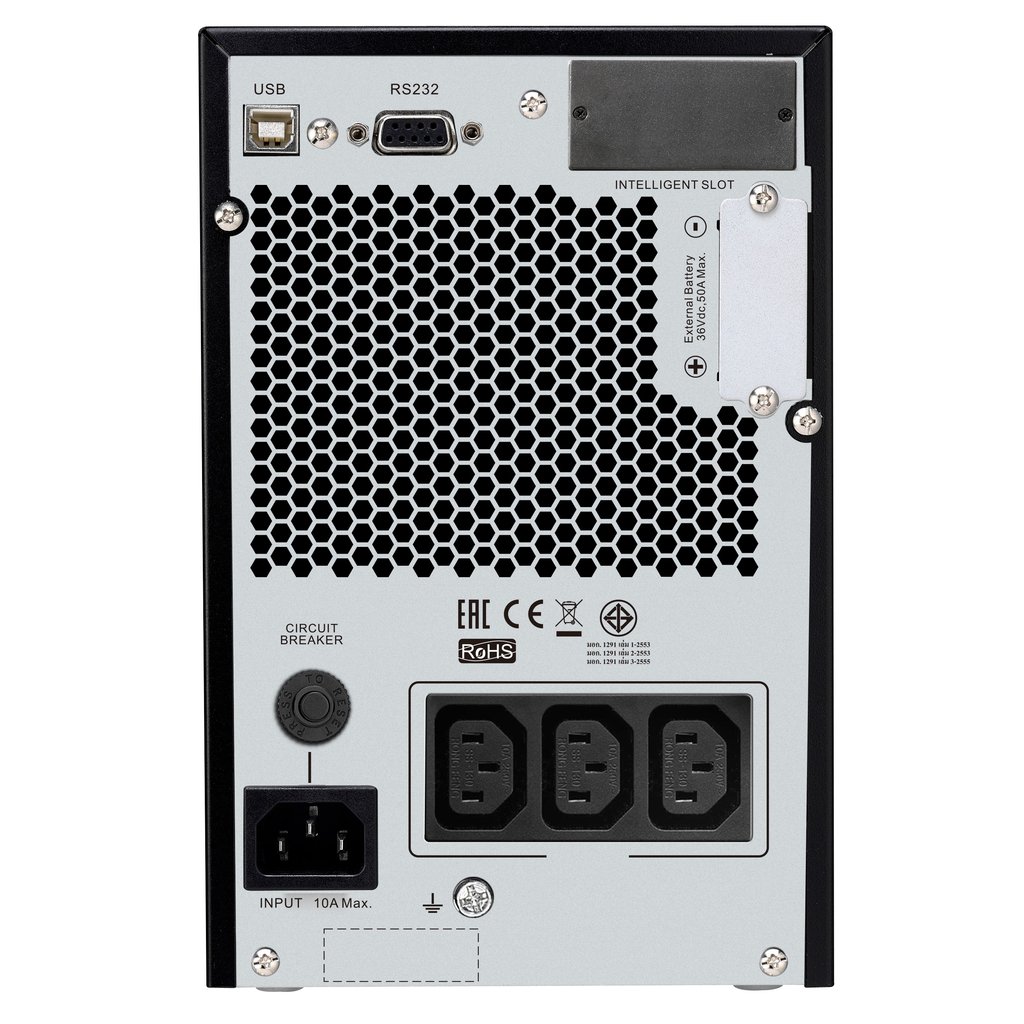

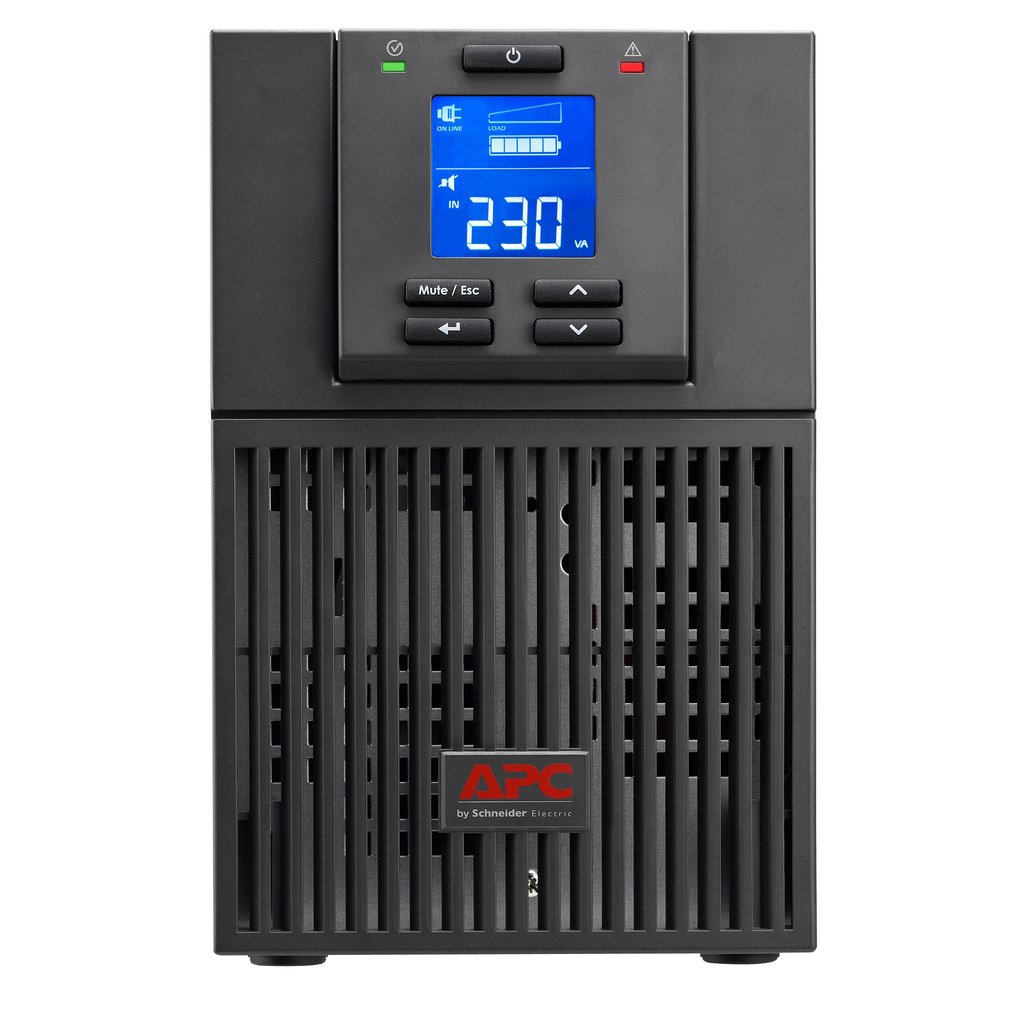

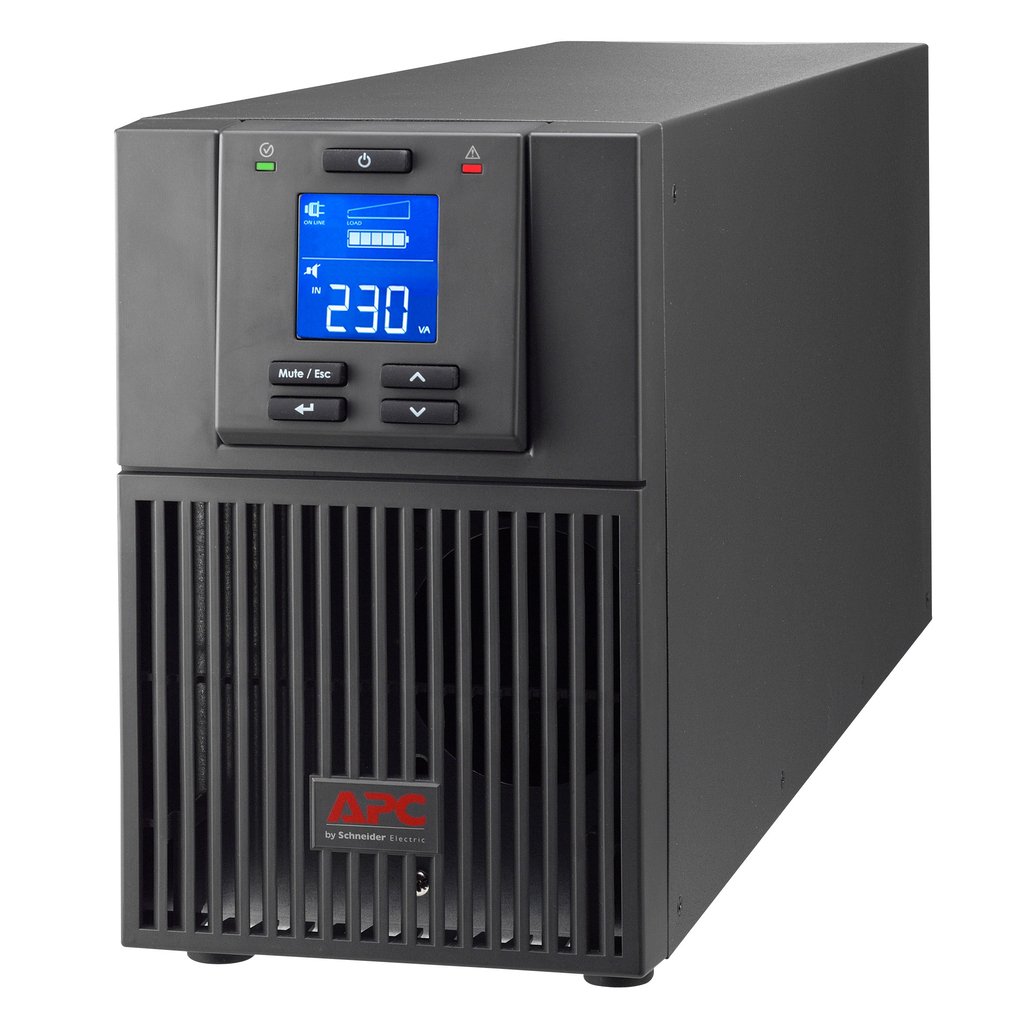

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Additional information
| Weight | 6.1 lbs |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Input frequency | 40/70 Hz |
| Audible alarm(s) | Yes |
| Battery recharge time | 4 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 14763.6 m |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2REACH |
| Weight | 9.3 kg |
| Harmonized System (HS) code | 85078000 |
| Nominal input voltage | 230 V |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Form factor | Tower |
| Compliance certificates | RoHS |
| Width | 145 mm |
| Depth | 288 mm |
| Height | 223 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| Auto-restart | Yes |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Automatic battery test | Yes |
| Display type | LCD |
| LED indicators | Yes |
| Cables included | USB cable |
| Manual | Yes |
| Nominal output voltage | 230 V |
| Surge energy rating | 600 J |
| Serial ports quantity | 1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Battery width | 23.5 cm |
| Battery depth | 36.5 cm |
| Battery height | 33 cm |
| Battery weight | 10.6 kg |
