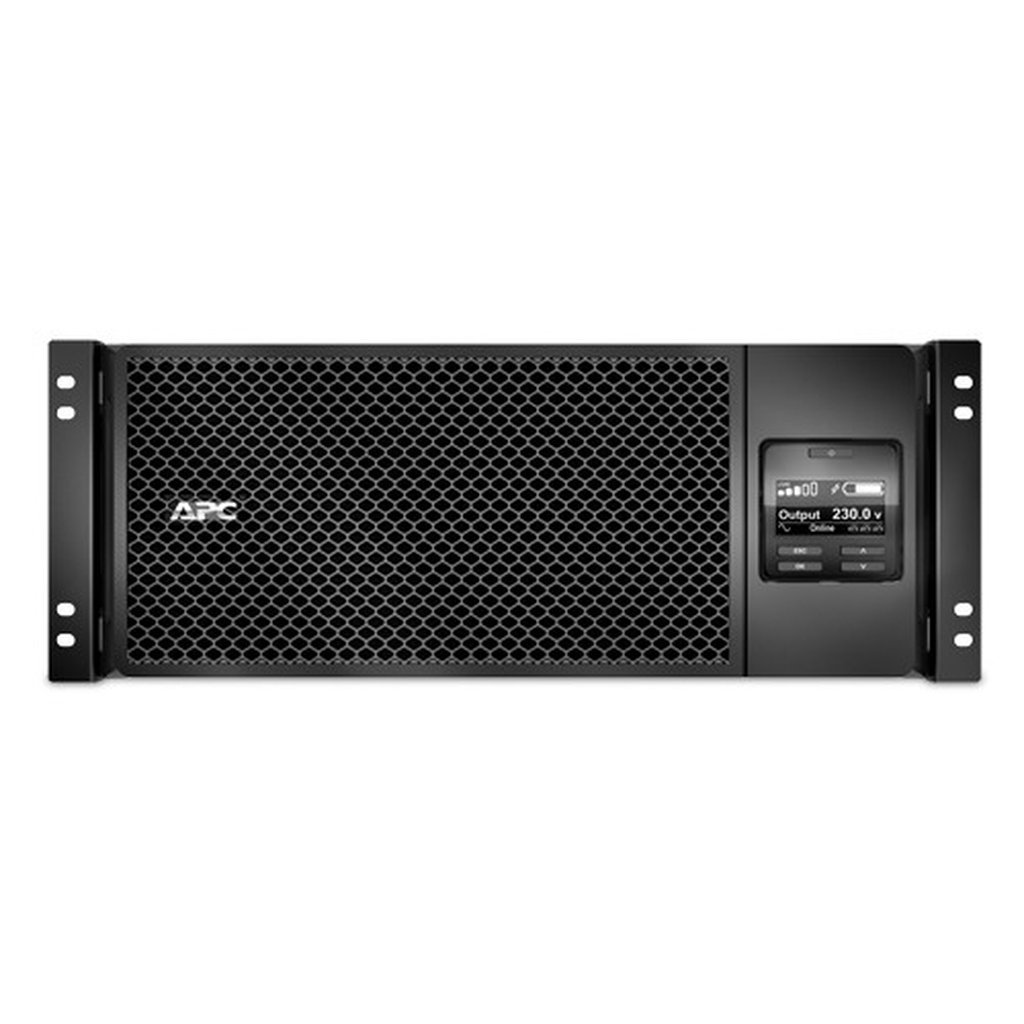

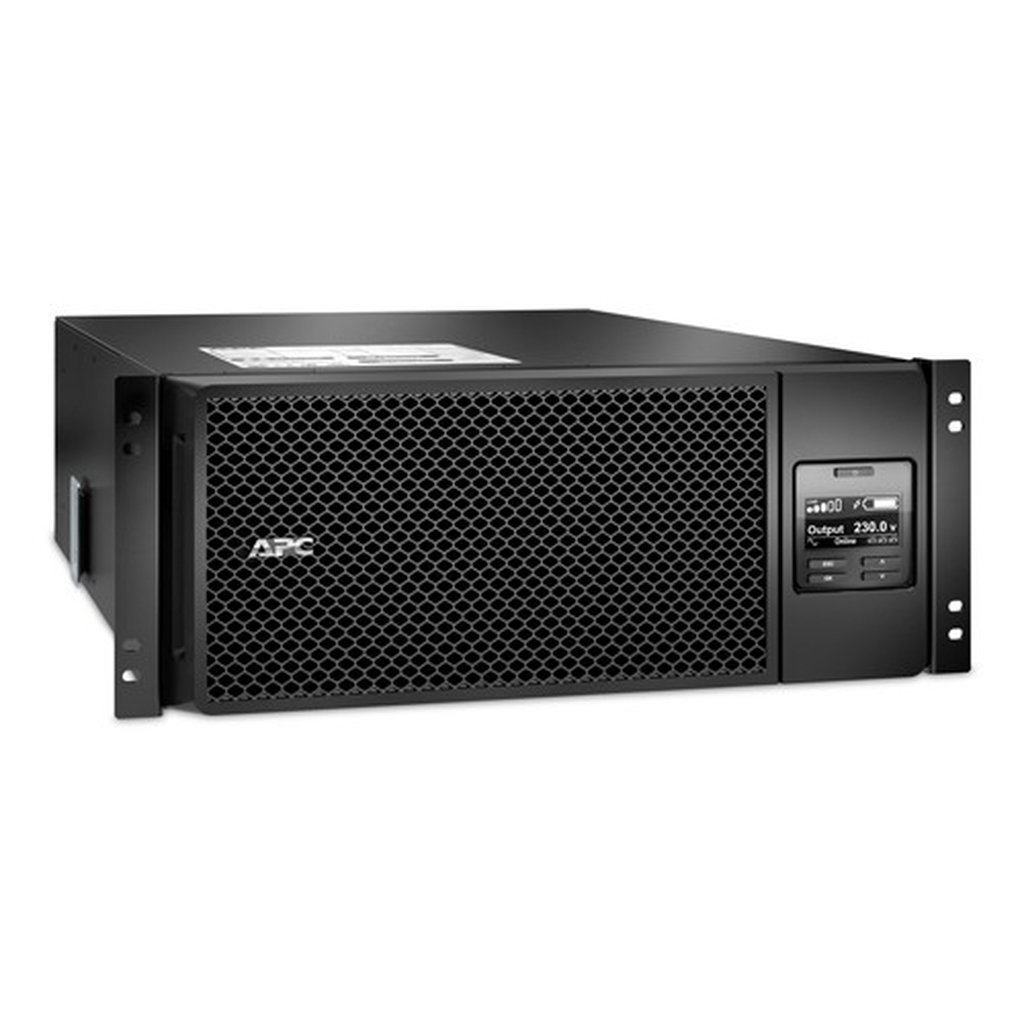

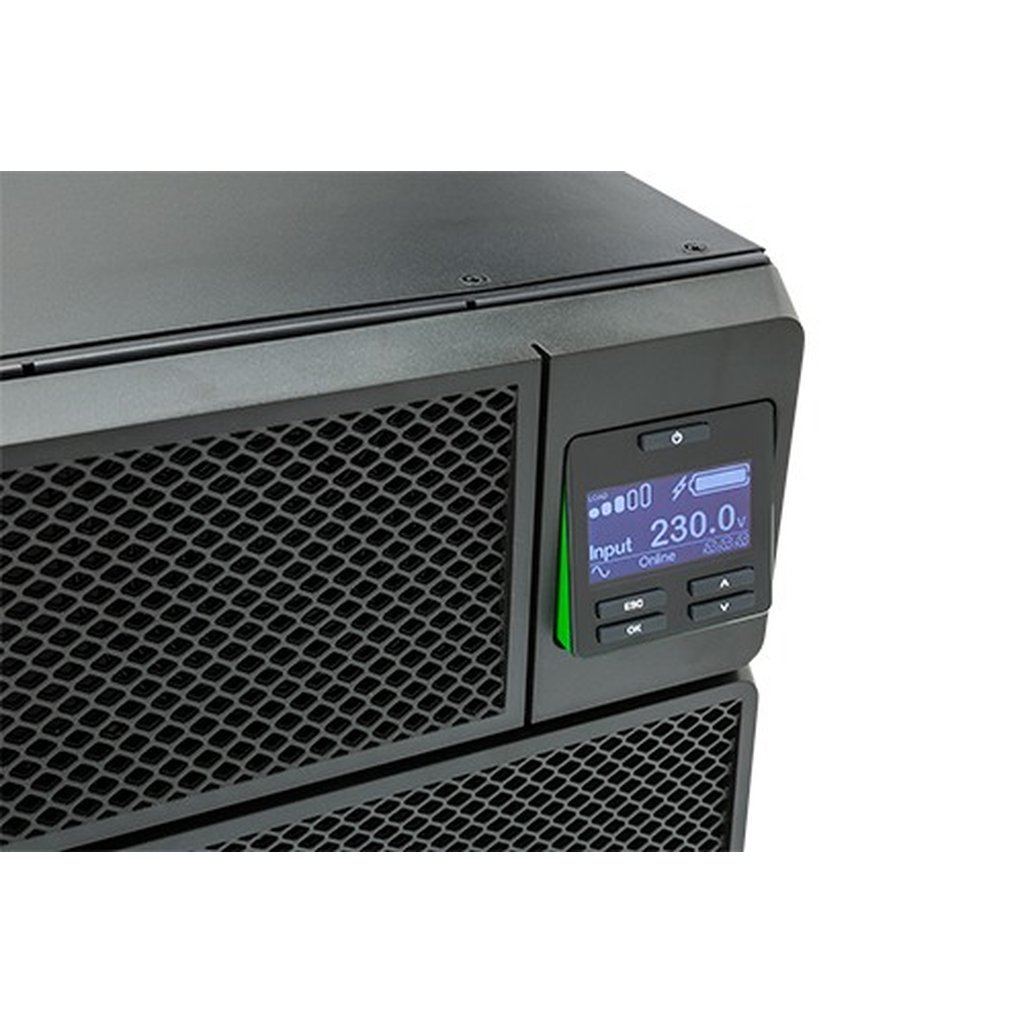

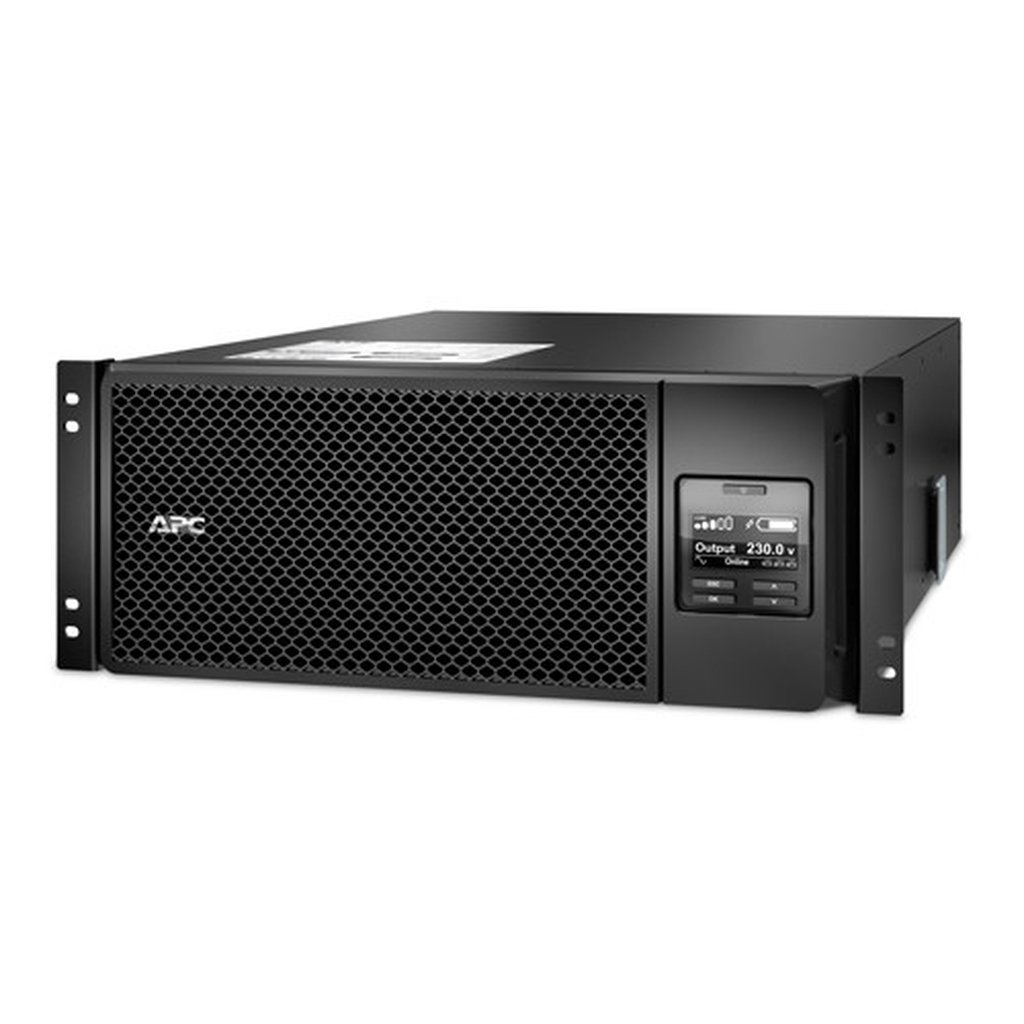

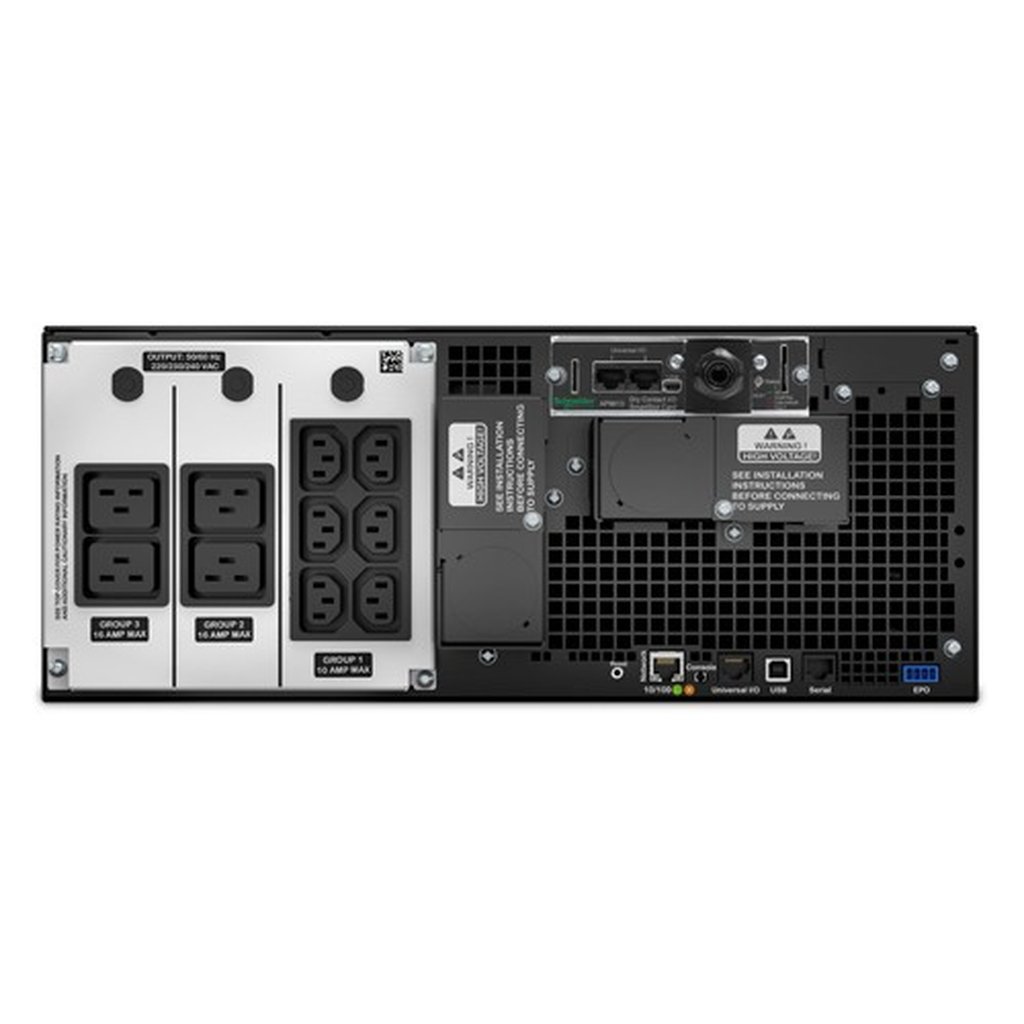

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ ra
Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Additional information
| Weight | 70.9 lbs |
|---|---|
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Input frequency | 40 – 70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 1 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CE, EAC, RCM, VDE, REACH |
| Weight | 60 kg |
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 6 pc(s) |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Form factor | Rackmount |
| Compliance certificates | RoHS |
| Width | 432 mm |
| Depth | 719 mm |
| Height | 174 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| Noise level | 55 dB |
| Surge protection | Yes |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| AC outlets quantity | 13 AC outlet(s) |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Rack capacity | 4U |
| Display type | LCD |
| LED indicators | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 370 mm |
| Total carbon footprint (kg of CO2e) | 55428.62 |
| Surge energy rating | 480 J |
| Output frequency | 50/60 Hz |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| International Protection (IP) code | IP20 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Number of batteries supported | 1 |
| Package volume | 67000 cm³ |
| Temperature voltage compensation | Yes |
