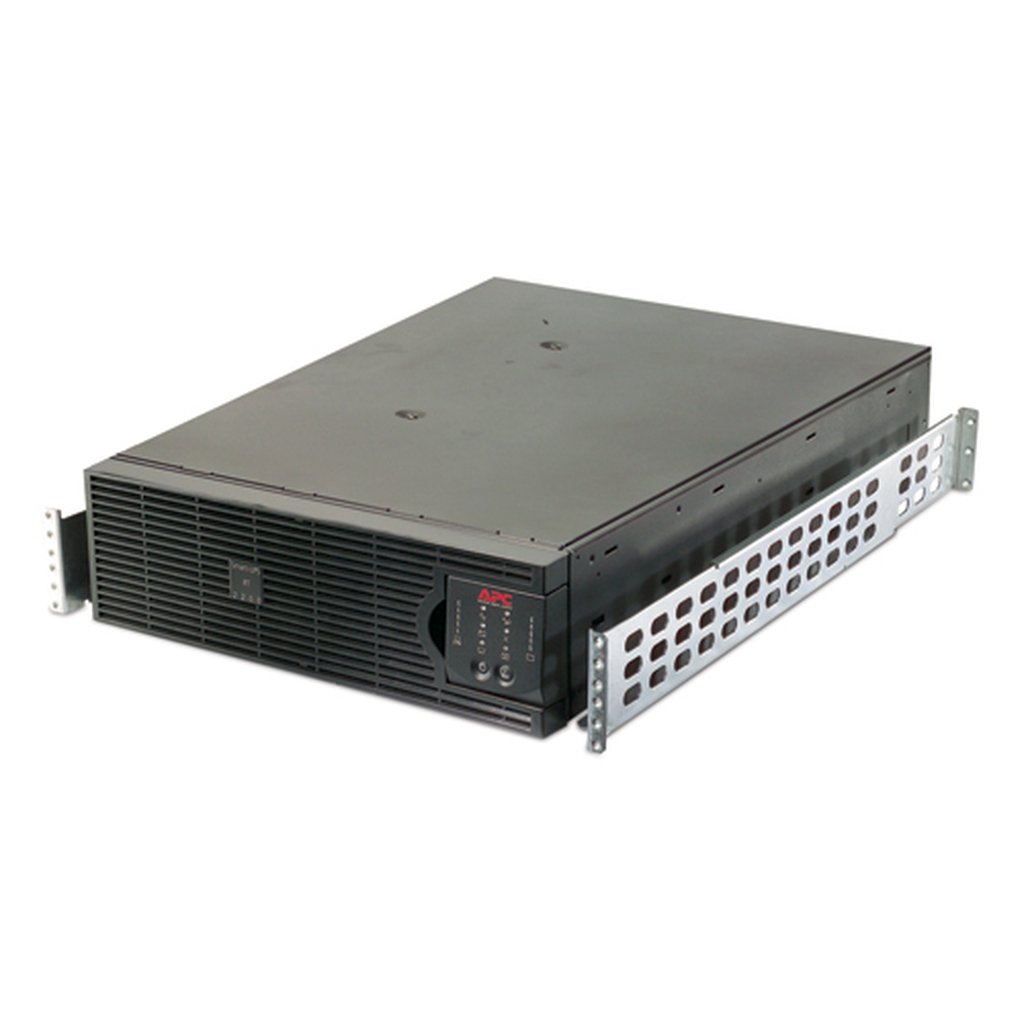

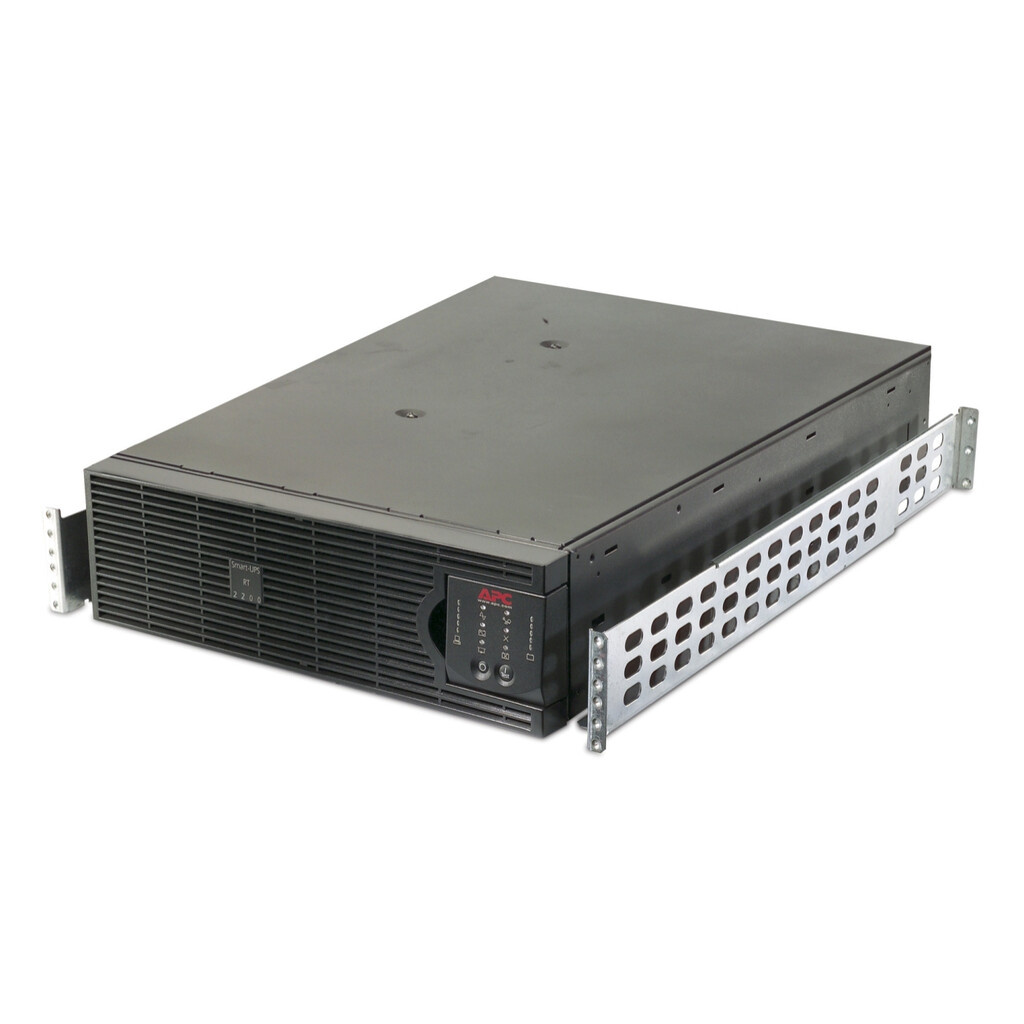

APC Smart-UPS RT 2200VA 230V – Marine
Smart-UPS RT 2200VA 230V – Marine
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Additional information
| Weight | 63.64 lbs |
|---|---|
| Output power capacity | 2.2 kVA |
| Output power | 1540 W |
| Input frequency | 50/60 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 2.5 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CE; DNV; KCC |
| Weight | 54.5 kg |
| Harmonized System (HS) code | 85078000 |
| Input connection type | BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P |
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
| Nominal input voltage | 230 V |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
| Package weight | 63.6 kg |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Form factor | Rackmount |
| Compliance certificates | RoHS, REACH, WEEE |
| Width | 130 mm |
| Depth | 660 mm |
| Height | 432 mm |
| Waveform | Sine |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92% |
| Crest factor | 3:1 |
| Noise level | 55 dB |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Rack capacity | 3U |
| Total carbon footprint (kg of CO2e) | 4342.273094382711 |
| Nominal output voltage | 230 V |
| Surge energy rating | 555 J |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output voltage | 230 V |
| Cable length | 2.5 m |
| Country of origin | Philippines |
| Output connection type | 8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19 |
| Replacement battery cartridge | APCRBC140 |
| Packaging recycled materials | Recycled cardboard |
| Sustainable packaging | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Customs product code (TARIC) | 8504409590 |
| Mounting | front |
| Battery replacement accessibility | End-user |
| SCIP number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Proposition 65 | Yes |
| Voltage | 230 V |
