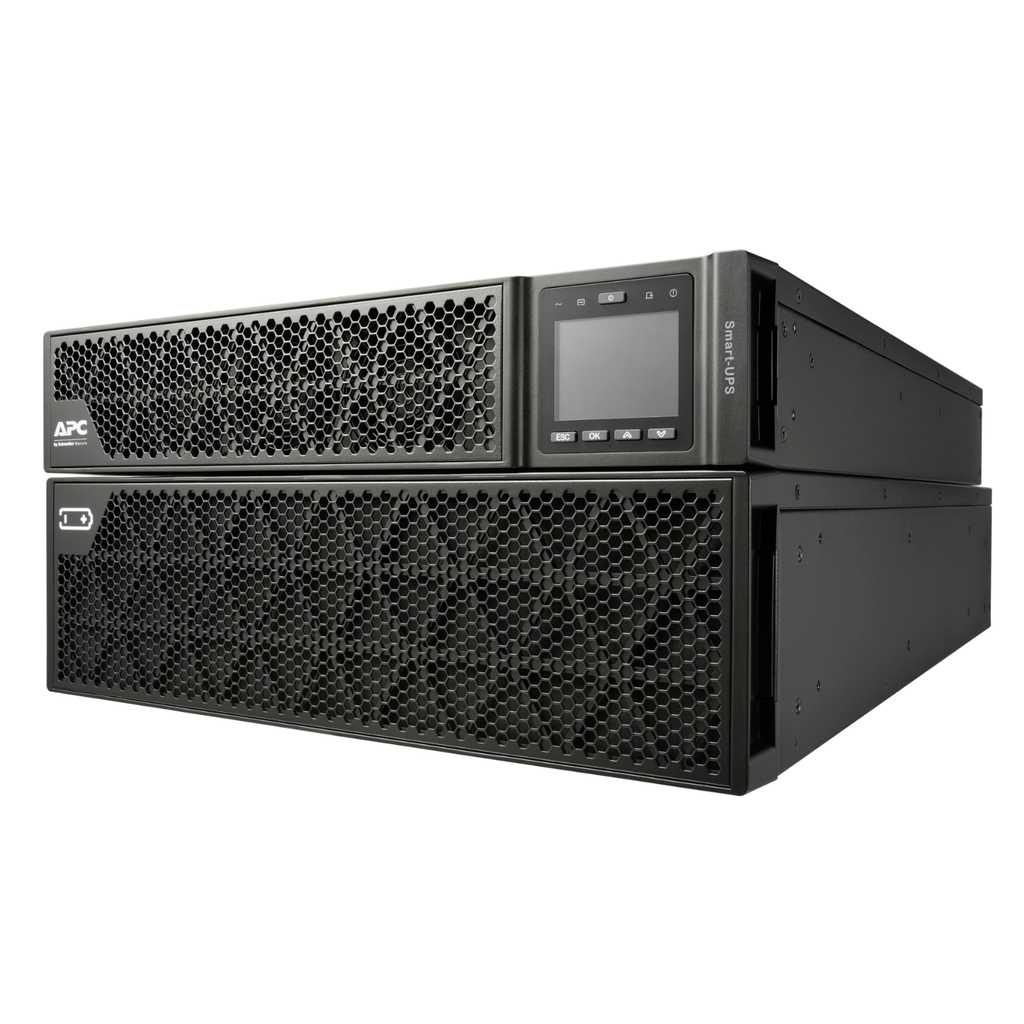

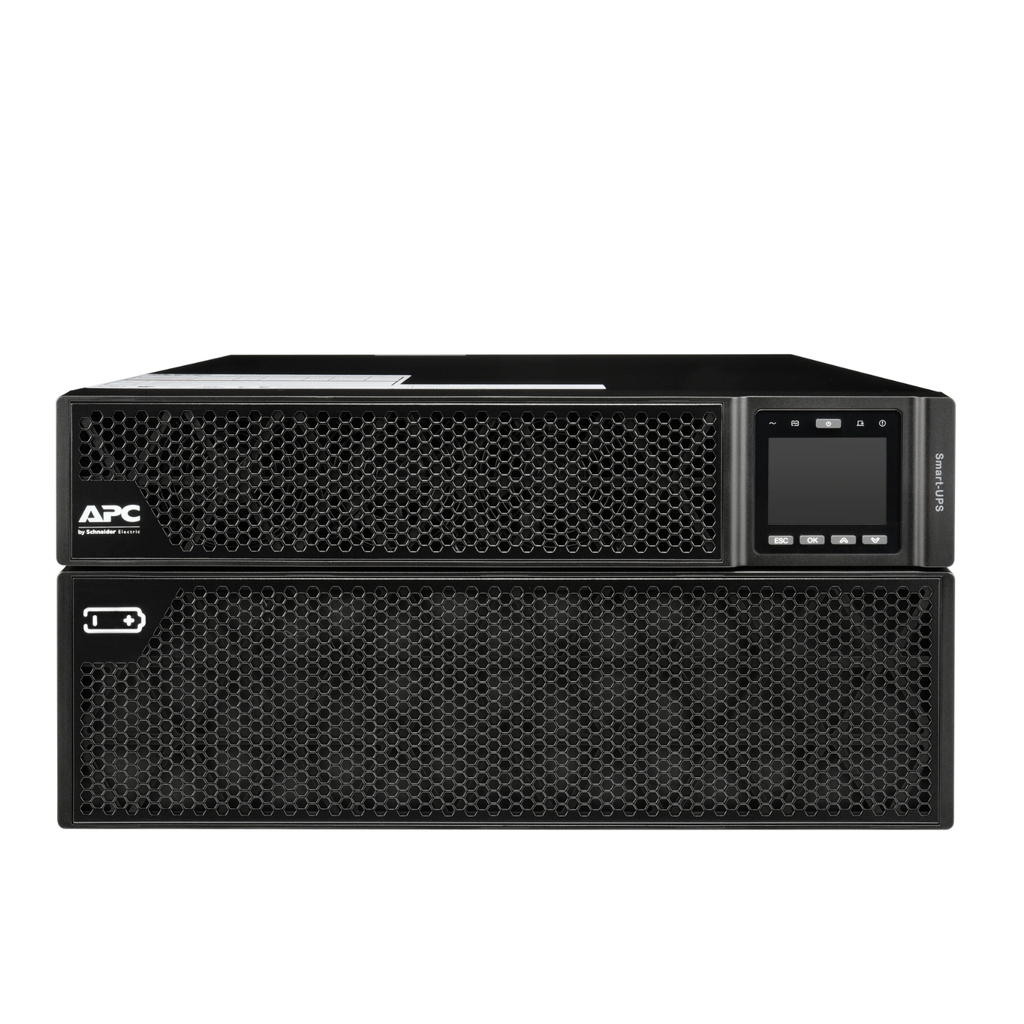

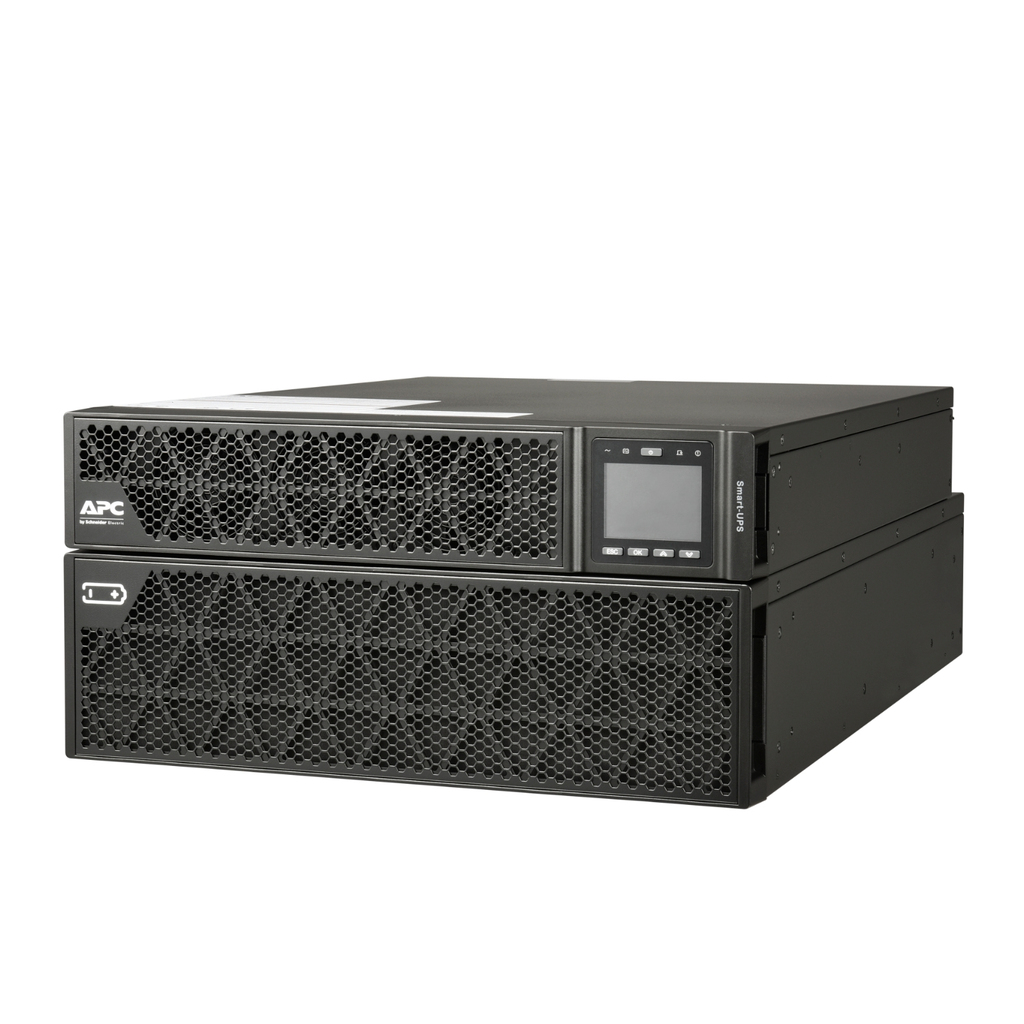

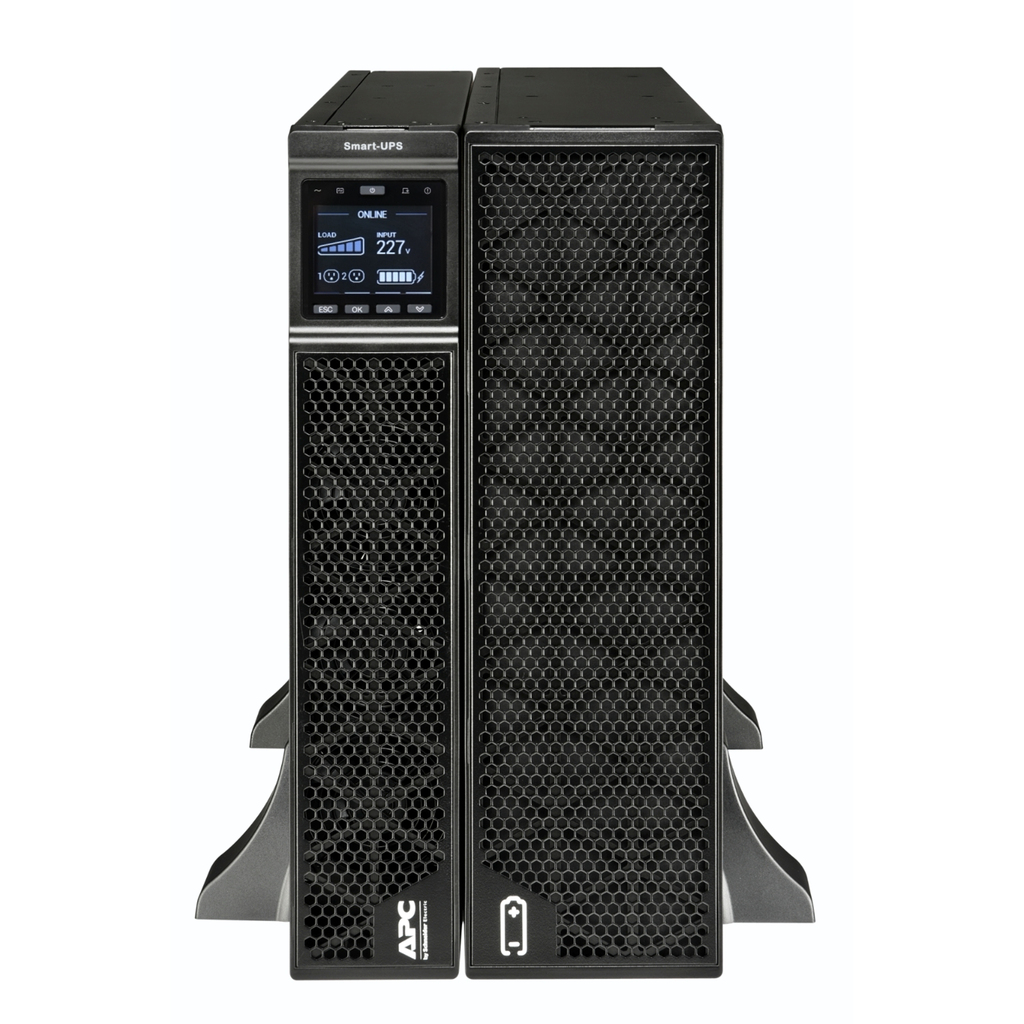

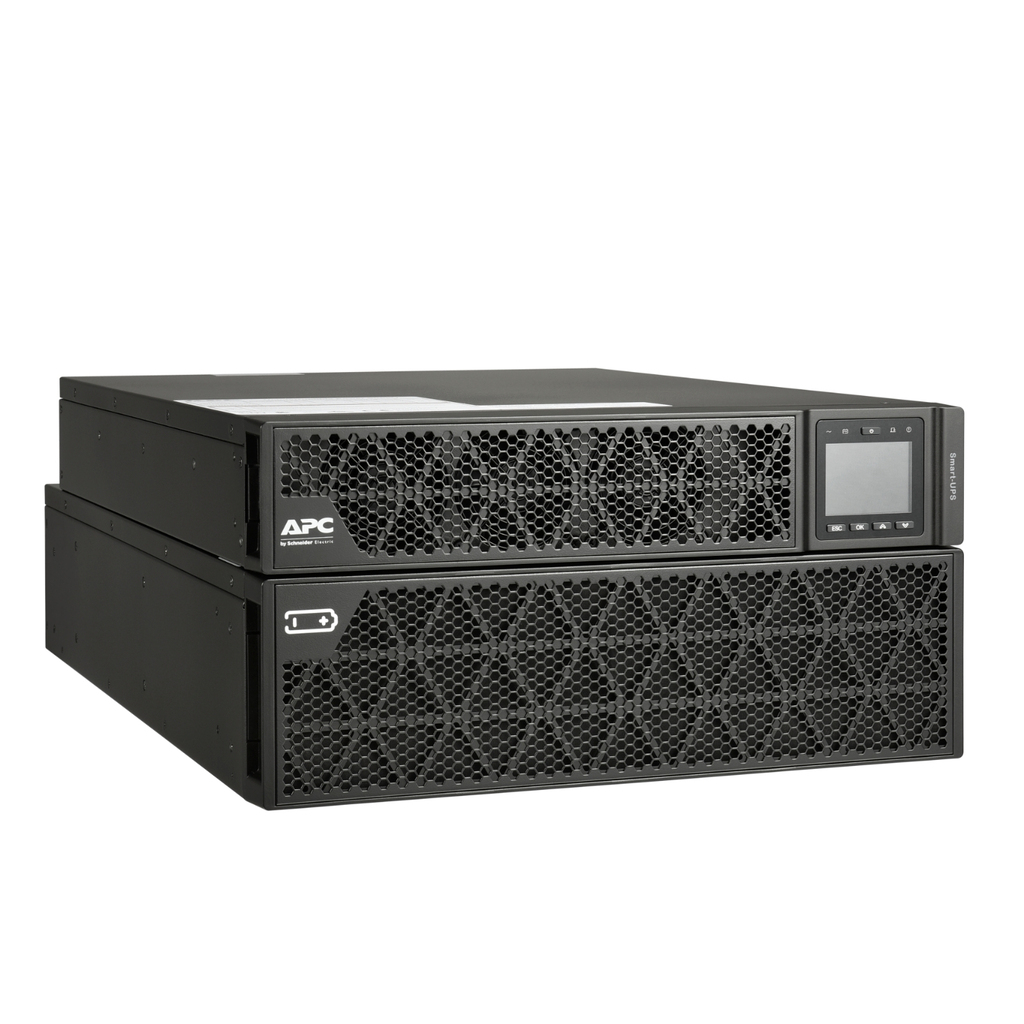

APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O ra
Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

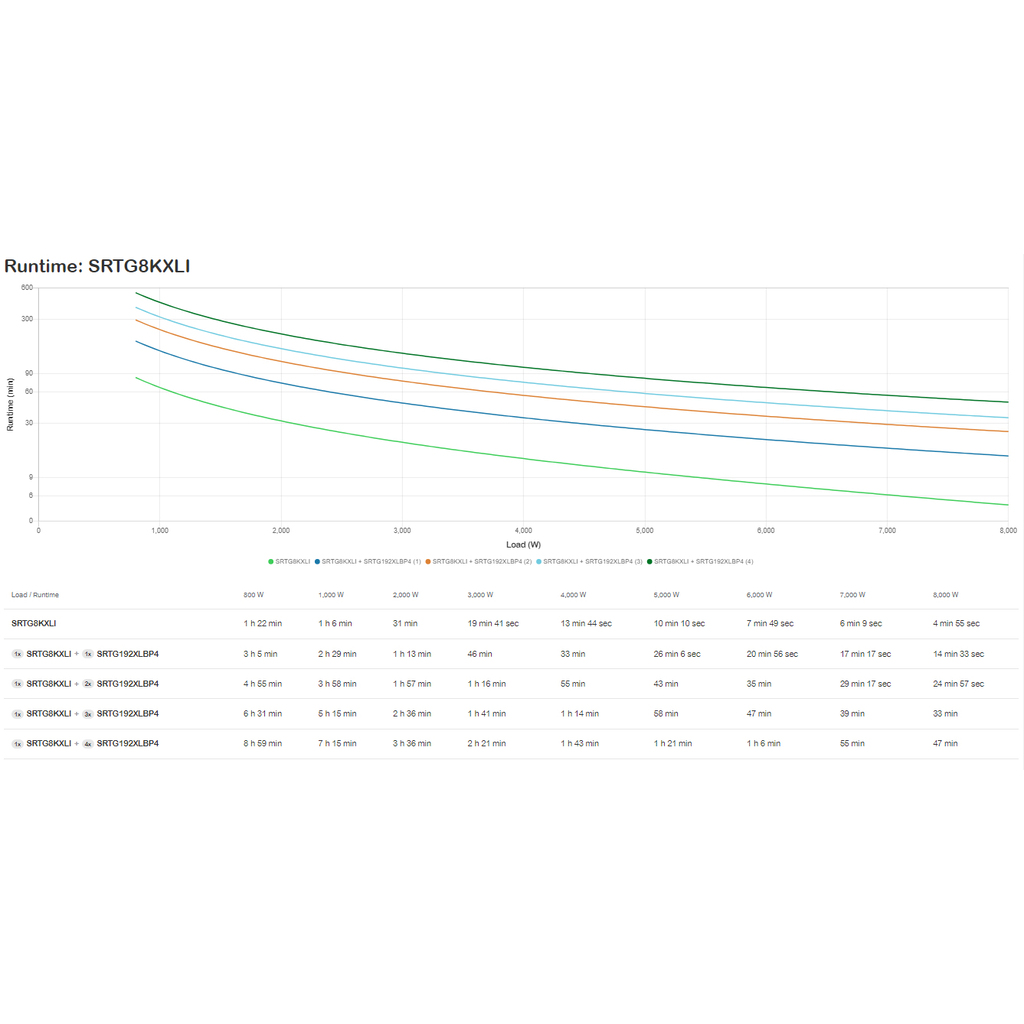

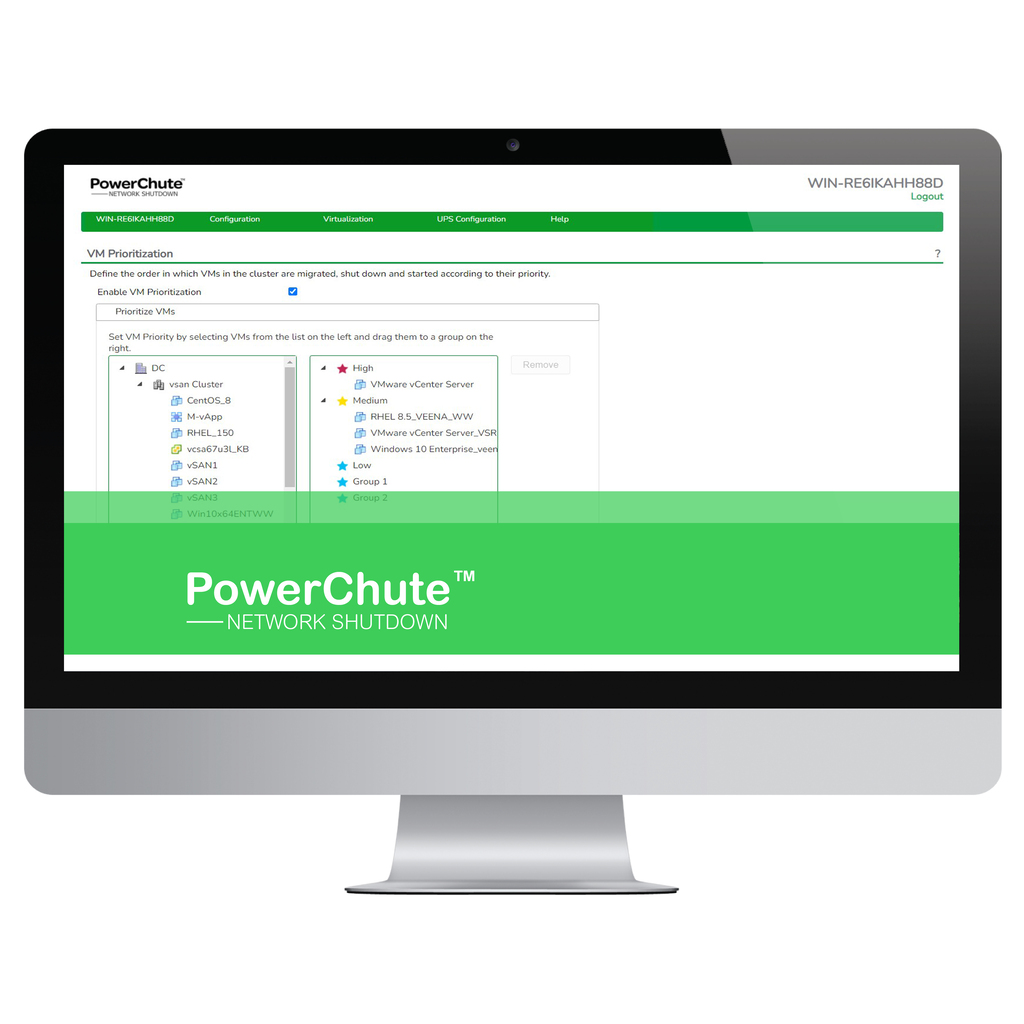

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13, 1x IEC 320 C19 and Hard wire 3-wire (H+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Additional information
| Weight | 132 lbs |
|---|---|
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Input frequency | 40/70 Hz |
| Audible alarm(s) | Yes |
| Battery recharge time | 4 h |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 2011.68 m |
| Non-operating altitude | 0 – 15240 m |
| Certification | CE, EN/IEC 62040-1 |
| Weight | 81.1 kg |
| Package weight | 83.1 kg |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |

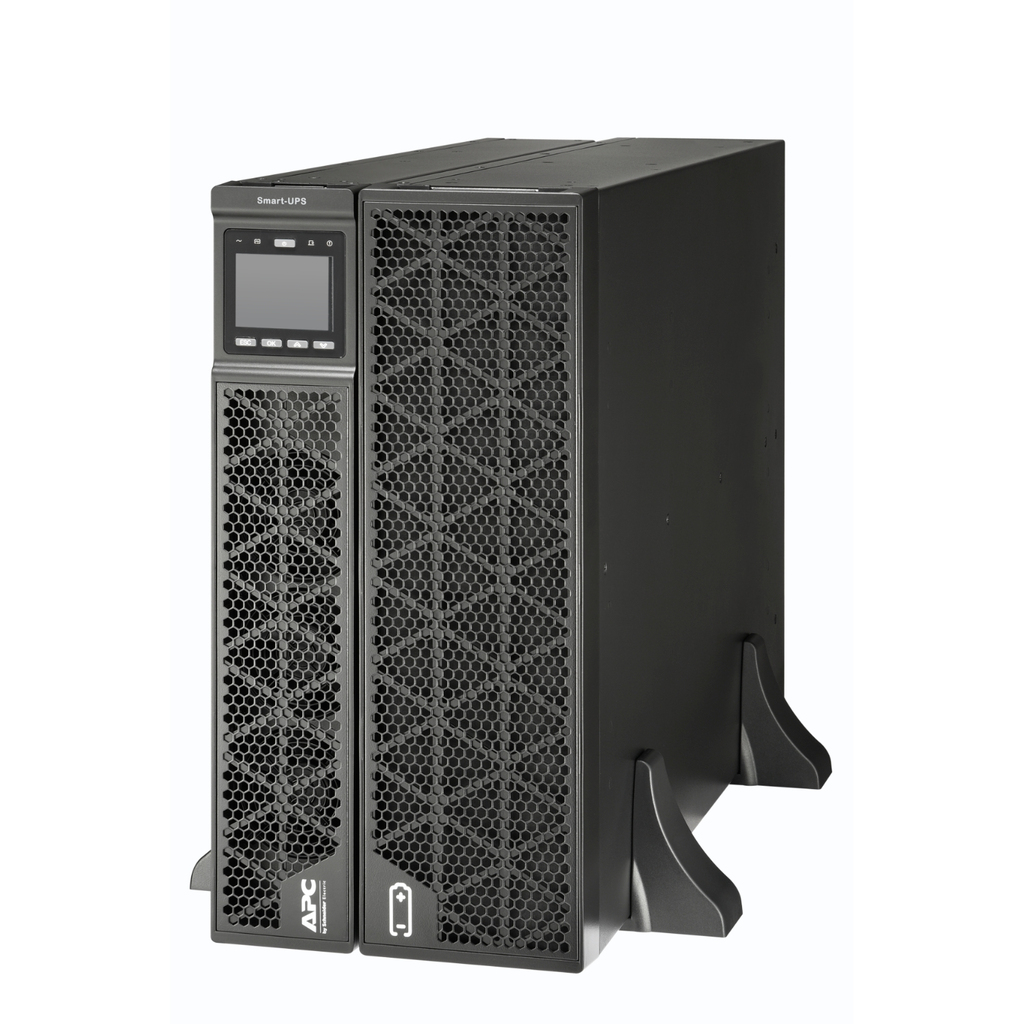

| Form factor | Rackmount/Tower |
| Width | 440 mm |
| Depth | 620 mm |
| Height | 217 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Noise level | 55 dB |
| Auto-restart | Yes |

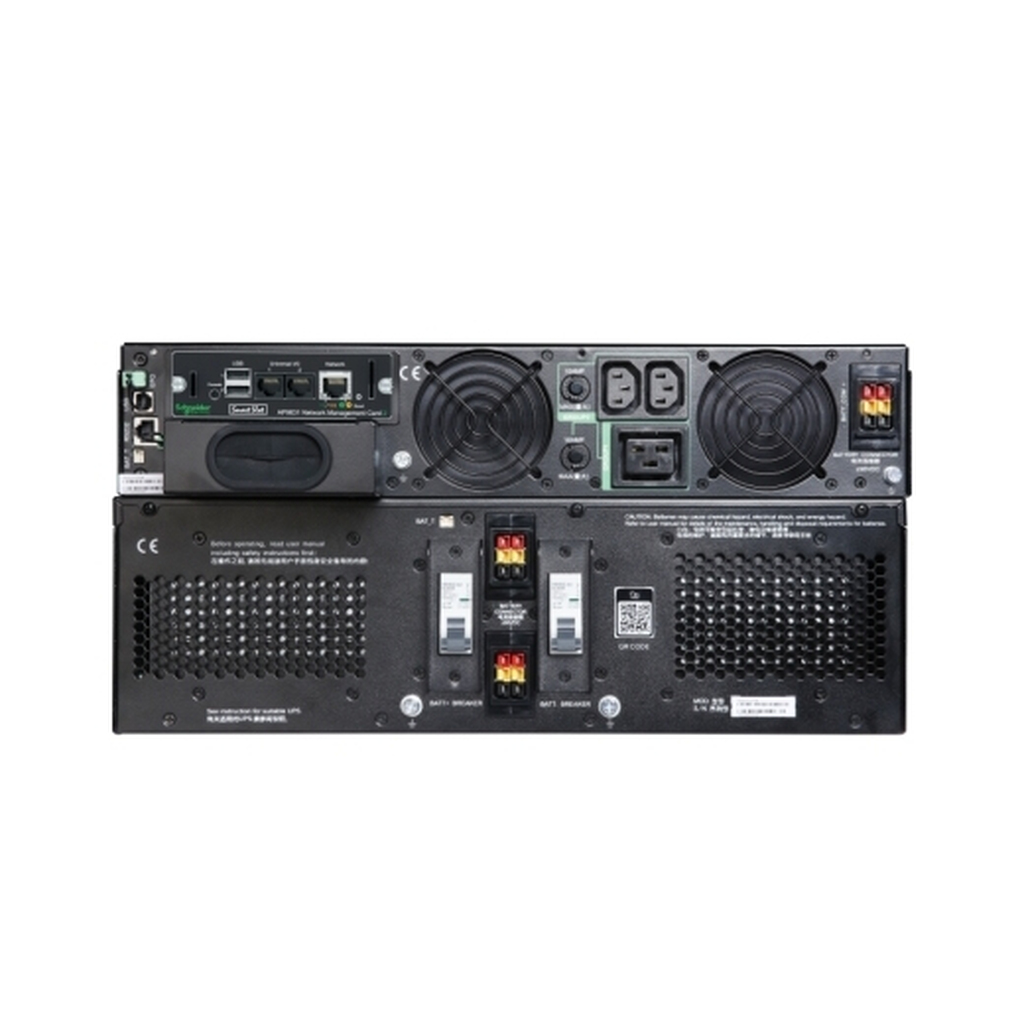

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 3 AC outlet(s) |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |

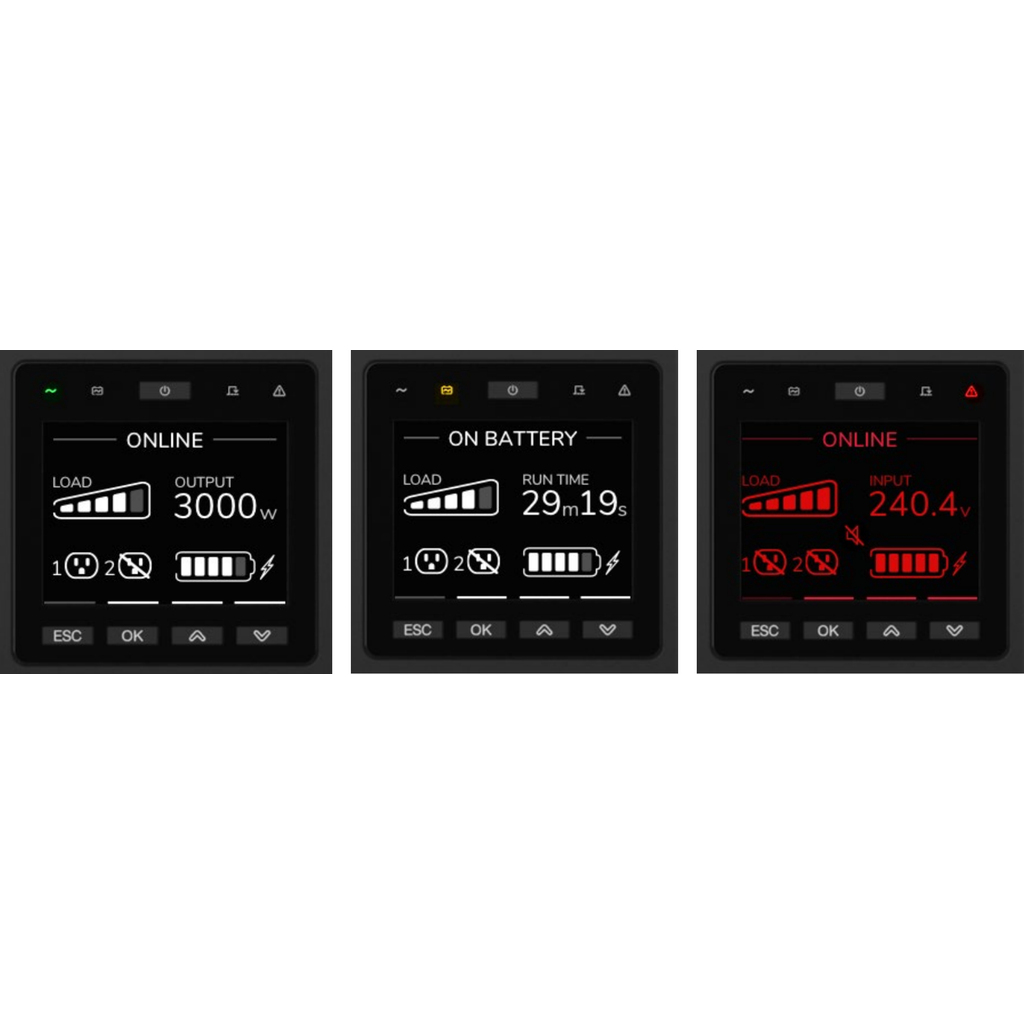

| Display type | LCD |
| LED indicators | Yes |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| Output frequency | 50/60 Hz |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Battery voltage | 96 V |
| International Protection (IP) code | IP20 |
| USB port | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Number of batteries supported | 2 |
| Emergency Power Off (EPO) connector | Yes |
