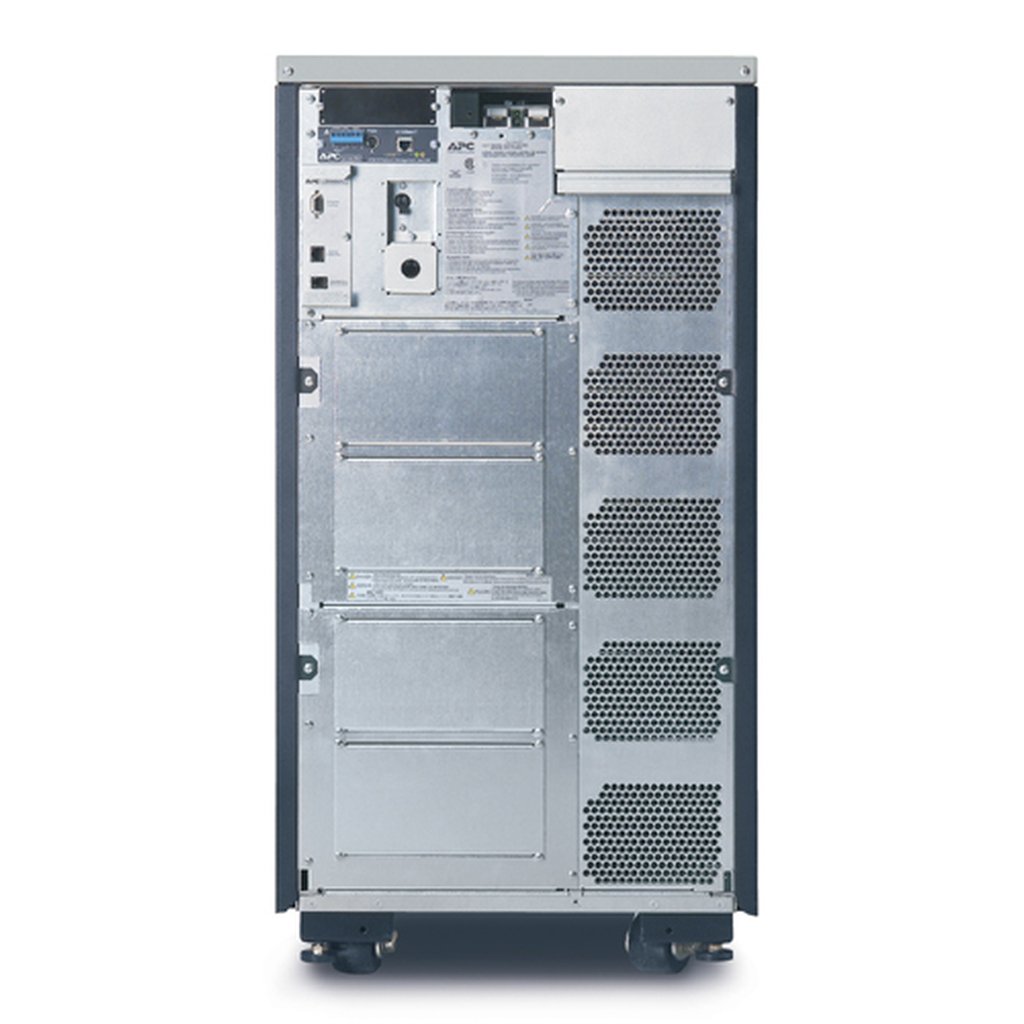

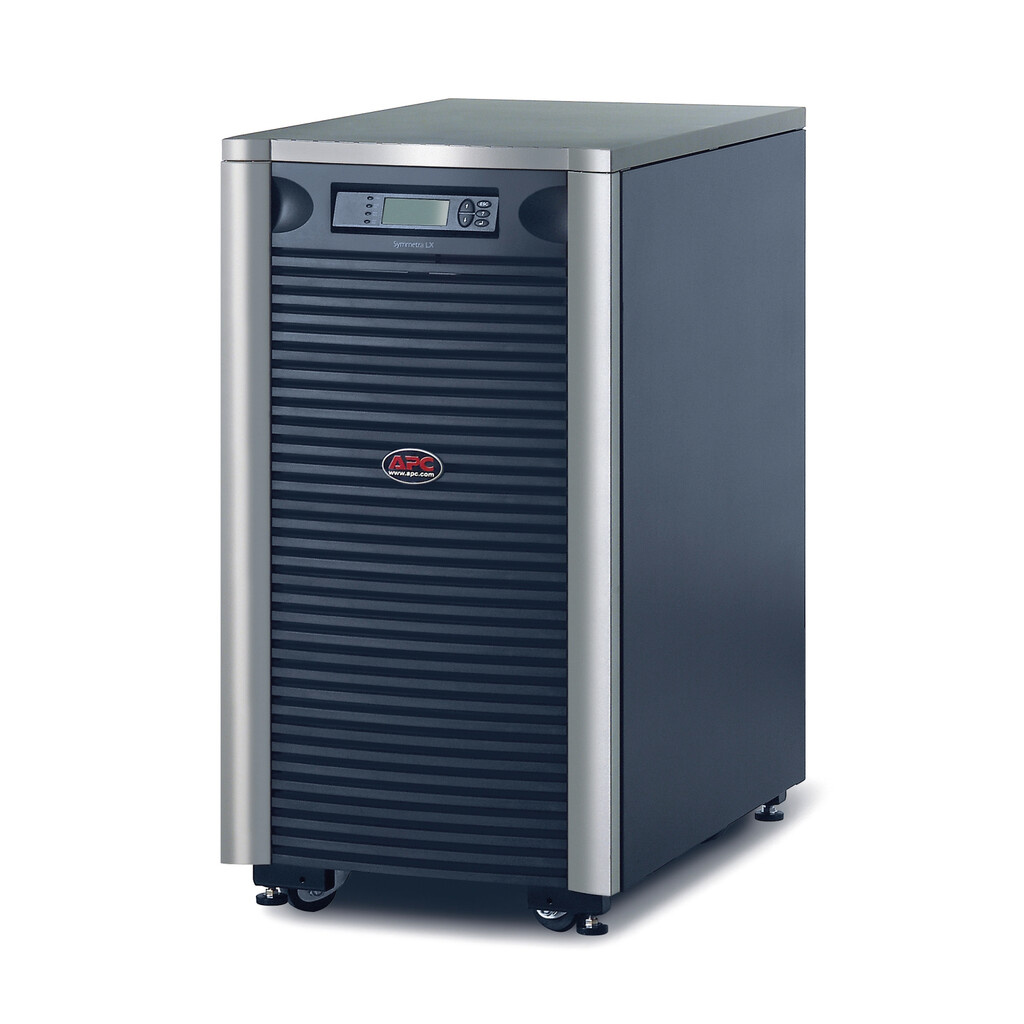

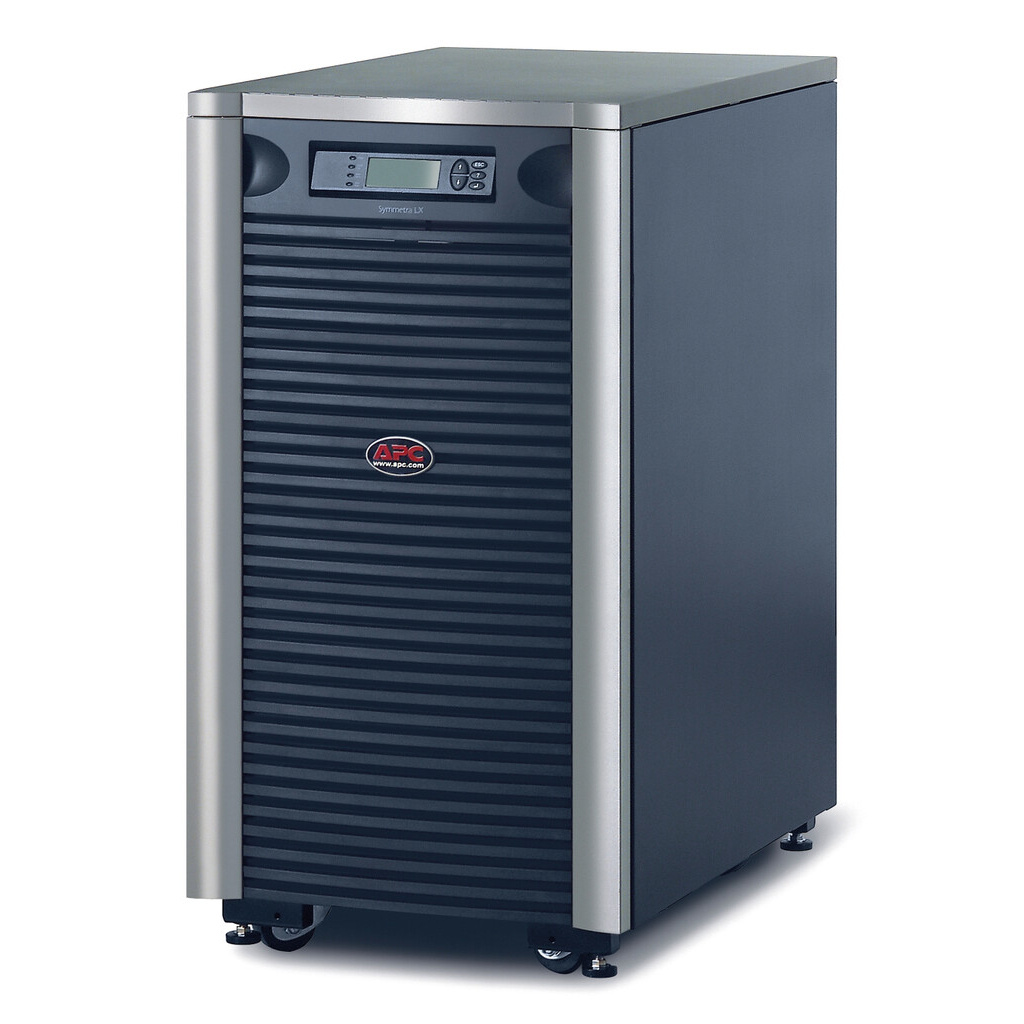

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V
Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
“High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.”
Additional information
| Weight | 247.76 lbs |
|---|---|
| Output power capacity | 8 kVA |
| Output power | 5600 W |
| Emergency Power Off (EPO) | Yes |
| Battery recharge time | 3 h |
| Product colour | Black, Silver |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Certification | C-Tick; CE; GOST; VDE |
| Weight | 219.6 kg |
| Harmonized System (HS) code | 85078000 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G)<br /> |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 480 x 730 x 940 mm |
| Compliance certificates | RoHS, REACH, WEEE |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 937 mm |
| Waveform | Sine |
| Number of output phases | 1 |
| AC outlet types | Hardwire |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.2 min |
| Total carbon footprint (kg of CO2e) | 30634.4781887309 |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Number of input phases | 1 |
| Output voltage | 220 V |
| Country of origin | Philippines |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Replacement battery cartridge | SYBT5 |
| I/O ports | Available Smart Slot Interface Quantity – 1 <br />Pre-Installed SmartSlot Cards – AP9619<br /> |
| Three-phase input voltage supported | 220,380,400,415 V |
| Single-phase input voltage supported | 240,220 V |
| Packaging recycled materials | Recycled cardboard |
| Sustainable packaging | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Customs product code (TARIC) | 8504409590 |
| Mounting | front |
| Battery replacement accessibility | End-user |
| SCIP number | 2d54512b-134b-4bf3-ab6e-849ecf1e3919 |
| Input current (max) | 36 A |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
