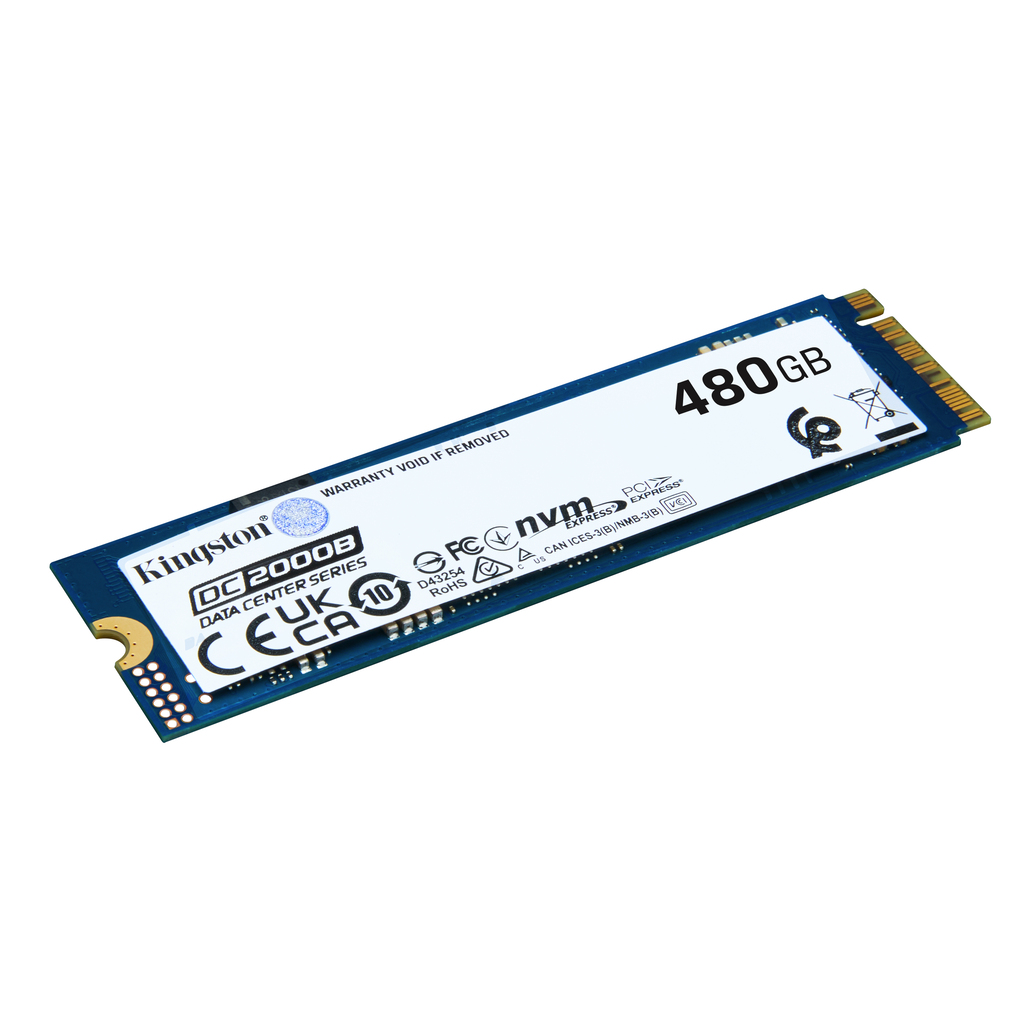

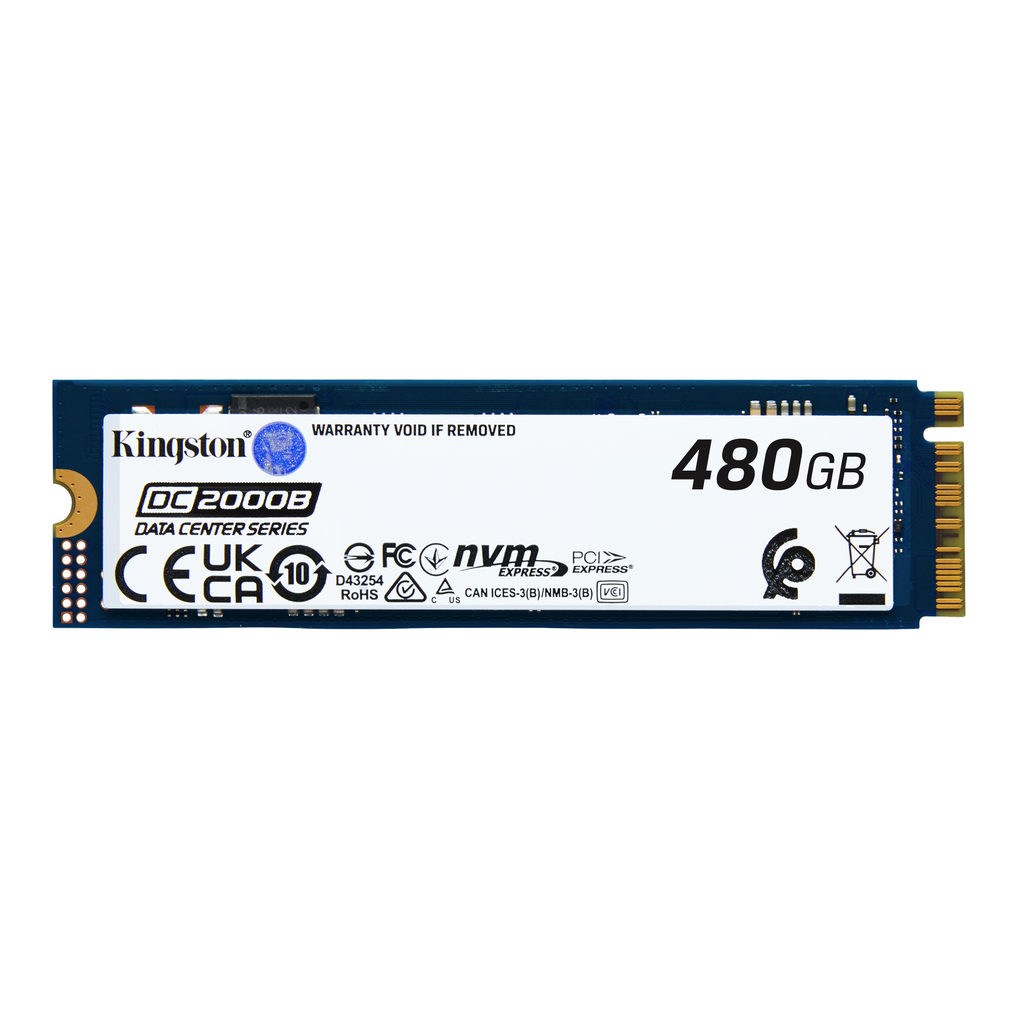

Kingston Technology 480G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
480G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

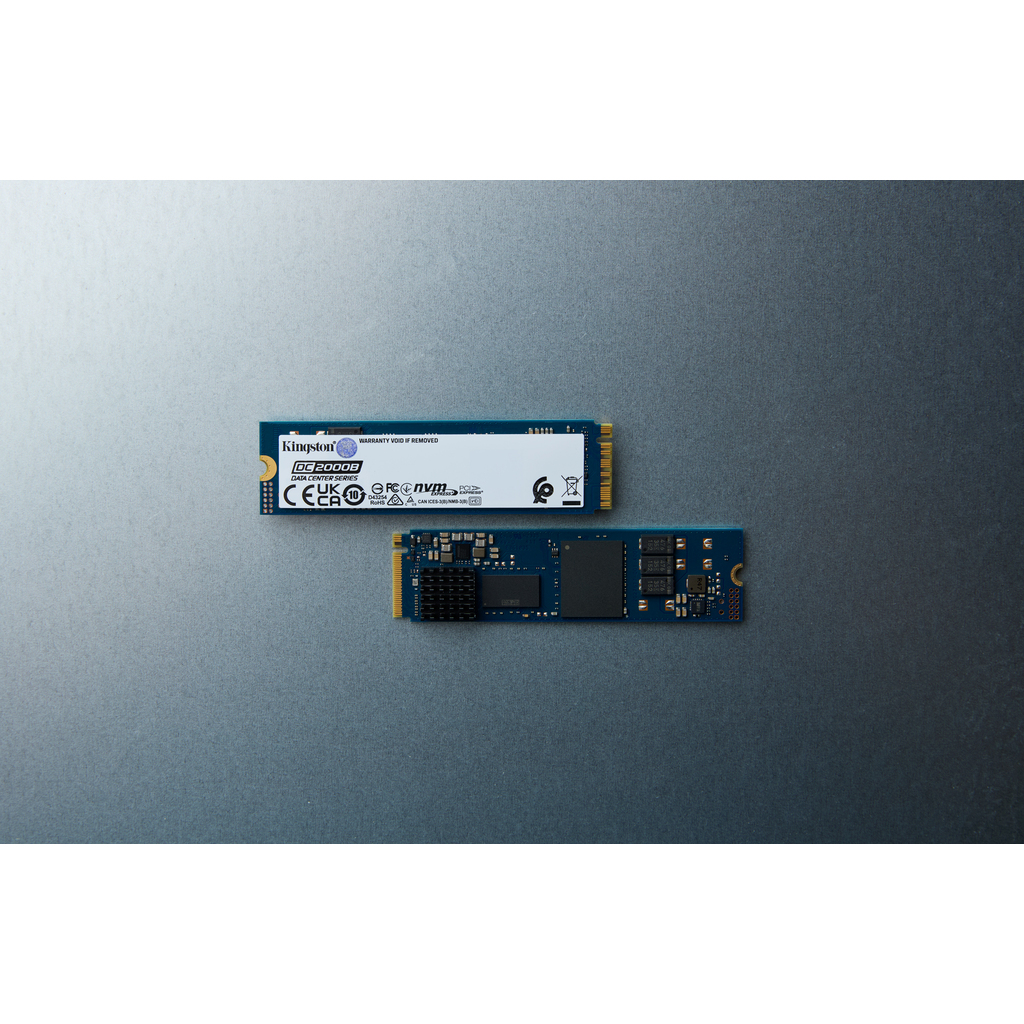

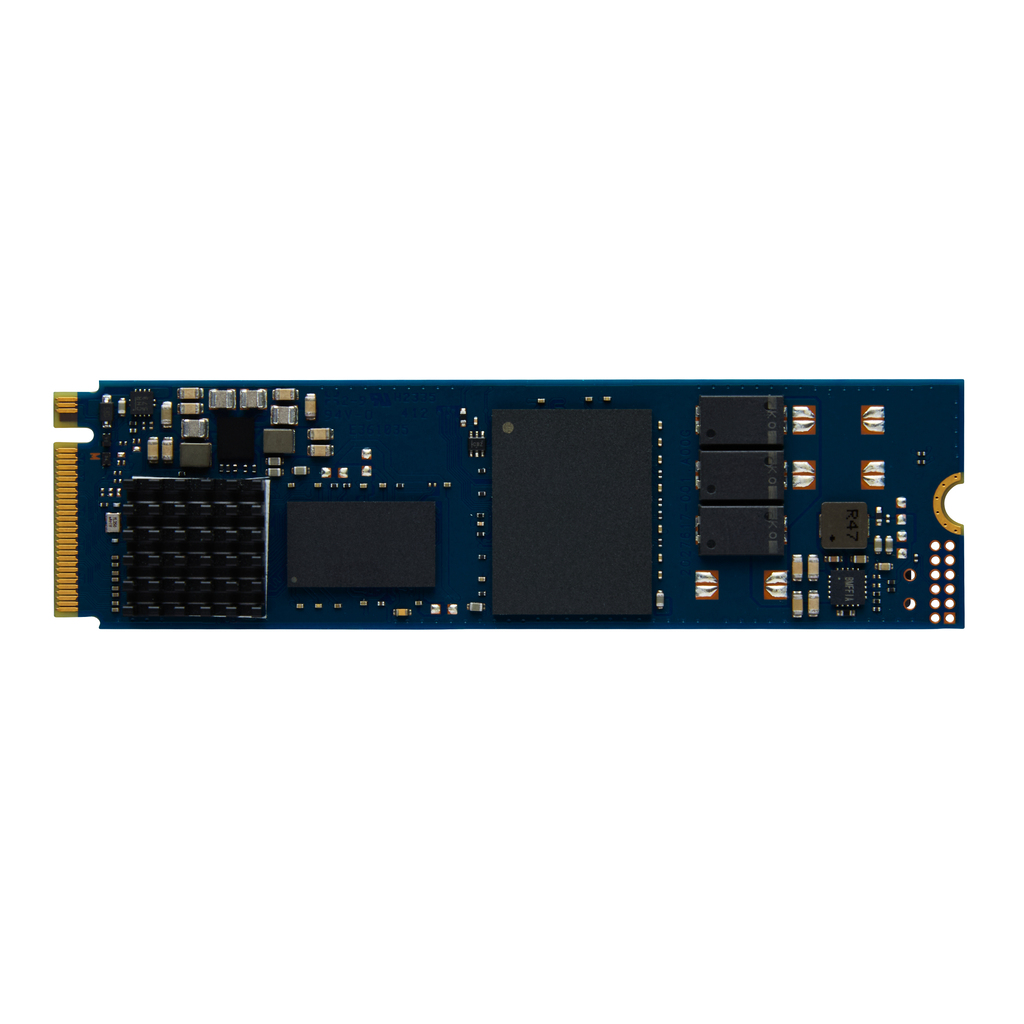

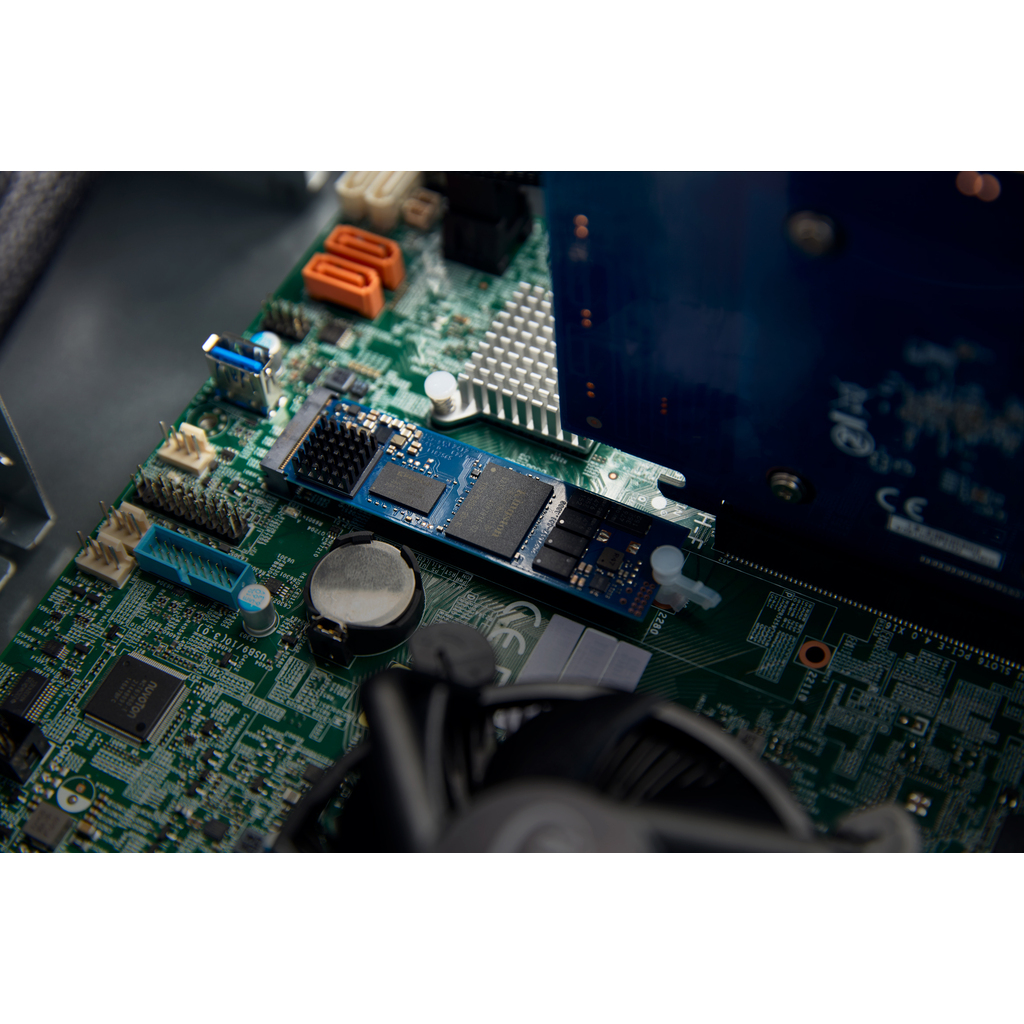

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4×4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4×4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Additional information
| Weight | 0.02 lbs |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Component for | Server |
| NVMe | Yes |
| Memory type | 3D TLC |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7000 MB/s |
| Write speed | 800 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 350 |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 8.9 mm |
| Weight | 10 g |
| Package width | 129.5 mm |
| Package depth | 14.2 mm |
| Package height | 184.2 mm |
| Package weight | 33.77 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Country of origin | China, Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 280.62 g |
| Products per master (outer) case | 6 pc(s) |
| Random read (4KB) | 530000 IOPS |
| Random write (4KB) | 32000 IOPS |
| Read latency | 70 µs |
| Write latency | 29 µs |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| H/W PLP function | Yes |
| Drive writes per day (DWPD) | 0.4 |
| Power consumption (read) | 3.29 W |
| Power consumption (write) | 5.77 W |
| Average power consumption (read) | 3.22 W |
| Average power consumption (write) | 5.6 W |
| Non-operating vibration | 20 G |
| Cooling type | Heatsink |
| Use conditions | Server/Enterprise |
