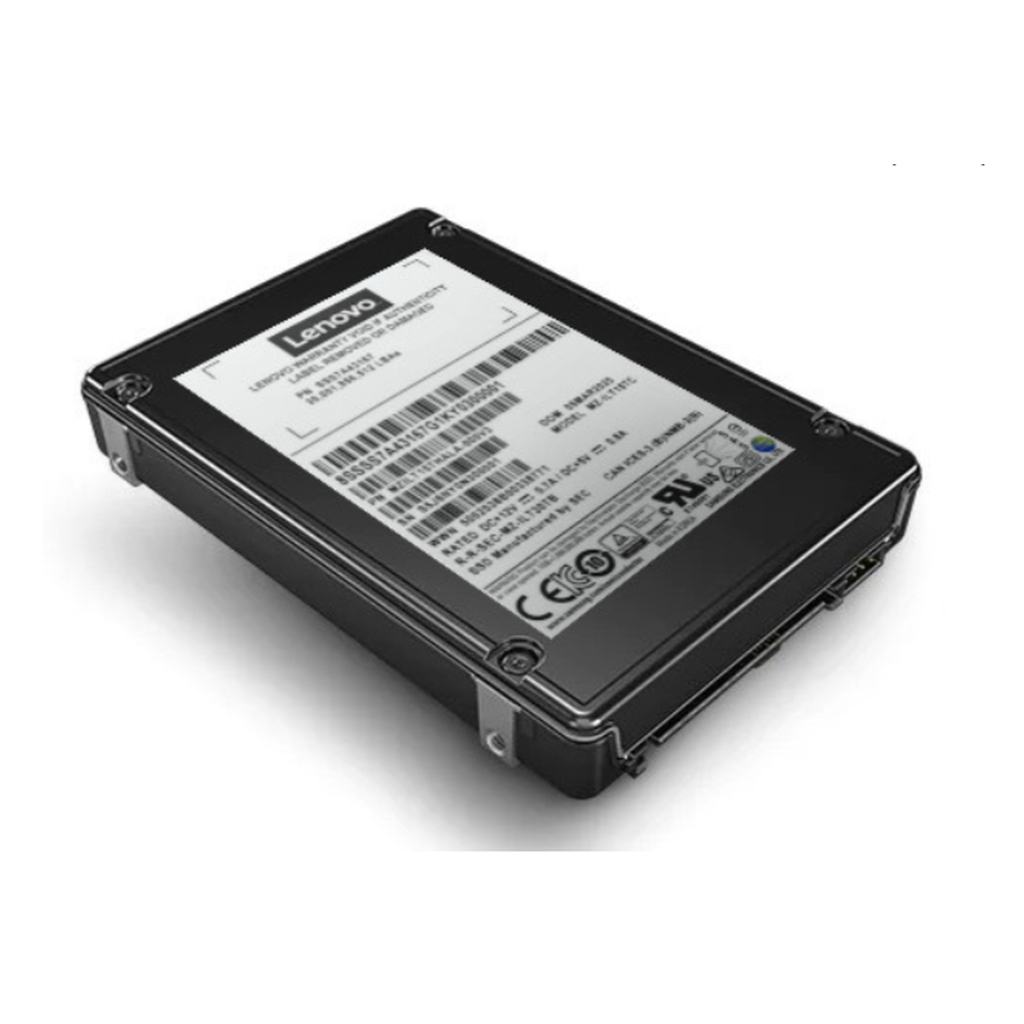

Lenovo 4XB7A80319 internal solid state drive 1.92 TB 2.5″ SAS V-NAND TLC
ThinkSystem 2.5″ PM1653 1.92TB Read Intensive SAS 24Gb HS SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.
Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.
Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.
Additional information
| Weight | 0.3 lbs |
|---|---|
| SSD capacity | 1.92 TB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Component for | Server/workstation |
| Data transfer rate | 24 Gbit/s |
| NVMe | No |
| Memory type | V-NAND TLC |
| Read speed | 2100 MB/s |
| Write speed | 2000 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 160 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Random read (4KB) | 420000 IOPS |
| Random write (4KB) | 95000 IOPS |
| Read latency | 120 µs |
| Write latency | 45 µs |
| S.M.A.R.T. support | Yes |
| Power consumption (read) | 11.5 W |
| Power consumption (write) | 14.7 W |
| Compliance certificates | RoHS |
| Certification | UL<br />TUV<br />FCC<br />IC<br />CB<br />CE Mark<br />C-Tick Mark<br />BSMI (Taiwan)<br />KCC (Korea EMI)<br />VCCI |
| Operating relative humidity (H-H) | 5 – 95% |
| Hardware encryption | Yes |
| Hot-swap | Yes |
| Maximum operating altitude | 4572 m |
