Neomounts WL95-800BL1 Videowall wall mount 42-70″ – pop-out – max 35 kg
Neomounts WL95-800BL1 Videowall wall mount – 42-70″ – max 35 kg – VESA 200×200-600×400 – d 7,8-26,6 cm – push-to-pop-out – micro adjustment – landscape and portrait – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

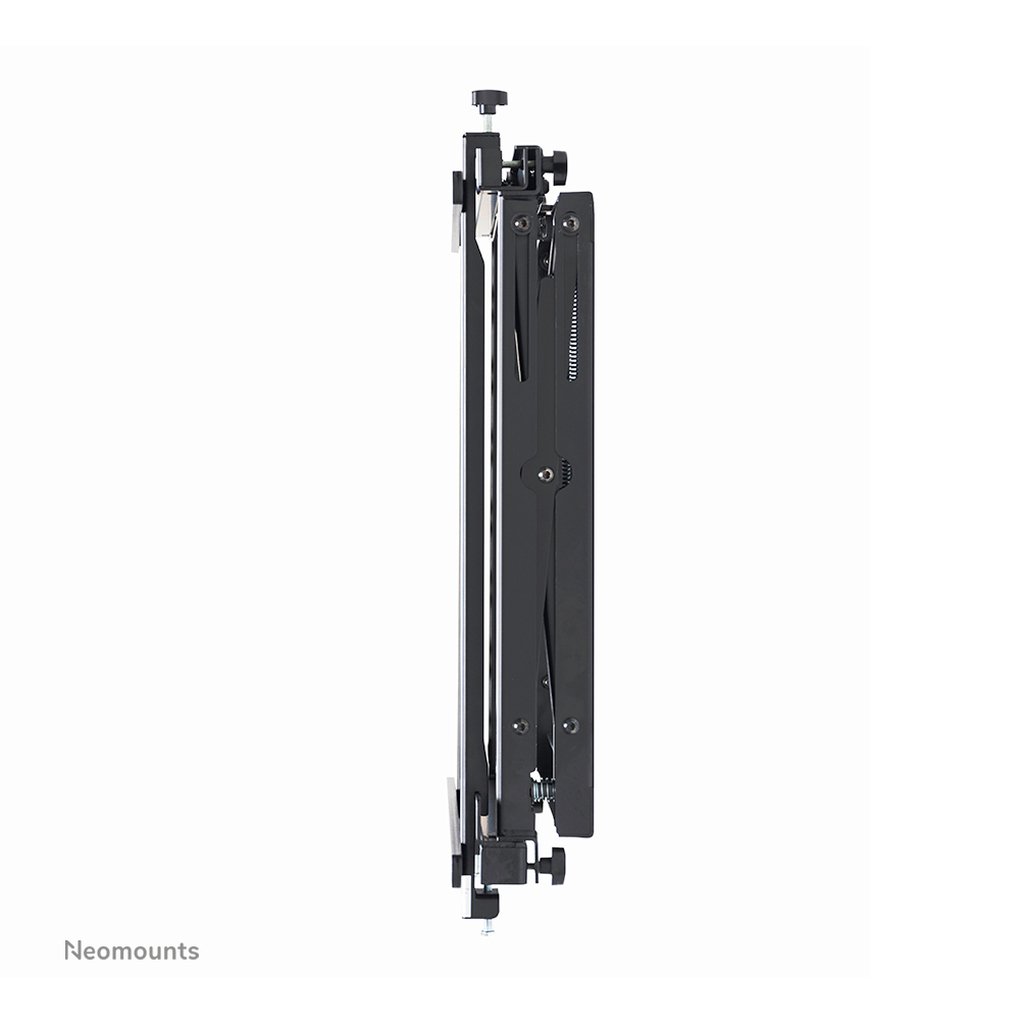

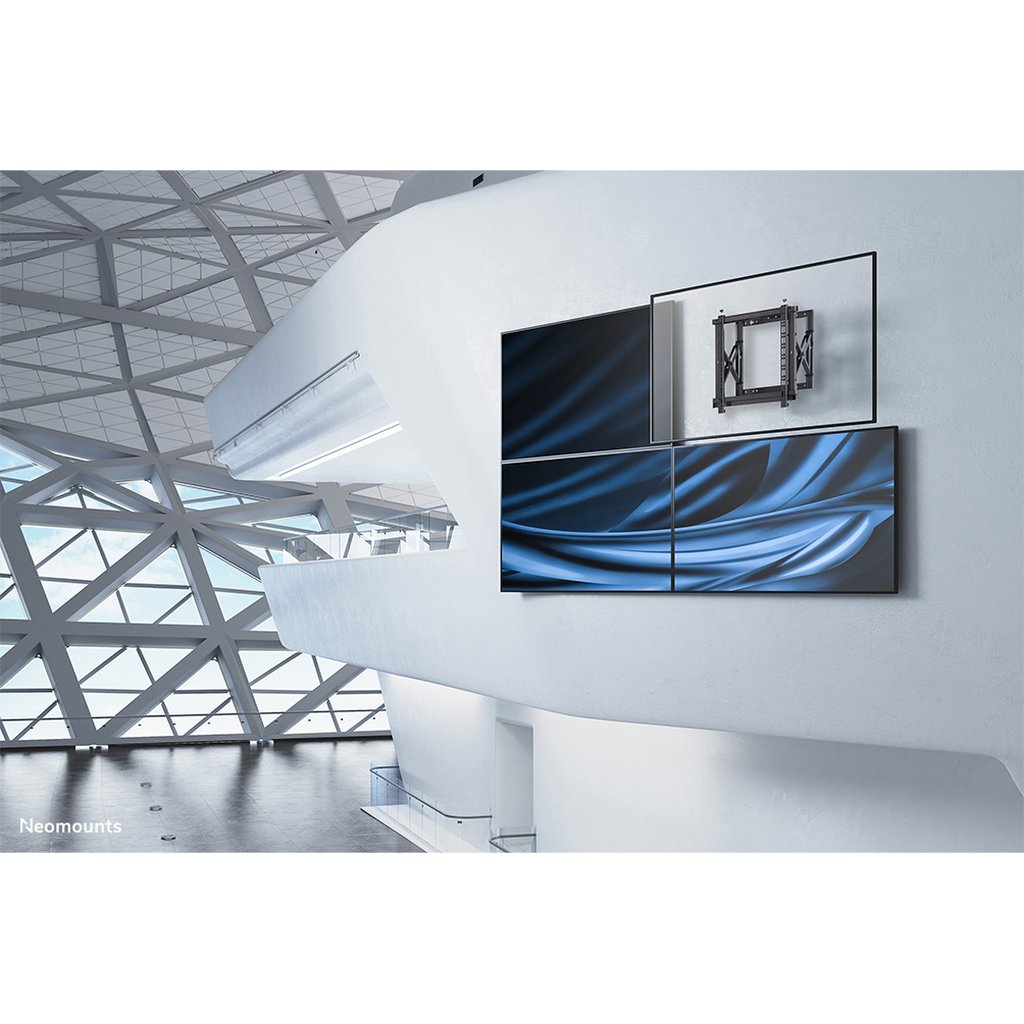

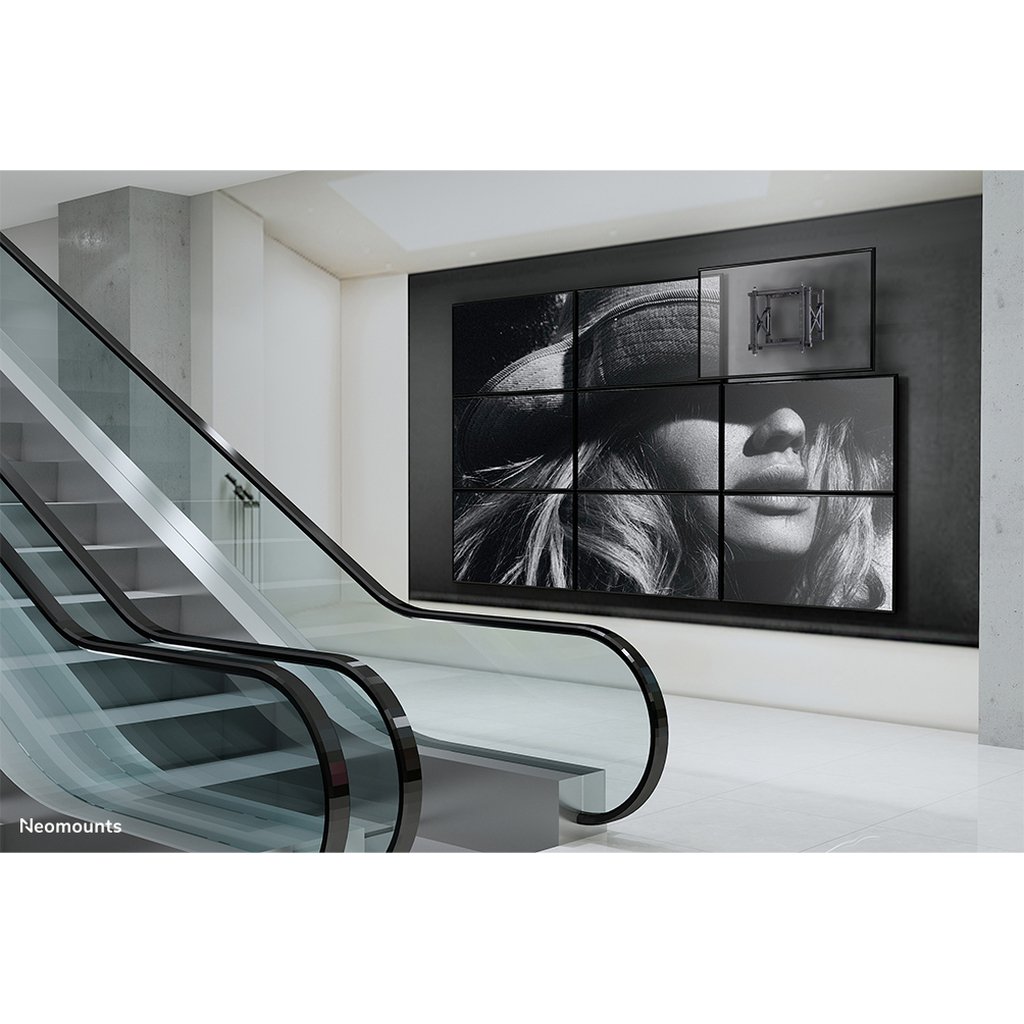

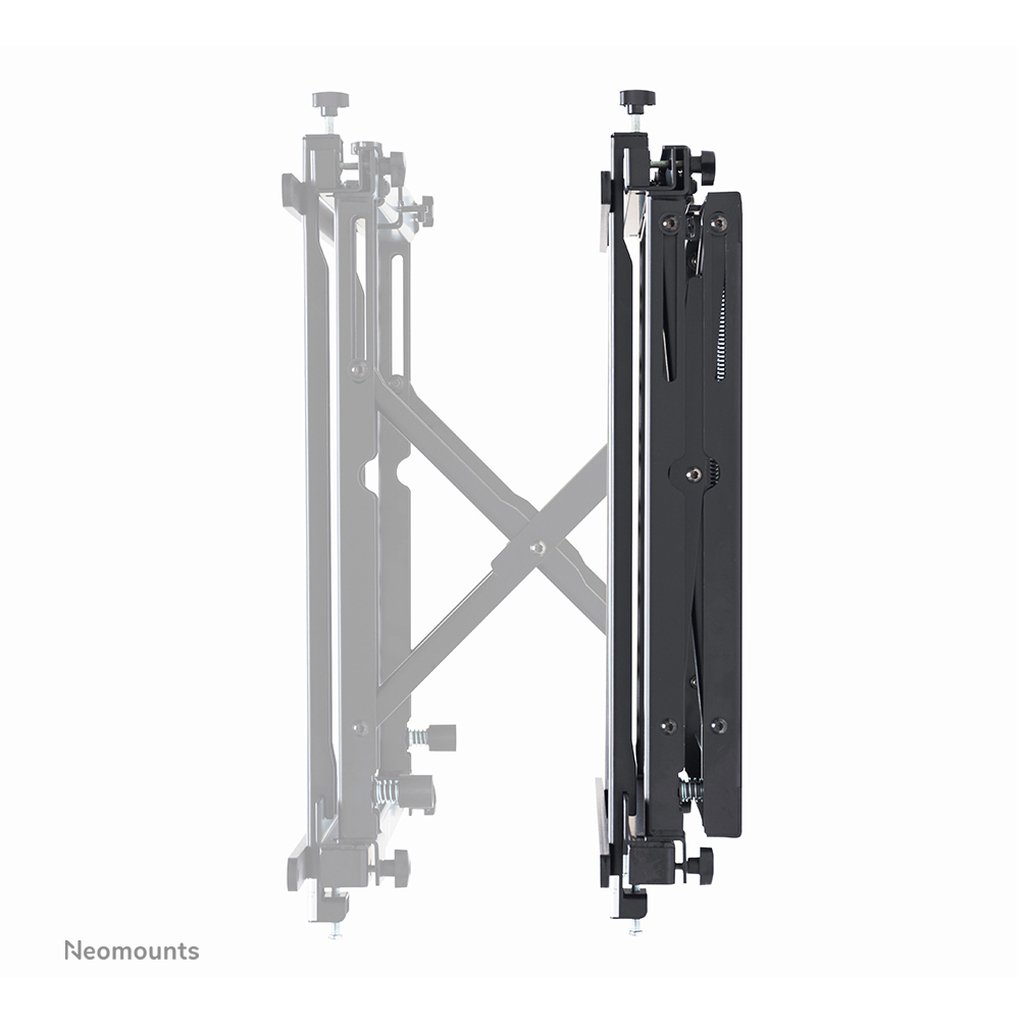

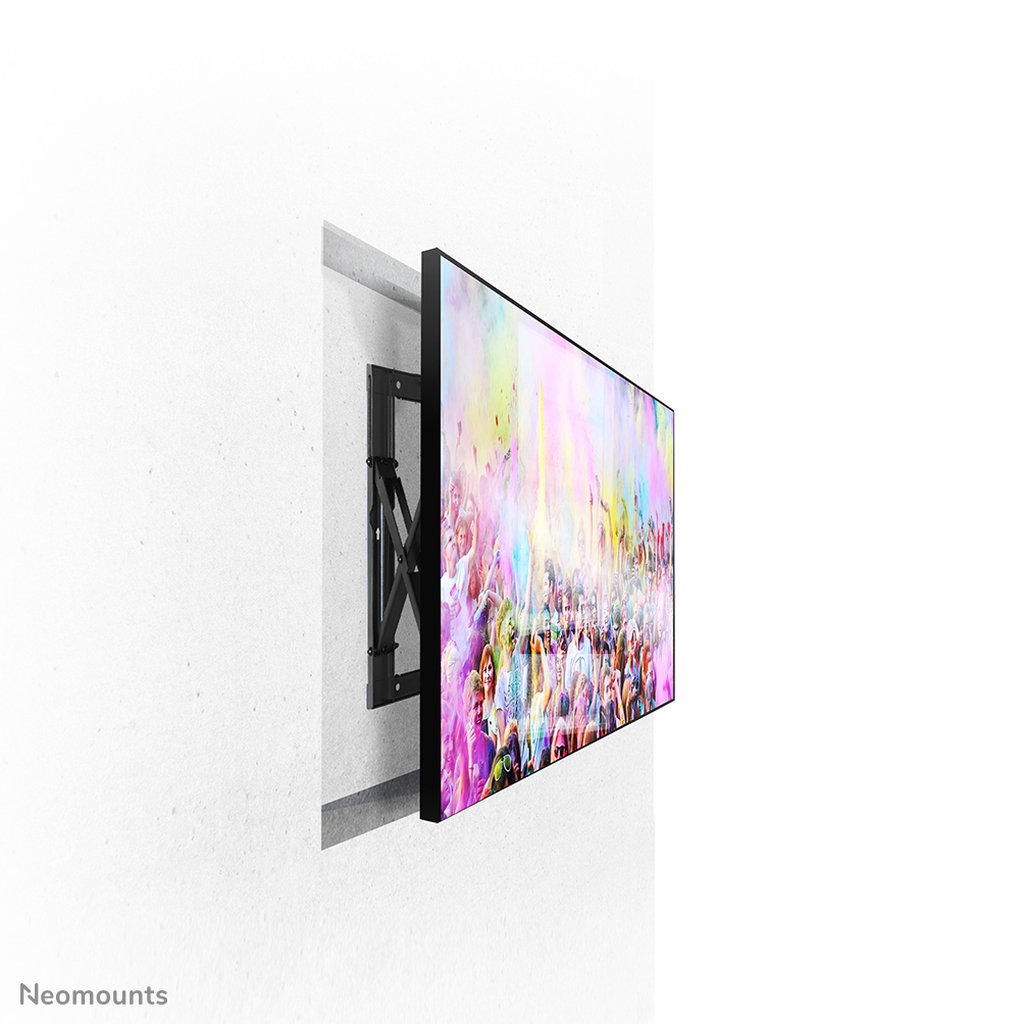

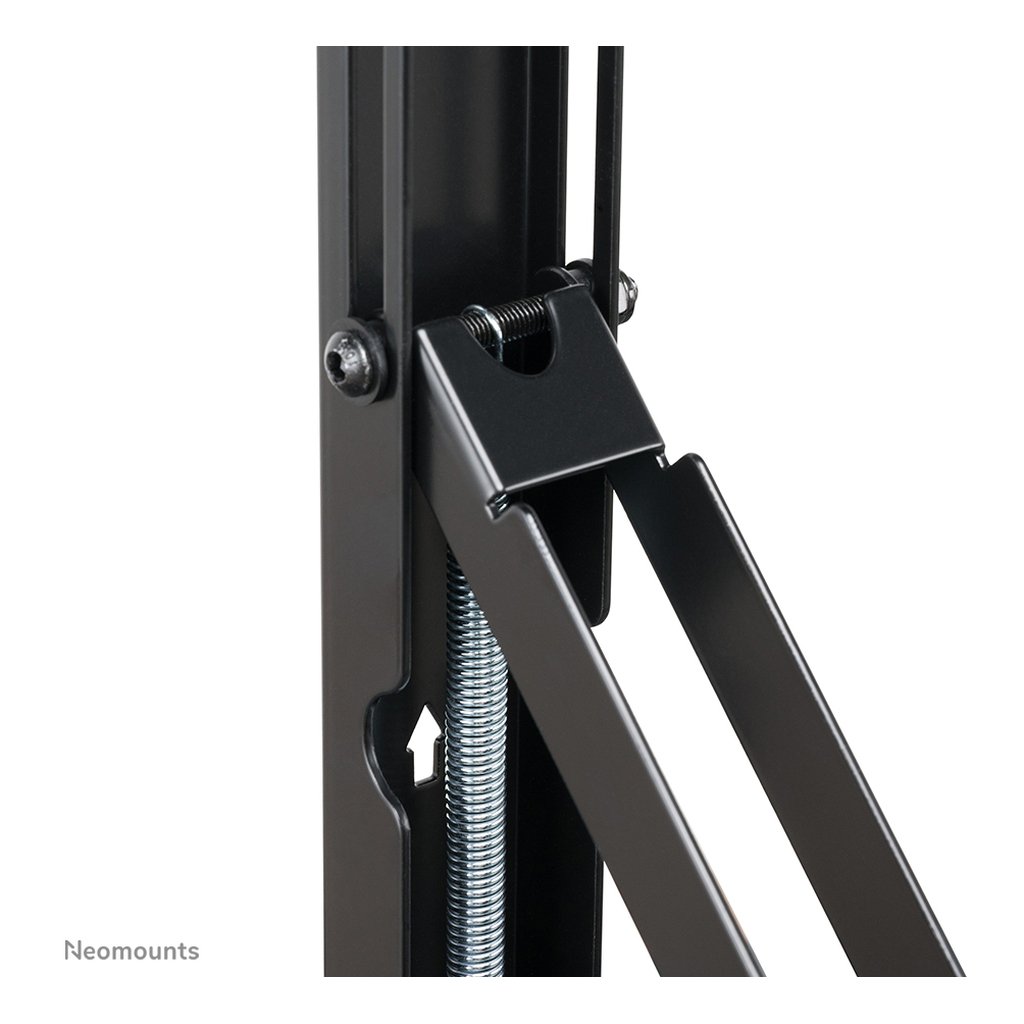

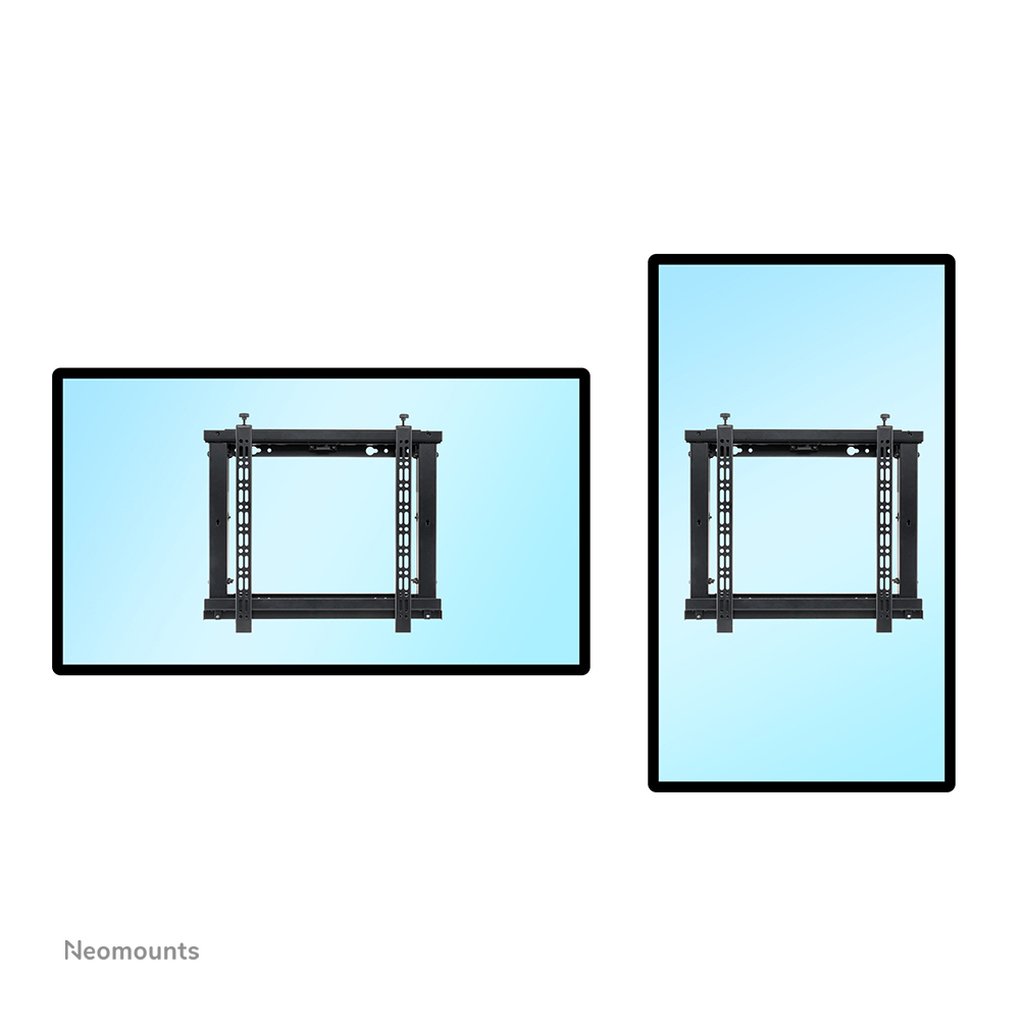

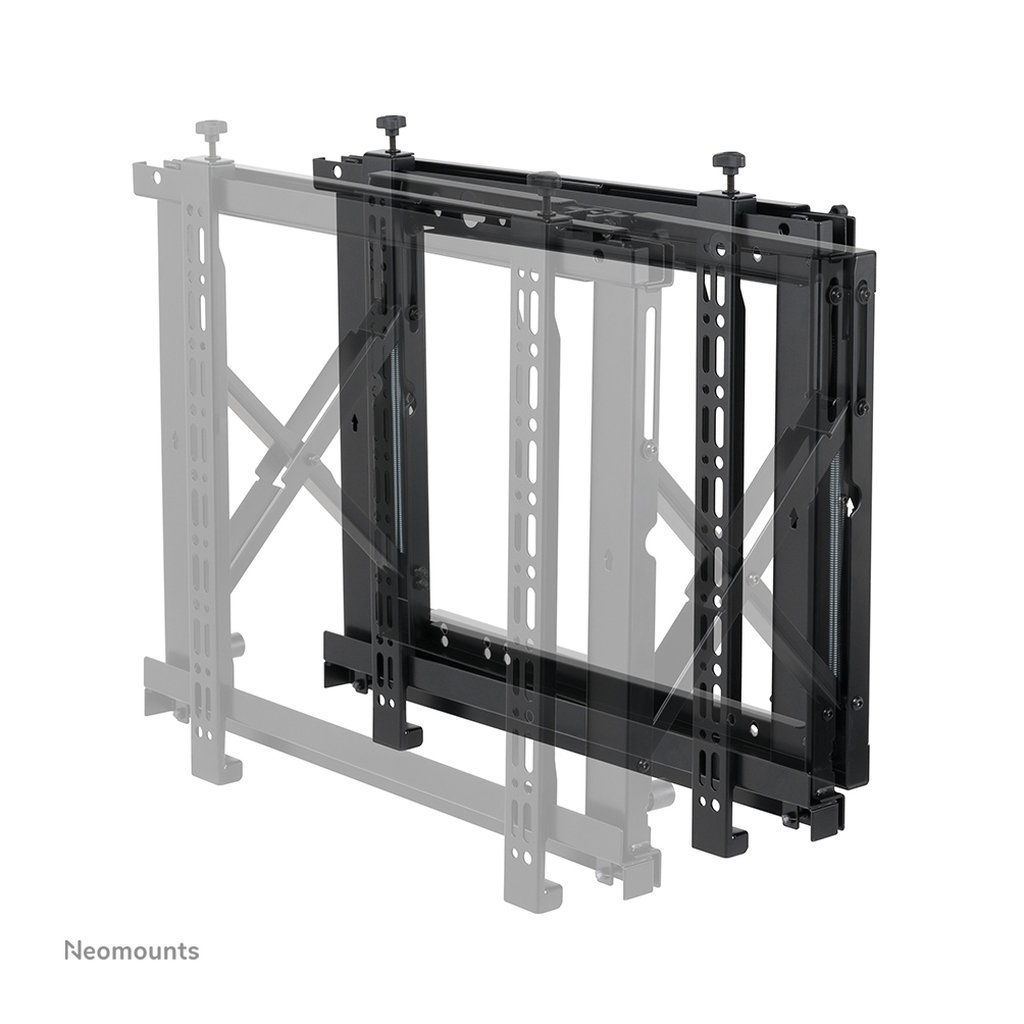

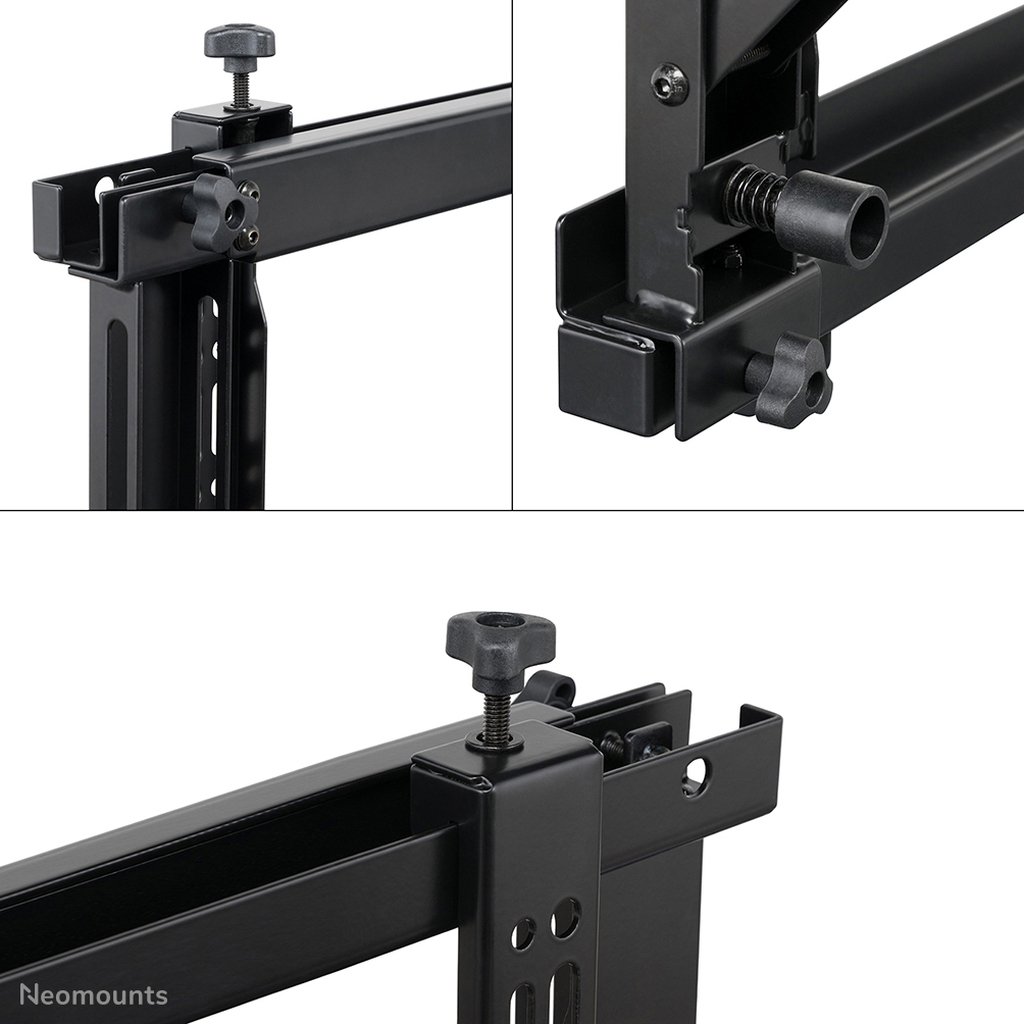

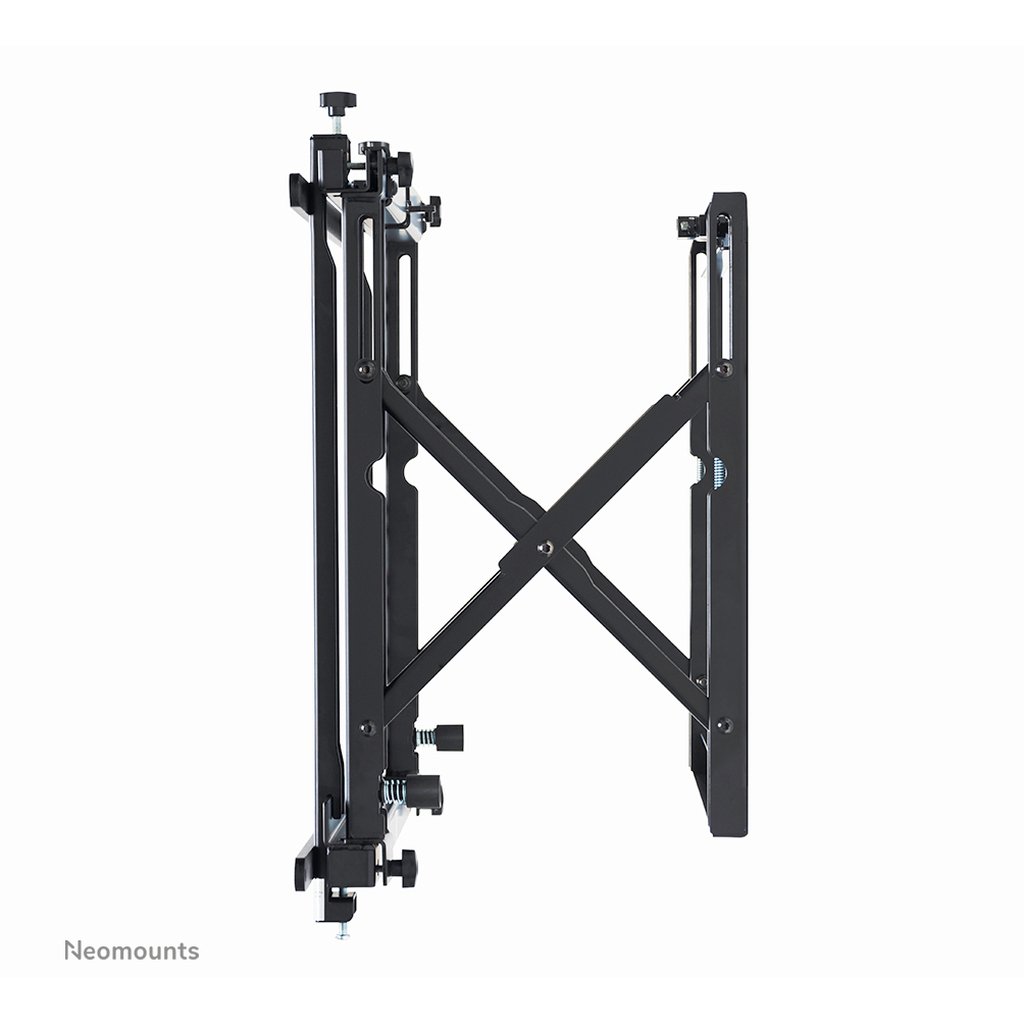

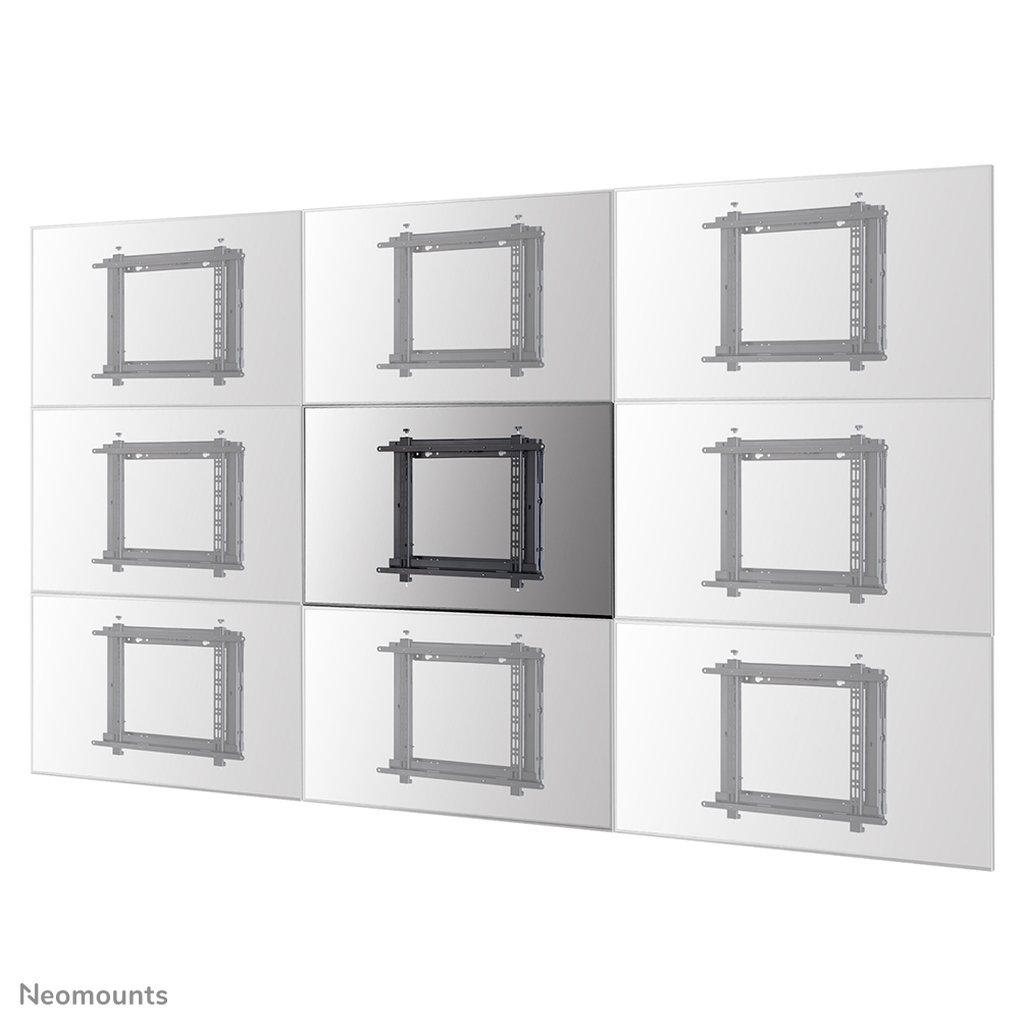

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70″. The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

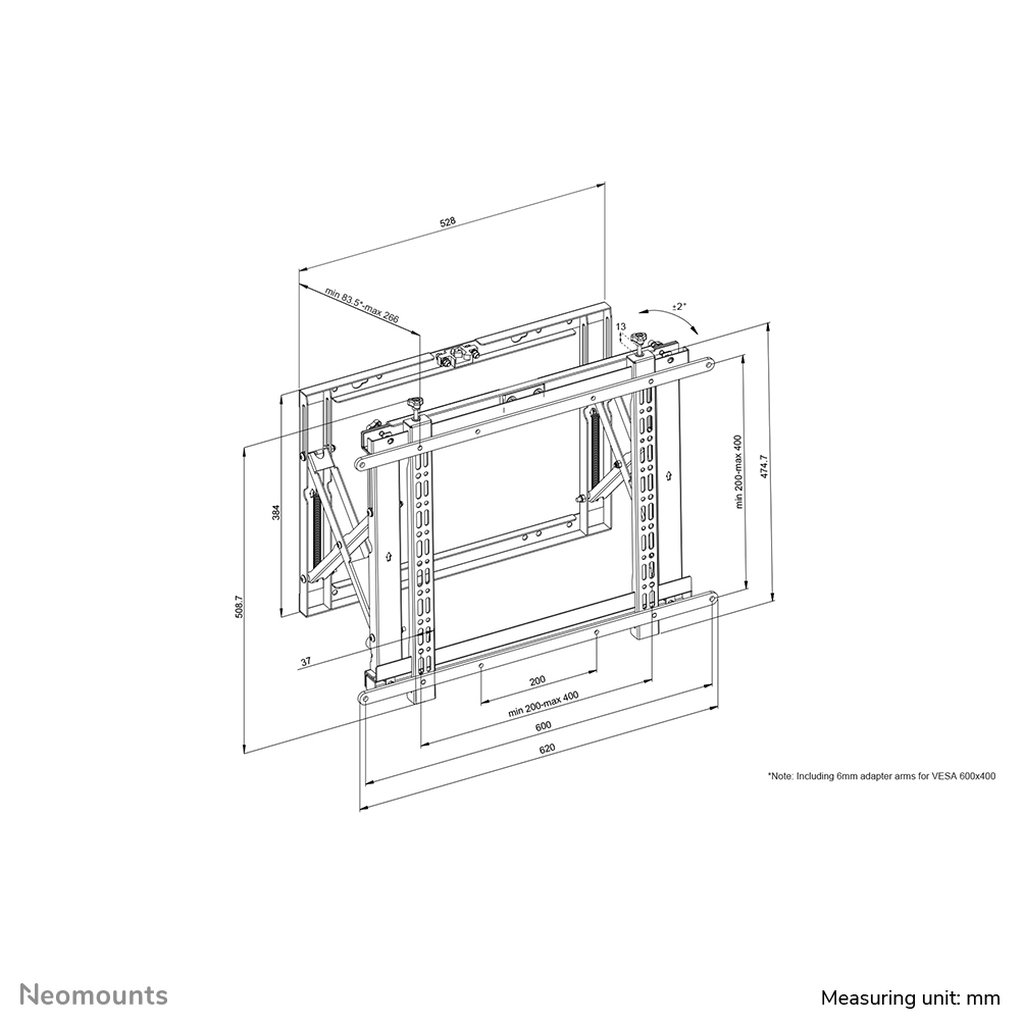

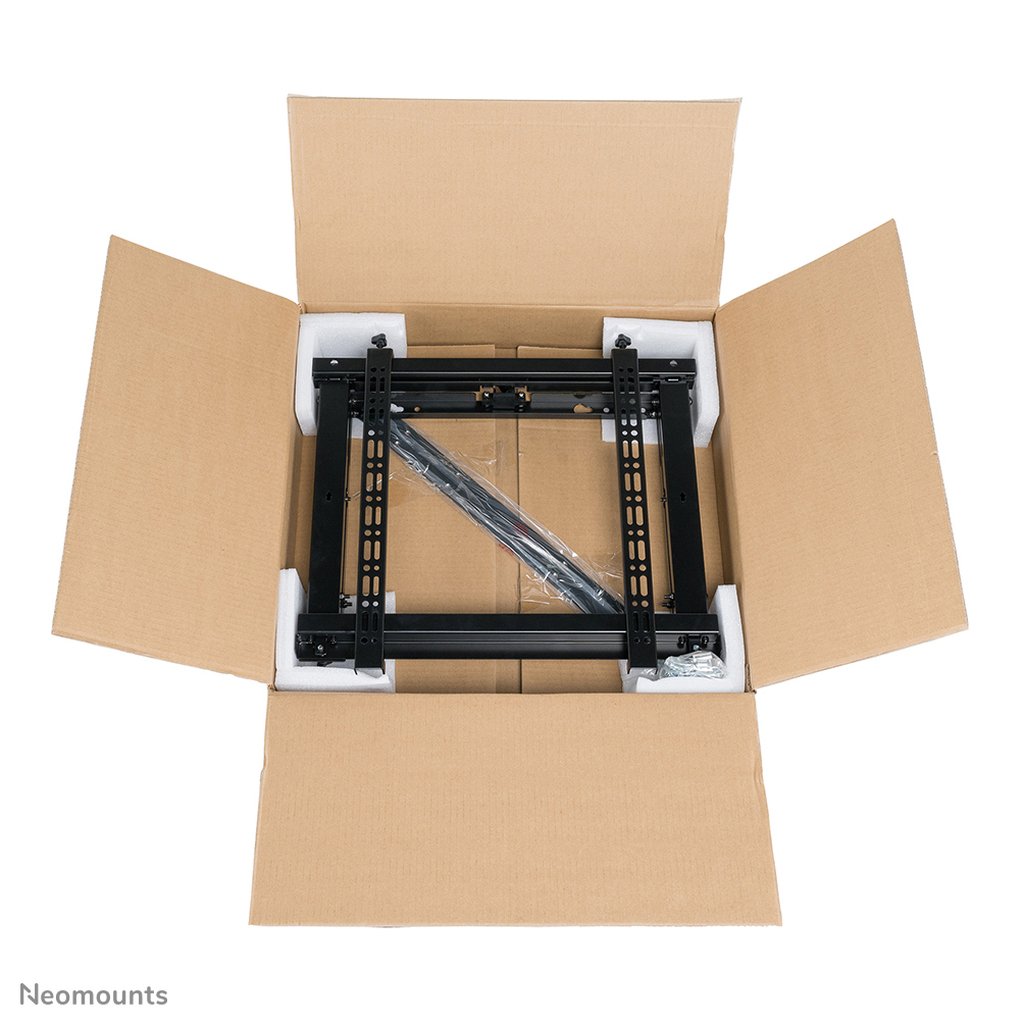

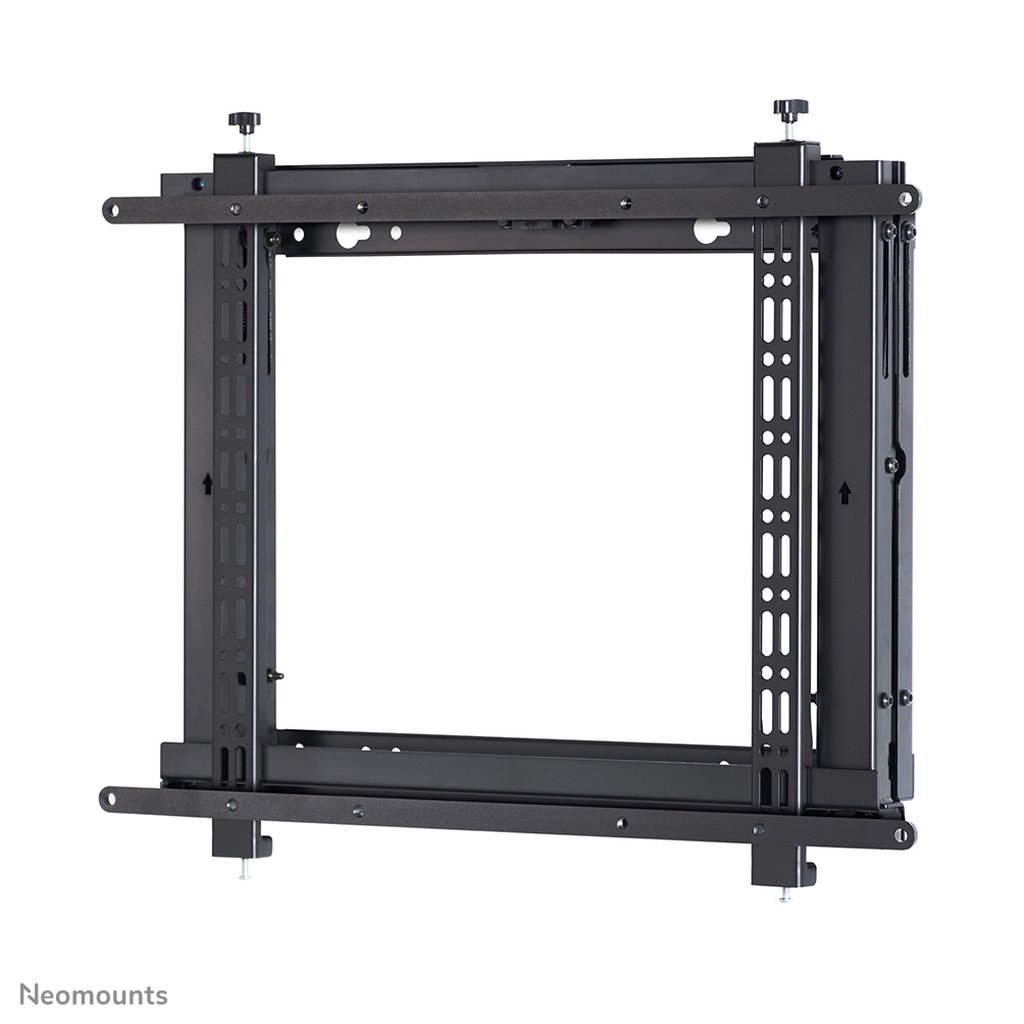

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200×200 up to 600×400 mm (landscape) or 400×600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
Additional information
| Weight | 10 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Maximum weight capacity | 35 kg |
| Maximum VESA mount | 600 x 400 mm |
| Minimum screen size | 106.7 cm (42") |
| Product colour | Black |
| Housing material | Steel |
| Width | 620 mm |
| Depth | 84 mm |
| Height | 510 mm |
| Weight | 7.72 kg |
| Package width | 570 mm |
| Package depth | 110 mm |
| Package height | 620 mm |
| Package weight | 9.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Height adjustment | 1.3 cm |
| Minimum VESA mount | 200 x 200 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Height adjustment type | Manual |
| Swivelling | Yes |
| Cable management | No |
| Tilt adjustment | Yes |
| Depth adjustment | 4 mm |
| Width adjustment | 4 cm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 17.2 cm |
| Accepts padlock | No |
| Package type | Box |
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Warranty period | 5 year(s) |
| Package net weight | 9.8 kg |
| Country of origin | China |
| Master (outer) case net weight | 8.5 kg |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case height | 620 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 1 pc(s) |
| Maximum weight capacity (per display) | 35 kg |
| Height adjustment range | 0 – 13 mm |
| Depth adjustment range | 0 – 4 mm |
| Width adjustment range | 0 – 40 mm |
