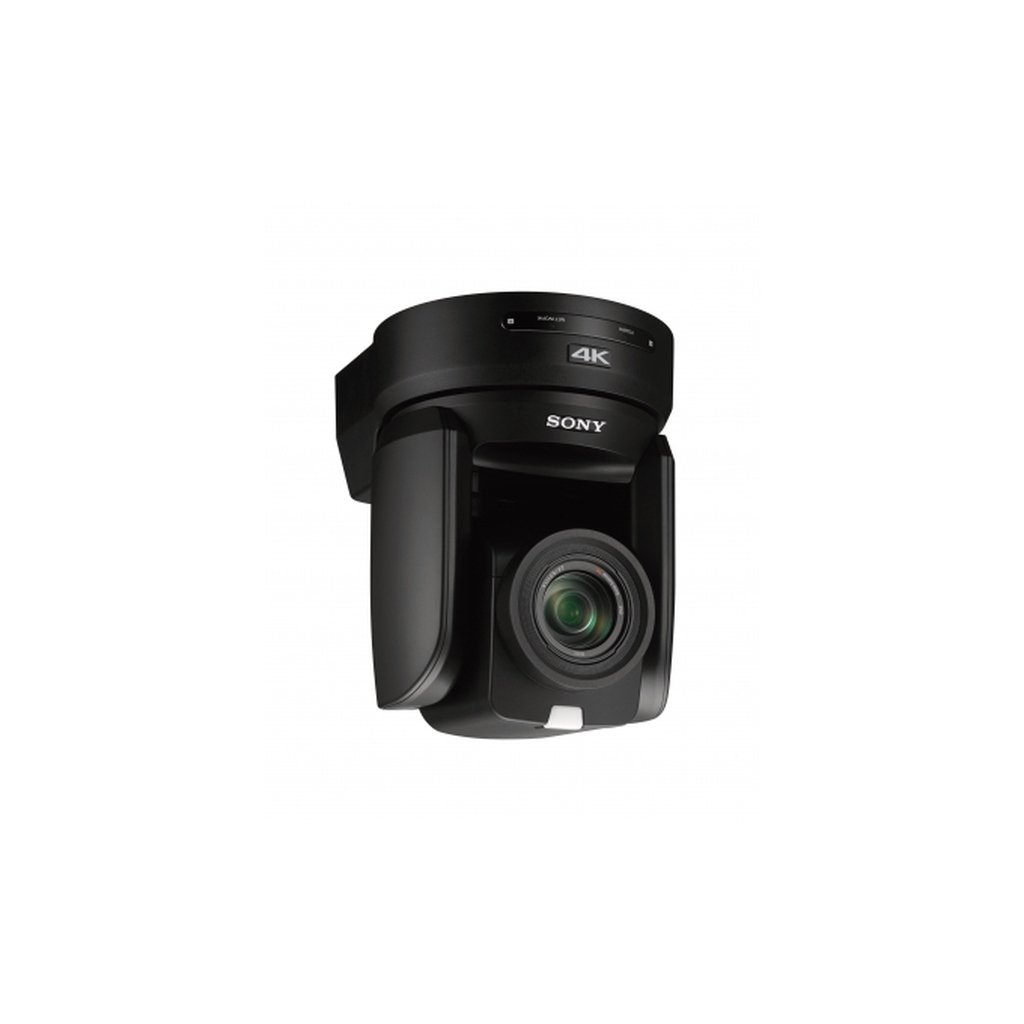

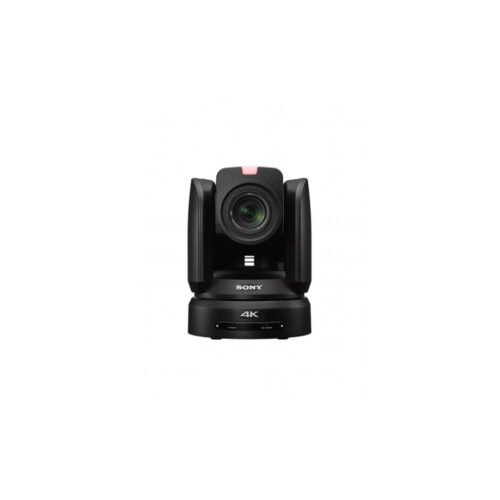

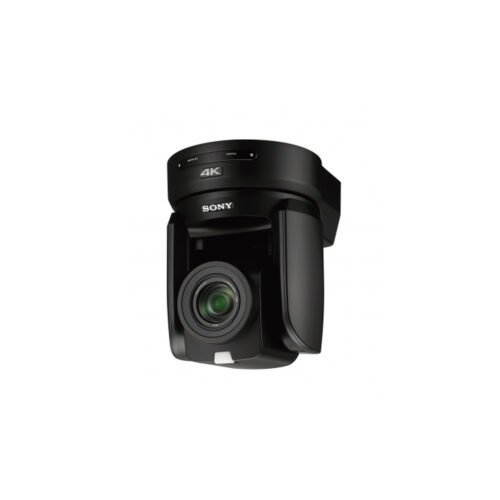

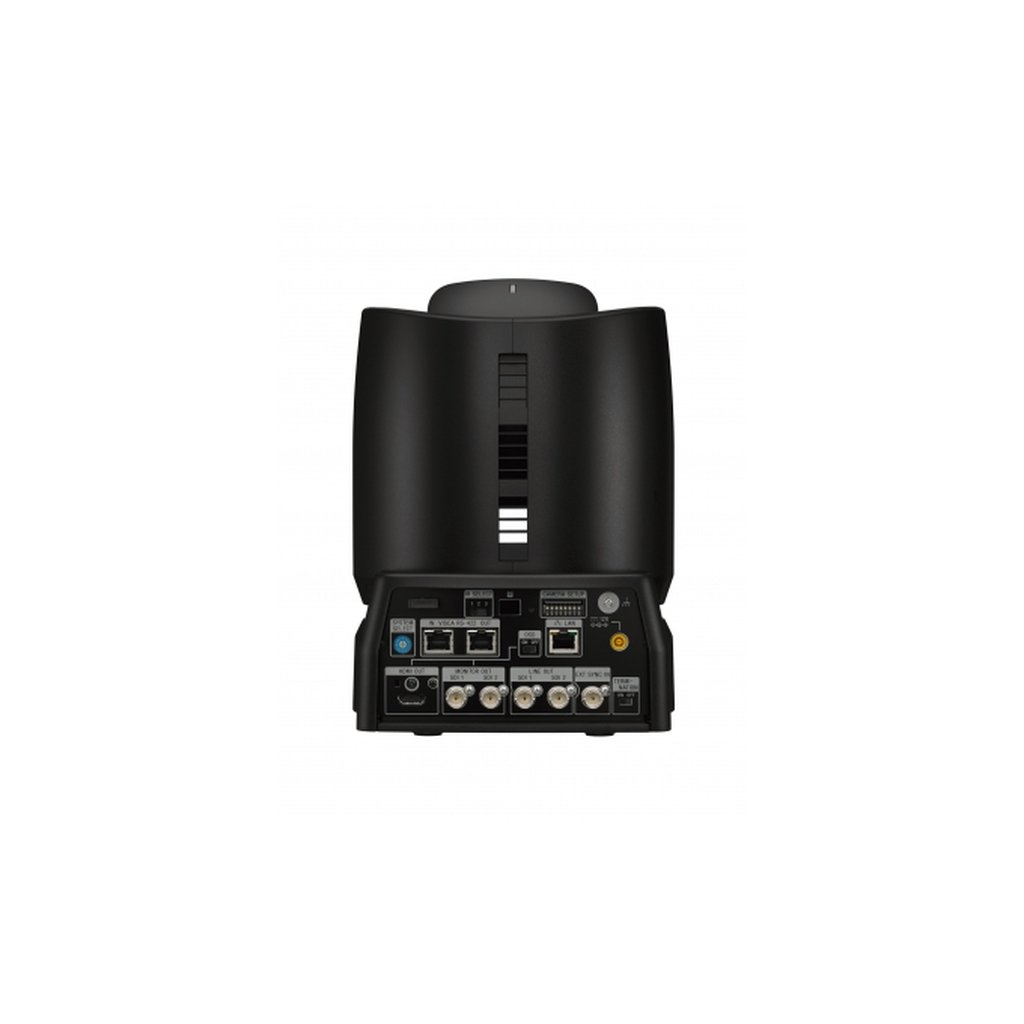

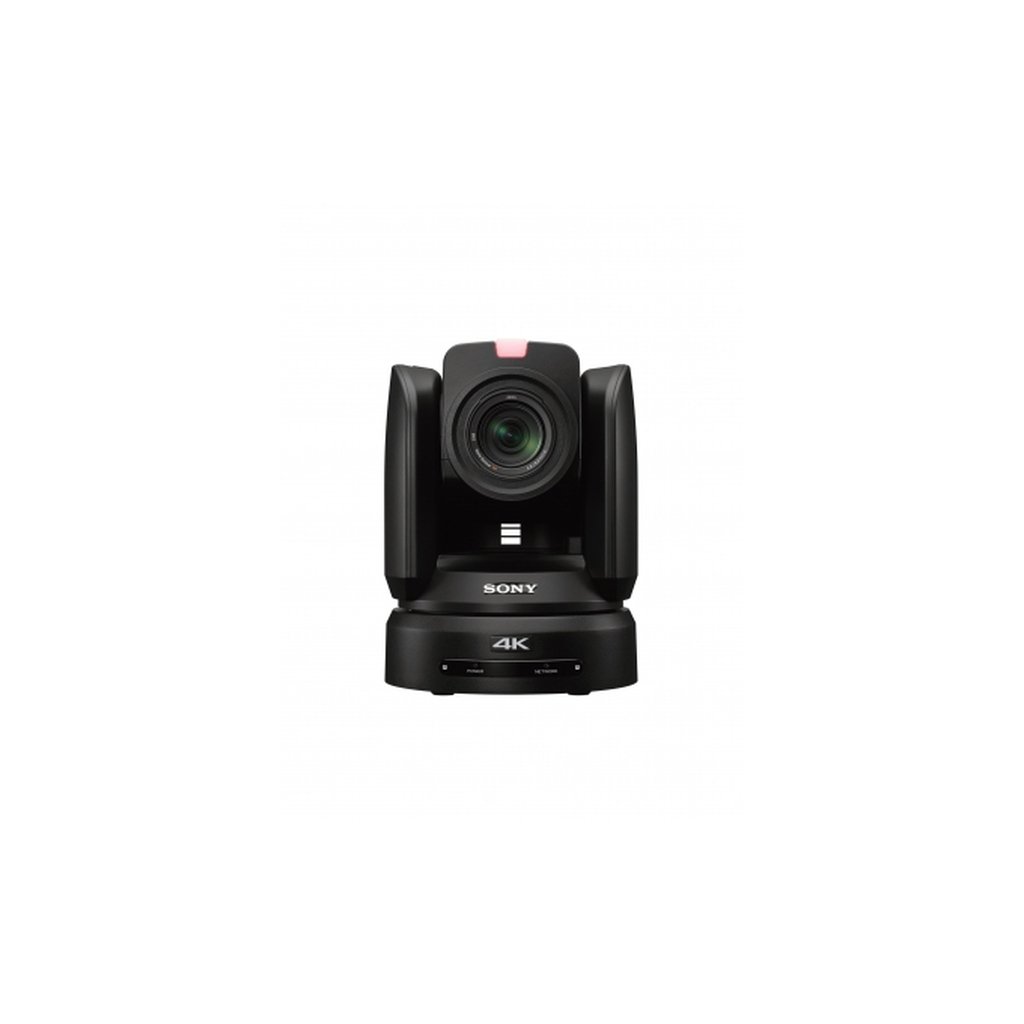

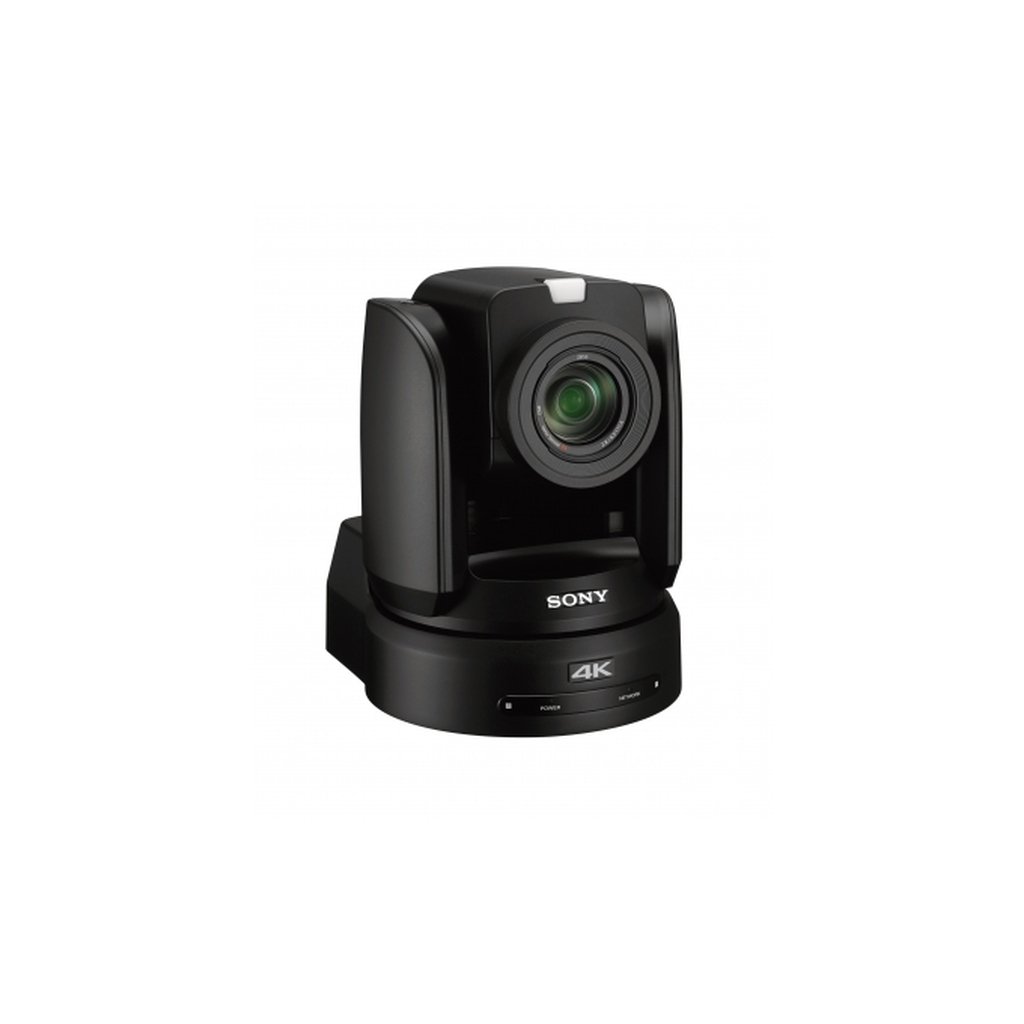

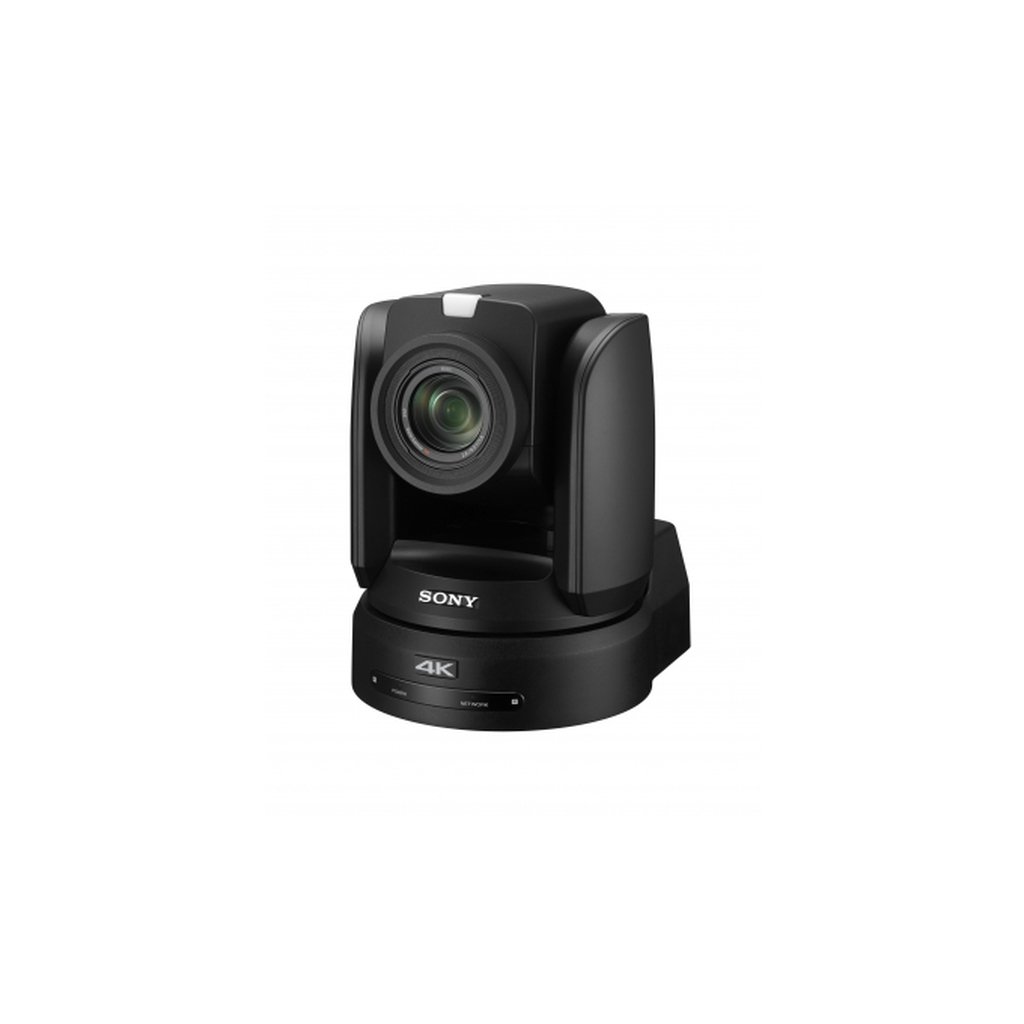

Sony BRC-X1000 security camera Dome IP security camera Indoor Ceiling
1″ Exmor R CMOS, 14.2 MP, 2160p, PTZ, RS-422, 3G-SDI, HDMI, 198 x 260 x 238 mm, 4300 g, black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity
The BRC-X1000 is Sony’s first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It’s equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It’s also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful ‘bokeh’ effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.
There’s also a broad range of video interfacing and remote control possibilities – plus support for PoE+ and genlock – for smooth integration into any broadcast, professional or corporate AV environment.
Additional information
| Weight | 3.56 lbs |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| PTZ control | Yes |
| Day/night mode | Yes |
| Light exposure modes | Auto, Manual, Shutter priority AE |
| Mounting type | Ceiling |
| Product colour | Black |
| Form factor | Dome |
| Minimum illumination | 1.7 lx |
| Lens viewing angle, horizontal | 64.6° |
| Tilt angle range | -30 – 90° |
| Tilt speed | 60 °/sec |
| Pan range | -170 – 170° |
| Pan speed | 60 °/sec |
| White balance | Auto, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/10000s – 1/8 (59.94/29.97), 1/10000s – 1/6 (50/25) |
| Sensor type | CMOS |
| Optical zoom | 12x |
| Focal length range | 9.3 – 111.6 mm |
| Total megapixels | 14.2 MP |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 198 mm |
| Depth | 238 mm |
| Height | 260 mm |
| Weight | 4.3 kg |
| Number of cameras | 1 |
| Connectivity technology | Wired |
| Antenna gain level (max) | 33 dBi |
| Zoom capability | Yes |
| Auto focus | Yes |
| Maximum aperture number | 4.5 |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Frame rate | 60 fps |
| Automatic gain control | Yes |
| Full HD | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| DC-in jack | Yes |
| DC output current | 13.2 A |
| Optical sensor size | 1 |
| Harmonized System (HS) code | 85258900 |
| Interface | RS-422 |
