StarTech.com MSA Uncoded QSFP+ Module – 40GBASE-SR4 – Multi Mode Fiber (MMF) – 40GE Gigabit Ethernet QSFP+ – MPO 300m – 850nm ~
StarTech.com MSA UNCODED Compatible QSFP+ Module – 40GBASE-SR4 – Multi Mode Fiber (MMF) – 40GE Gigabit Ethernet QSFP+ – MPO 300m – 850nm (QSFP-40G-ESR4-ST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
40 Gbps | Multi Mode Fiber | MPO | 300 m (984 ft) | Lifetime Warranty

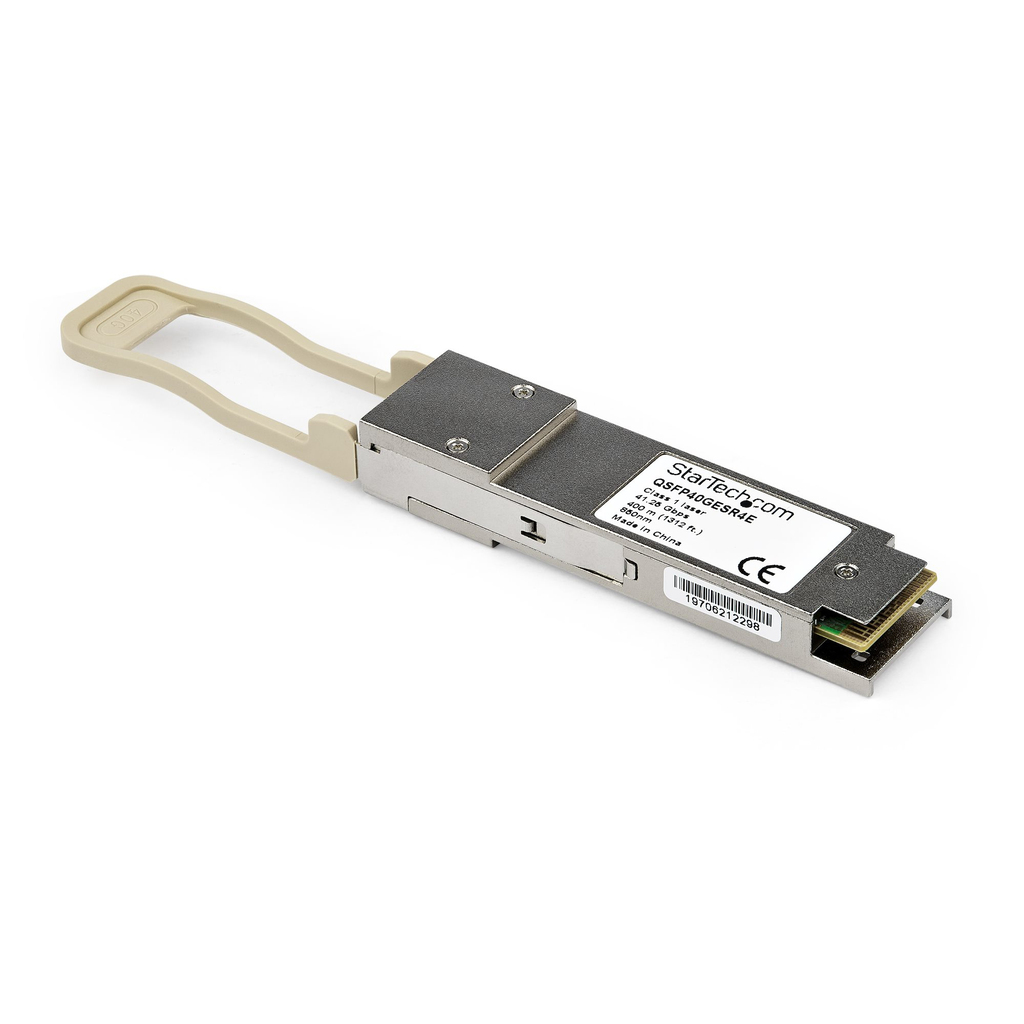

The QSFP-40G-ESR4-ST is an MSA compatible fiber transceiver module that has been designed, programmed and tested to work with MSA brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UL |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 34 mm |
| Package weight | 75 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 498745585 h |
| Width | 122 mm |
| Depth | 18.6 mm |
| Height | 8.5 mm |
| Weight | 37.5 g |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 100 pc(s) |
