TP-Link TL-MCRP100 power supply unit 102 W Black
In Stock
100-240V Redundant Power Supply Module
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

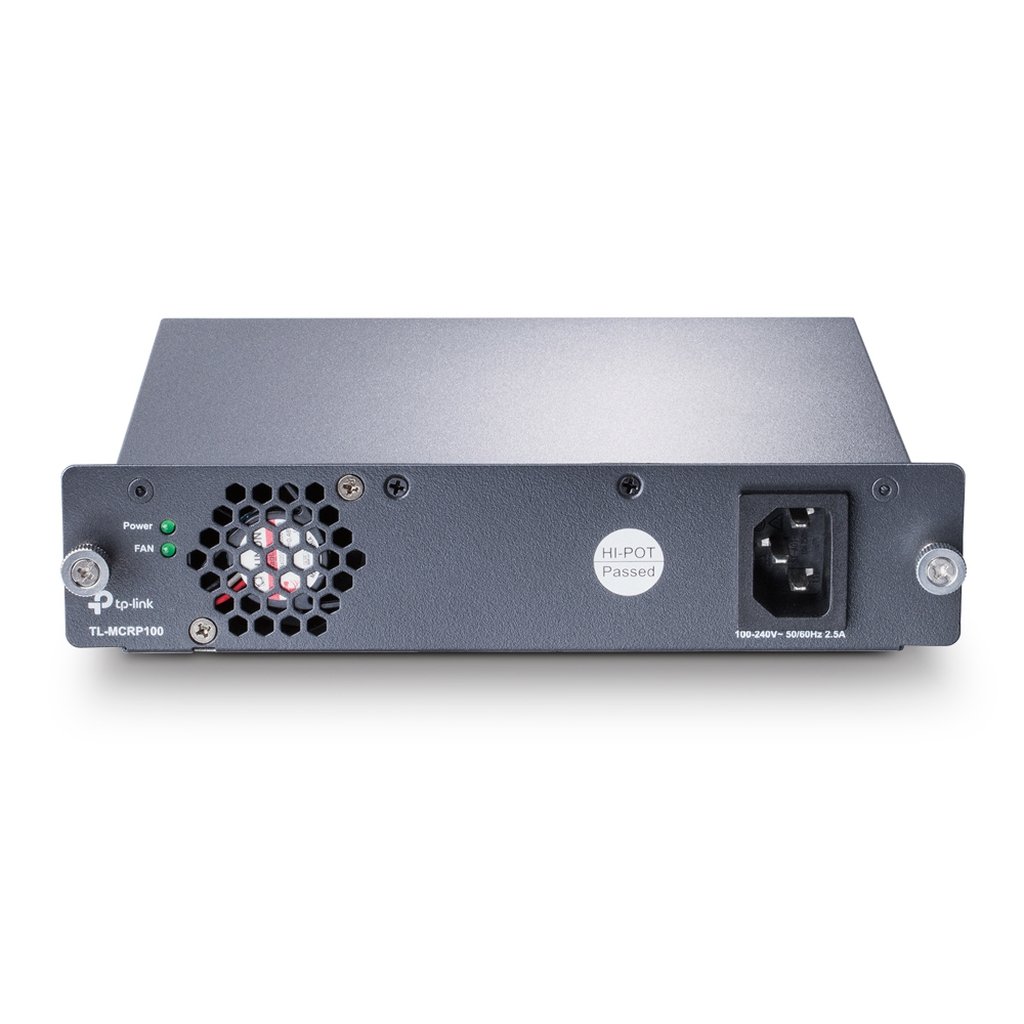

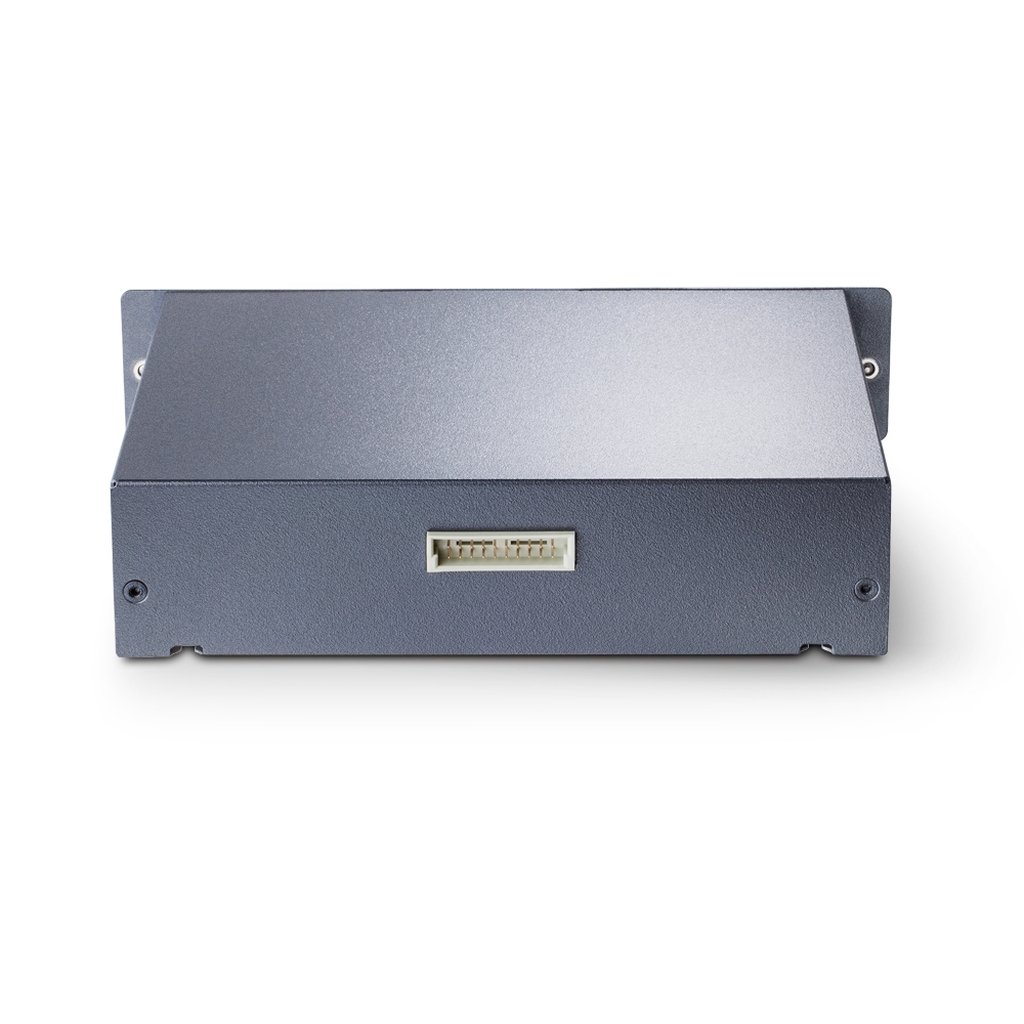

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.
* TL-MCRP100 v2.0 supports TL-MC1400 v3.0, TL-MCRP100 v1.0 supports TL-MC1400 v1.0/2.0.
Additional information
| Weight | 0.84 lbs |
|---|---|
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -35 – 85 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Harmonized System (HS) code | 84733020 |
| Total power | 102 W |
| Product colour | Black |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| LED indicators | Yes |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 193.4 mm |
| Depth | 162.3 mm |
| Height | 42.2 mm |
| Cooling type | Active |
| Input current | 3 A |
