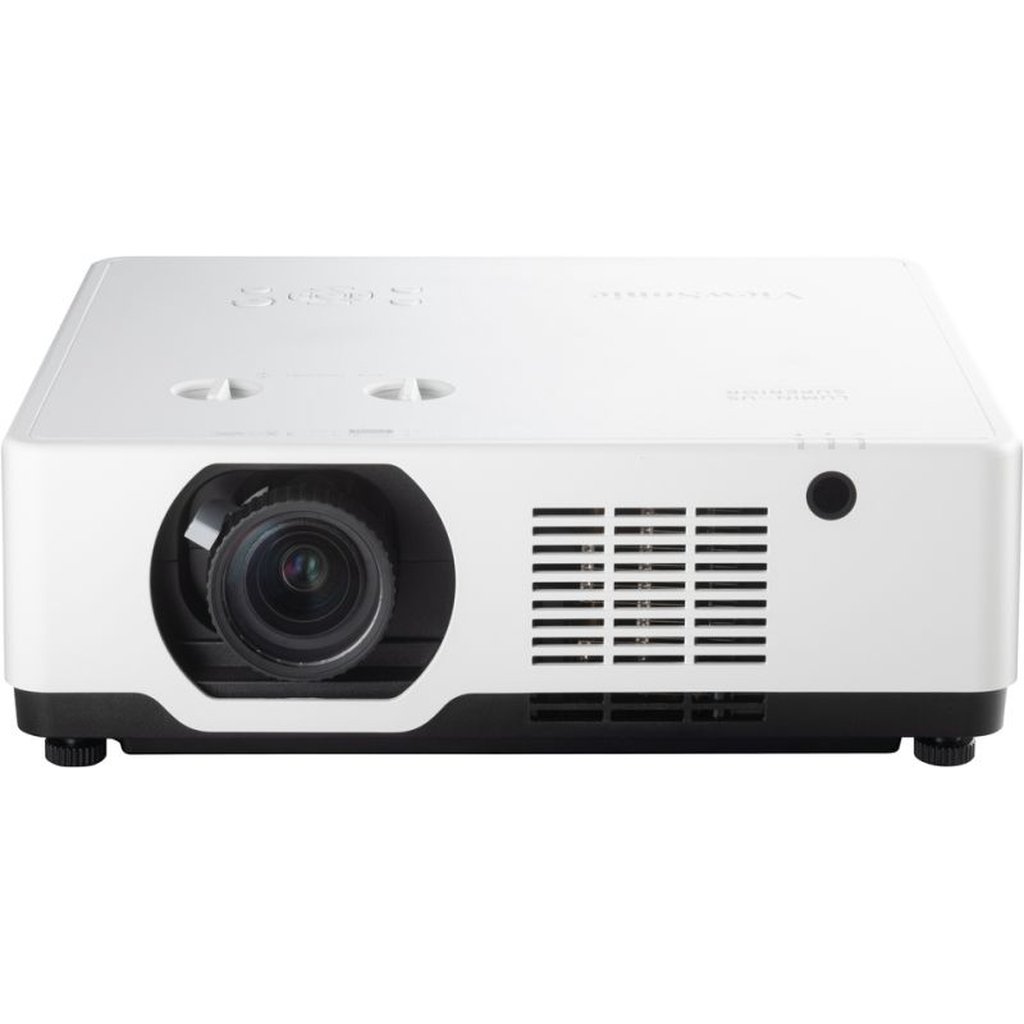

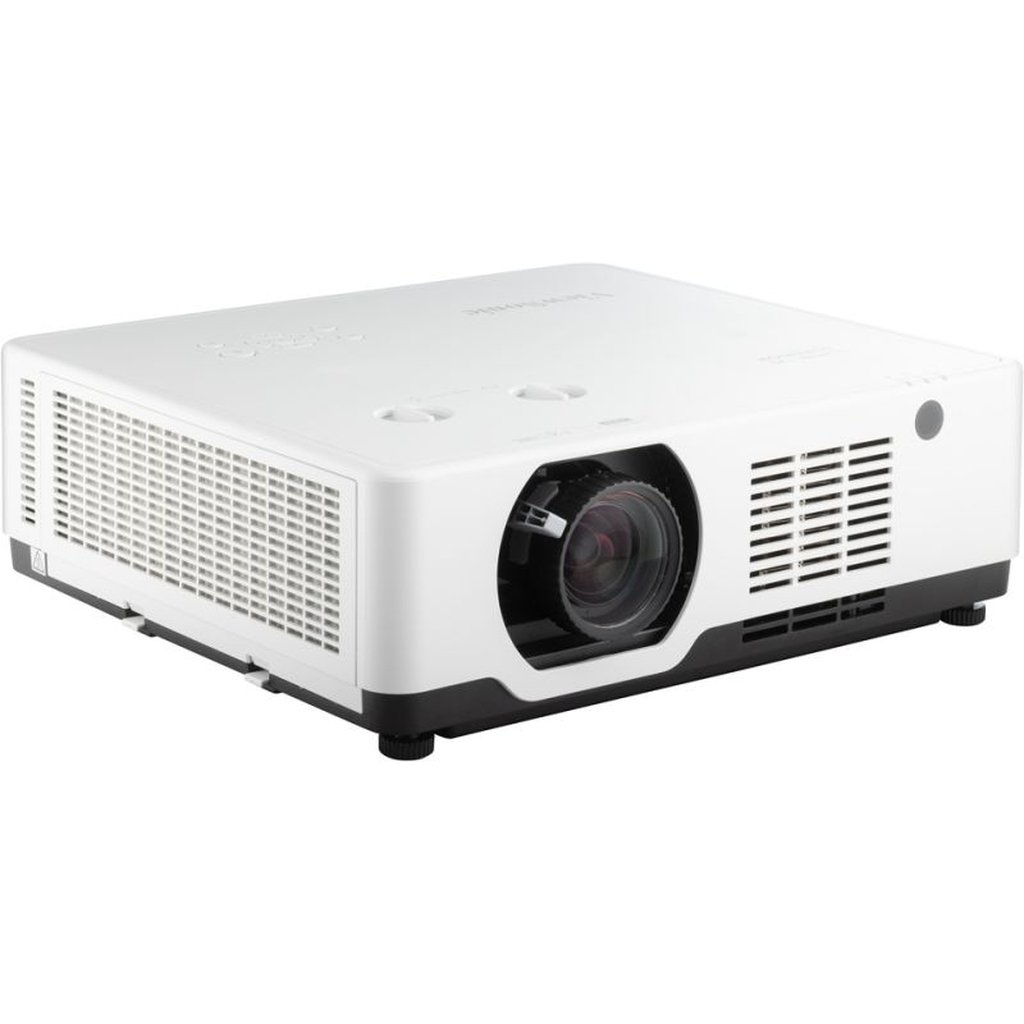

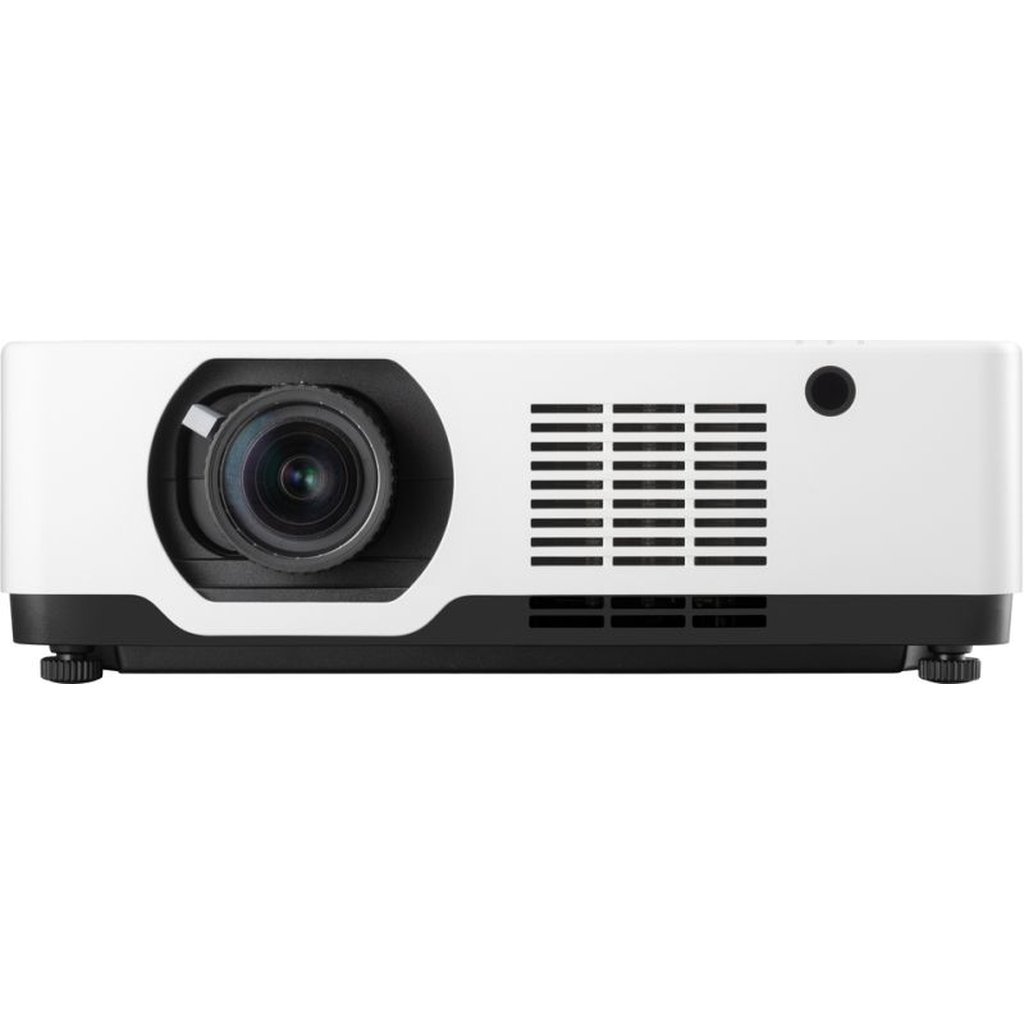

Viewsonic LSC601-4K data projector Standard throw projector 6000 ANSI lumens 3LCD UHD 4K (3840×2160) White
6000 ANSI Lumens 4K Laser Installation Projector
- We give you a dedicated account manager with every order.

- We welcome single and bulk orders. Get fast delivery each time.

- We can offer installation and configuration on orders.

- We care, get great pricing and great customer service.

- Any further questions, get in touch on 01933 837600.

Description
The LSC601-4K is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Equipped with 4K resolution and HDR/HLG support, it delivers professional-quality presentations and stunning visuals. Utilizing 2nd generation laser phosphor technology, this projector offers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300”. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601-4K offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Ultimate Viewing Experience with 4K HDR
Experience 4K crystal-clear details and dynamic visuals powered by HDR/HLG support. The projector features dual HDMI 2.0/HDCP 2.2 ports for original 4K quality content, bringing your presentations, creative works, and sports viewing to life.
Bright Images for Large Venues

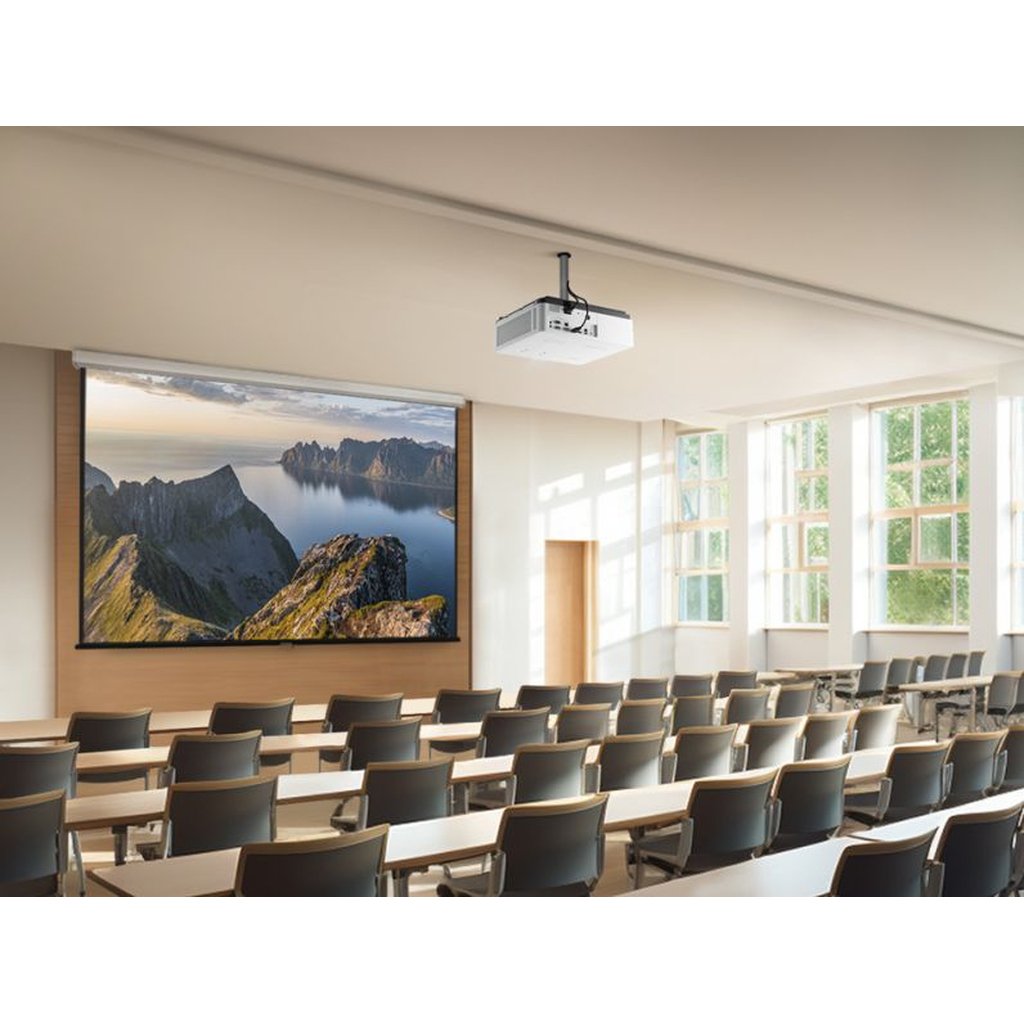

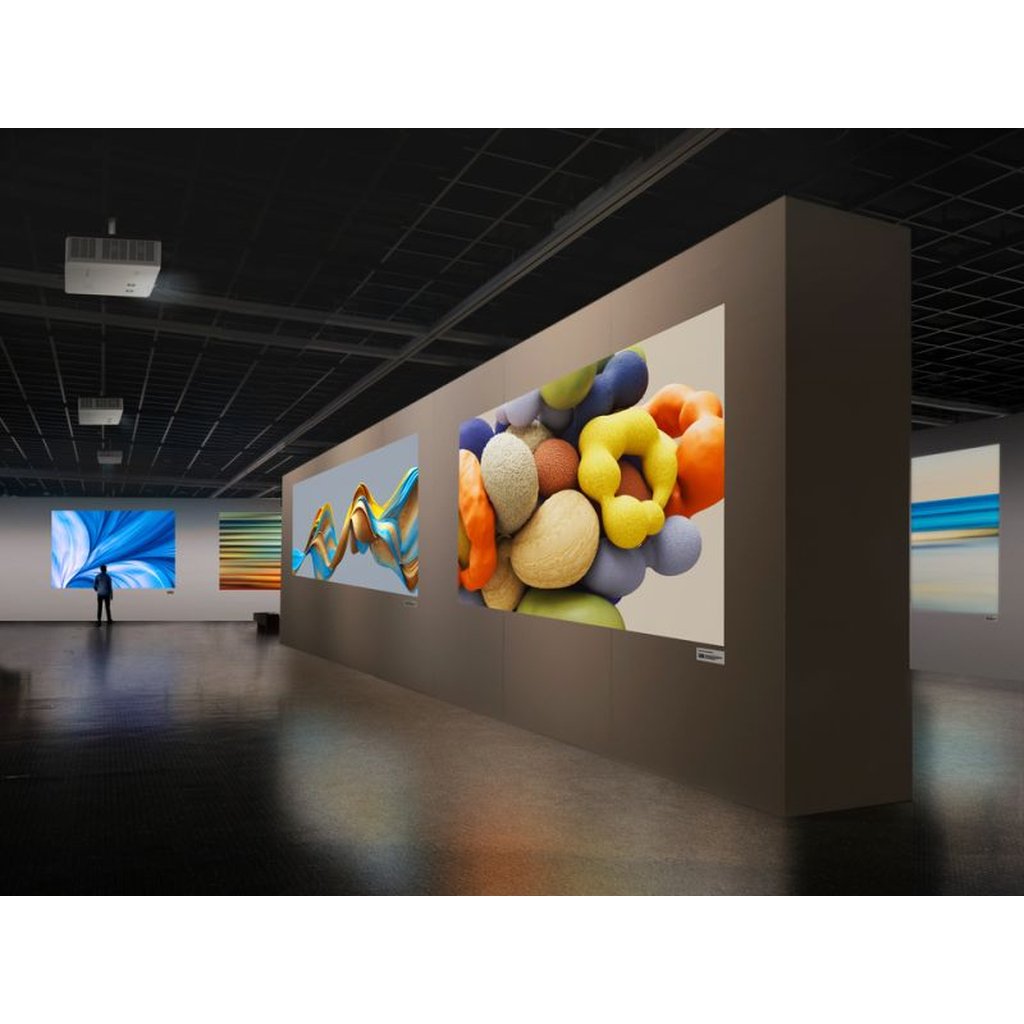

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment

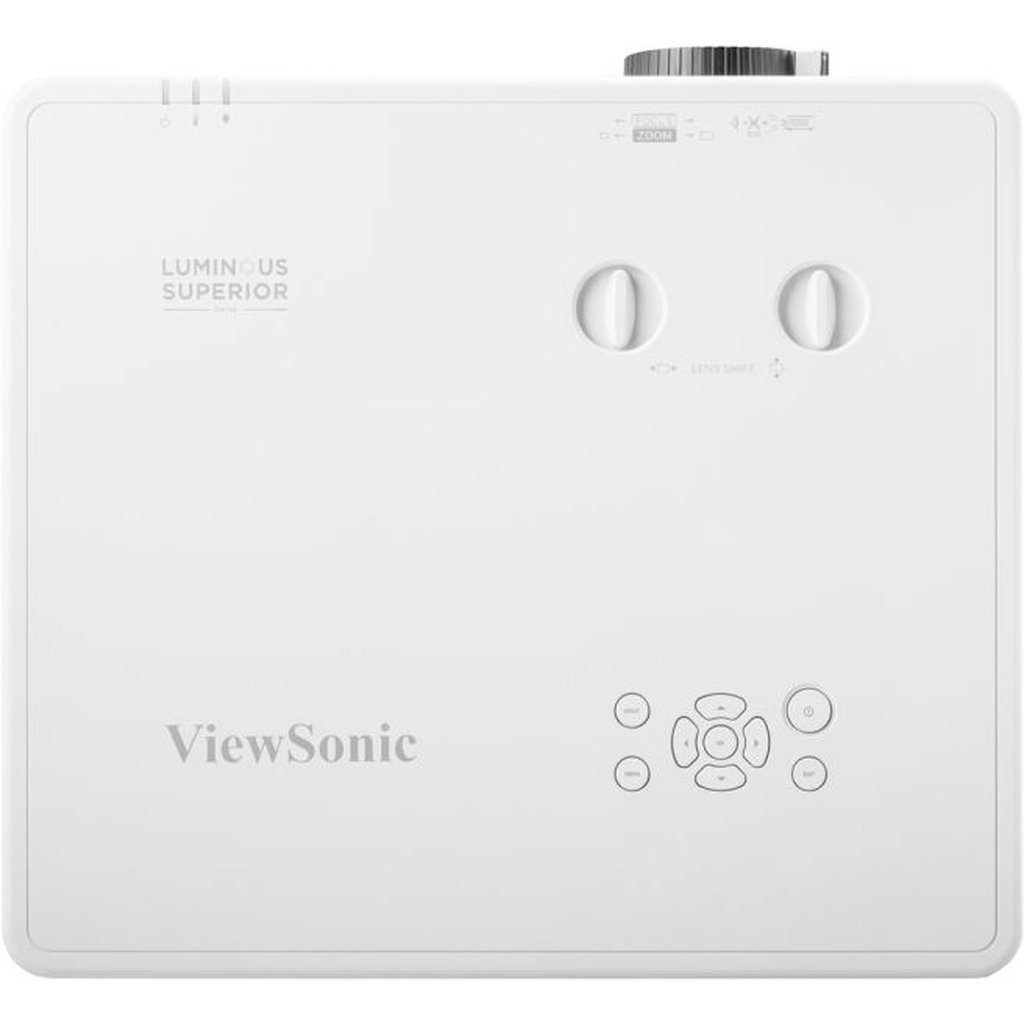

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Additional information
| Weight | 3.52 lbs |
|---|---|
| Projector brightness | 6000 ANSI lumens  |

| Projection technology | 3LCD  |

| Projector native resolution | UHD 4K (3840×2160)  |

| Contrast ratio (typical) | 3000000:1  |

| Native aspect ratio | 21:9  |

| Smart projector | No  |

| Screen size compatibility | 762 – 7620 mm (30 – 300")  |

| Projection distance | 0.8 – 13.35 m  |

| Number of colours | 1.07 billion colours  |

| Keystone correction, horizontal | +-25°  |

| Keystone correction, vertical | +-30°  |

| Light source type | Laser  |

| Service life of light source | 20000 h  |

| Service life of light source (economic mode) | 30000 h  |

| Zoom capability | Yes  |

| Throw ratio | 1.2 – 2  |

| Offset | 0%  |

| Full HD | Yes  |

| VGA (D-Sub) ports quantity | 1  |

| HDMI ports quantity | 2  |

| DVI port | No  |

| HDMI version | 2.0  |

| USB 2.0 Type-A ports quantity | 2  |

| Ethernet LAN | Yes  |

| Wi-Fi | No  |

| Card reader integrated | No  |

| Noise level | 37 dB  |

| Noise level (economic mode) | 26 dB  |

| HDCP | Yes  |

| On Screen Display (OSD) | Yes  |

| Built-in speaker(s) | Yes  |

| RMS rated power | 16 W  |

| Product colour | White  |

| Built-in display | No  |

| Power source | AC  |

| Power consumption (typical) | 325 W  |

| Power consumption (standby) | 0.5 W  |

| AC input voltage | 100 – 240 V  |

| AC input frequency | 50/60 Hz  |

| Operating temperature (T-T) | 0 – 40 °C  |

| Weight | 7.9 kg  |

| Width | 405 mm  |

| Depth | 358 mm  |

| Height | 137 mm  |

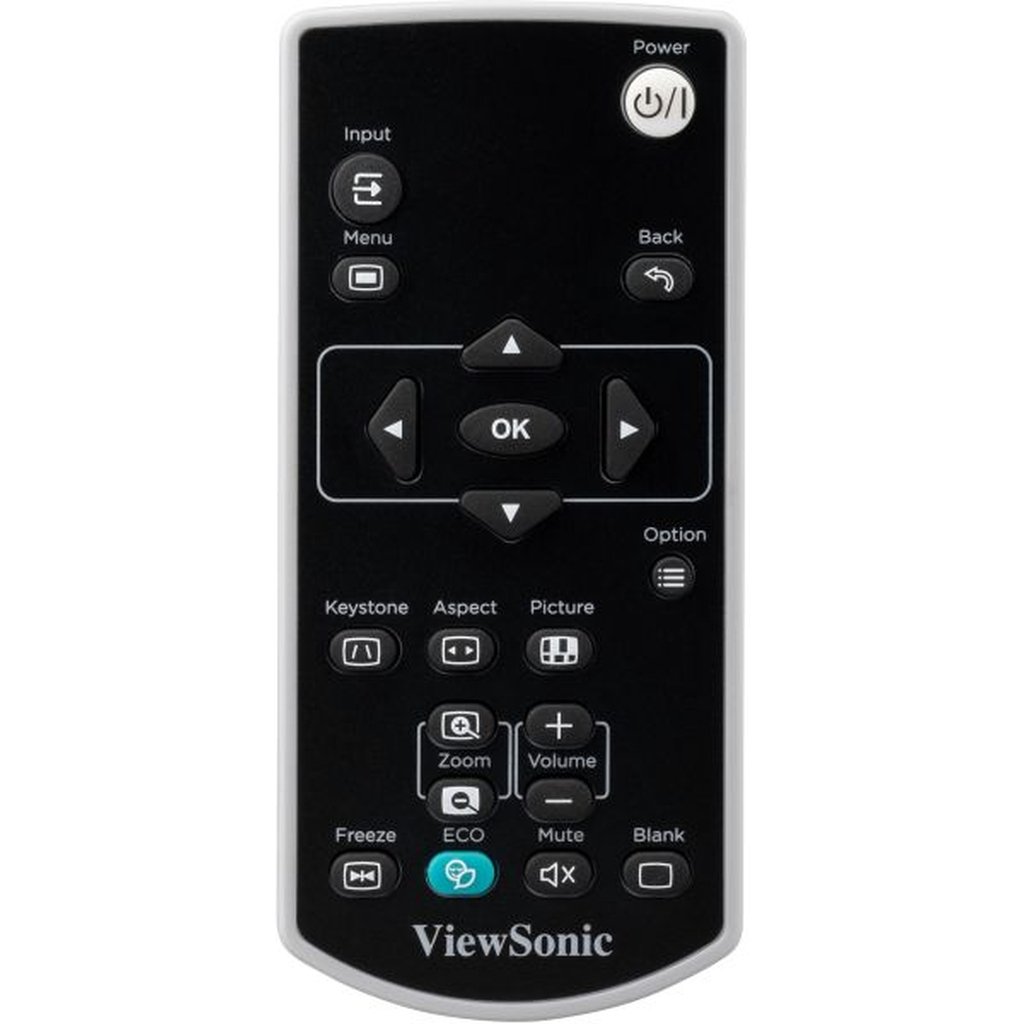

| Remote control included | Yes  |

| Cables included | AC  |

| 3D | No  |

| PC Audio out | Yes  |

| Smart TV | No  |

| Product type | Standard throw projector  |

| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p  |

| Serial interface type | RS-232  |

| Aperture range (F-F) | 1.5 – 2.08  |

| HDMI connector type | Full-size  |

| Horizontal lens shift range | -29 – 29%  |

| Vertical lens shift range | 0 – 66%  |

| Ethernet LAN (RJ-45) ports | 2  |

| AC (power) in | Yes  |

| Quantity per pack | 1 pc(s)  |

| Matrix size | 1.63 cm (0.64")  |

| Matrix type | MLA  |

| On Screen Display (OSD) languages | Multi  |

| Horizontal synchronization (min) | 15 kHz  |

| Horizontal synchronization (max) | 135 kHz  |

| Vertical synchronization (max) | 0.085 kHz  |

| Focal length range | 17.2 – 27.7 mm  |

| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160  |

| Package width | 510 mm  |

| Package depth | 498 mm  |

| Package height | 260 mm  |

| Package weight | 10.1 kg  |

| Vertical synchronization (min) | 0.024 kHz  |

| Air filter | Yes  |

| S/PDIF out port | Yes  |

| HDCP version | 1.4/2.2  |

| Image lag time | 32 ms  |

| Digital zoom | 2x  |

| Optical zoom | 1.6x  |

| Screen size (max) | 7.62 m (300")  |

| Light source brightness | 6500 lm  |
