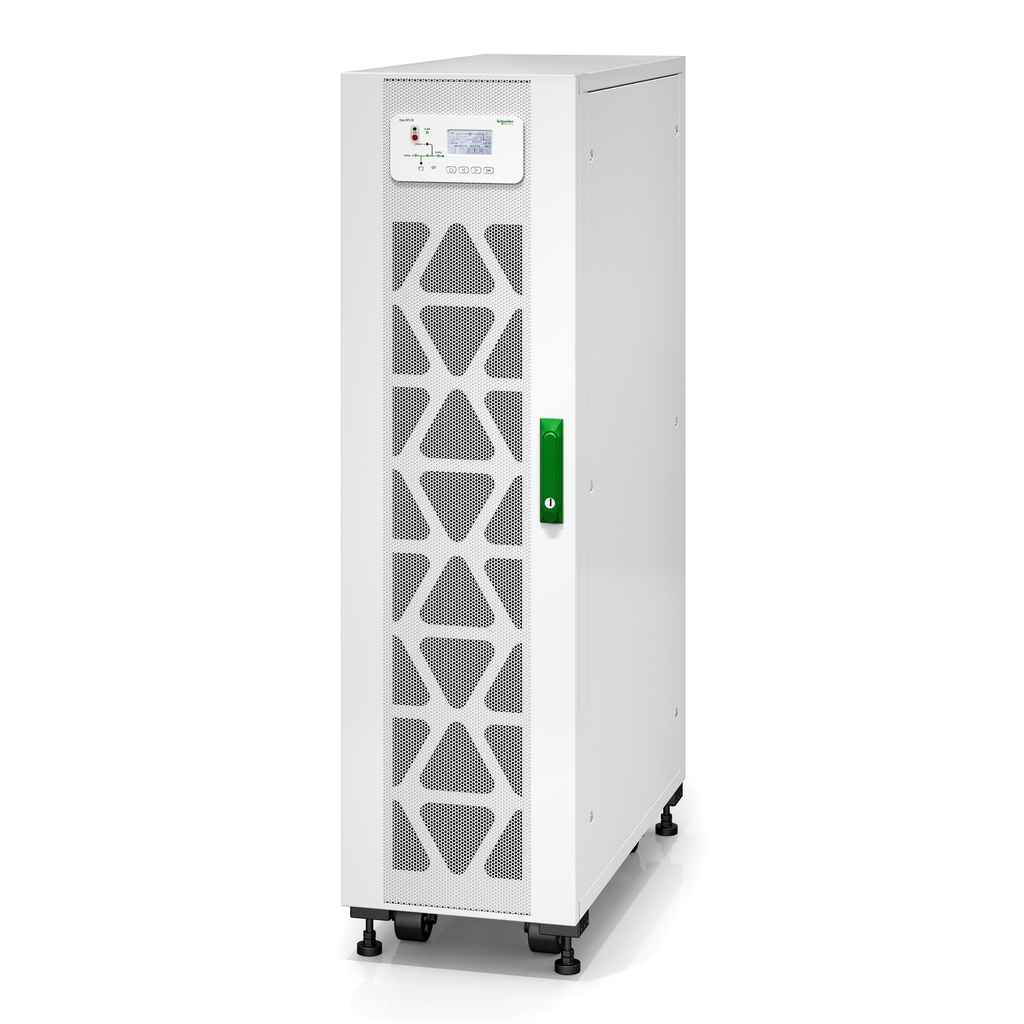

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries

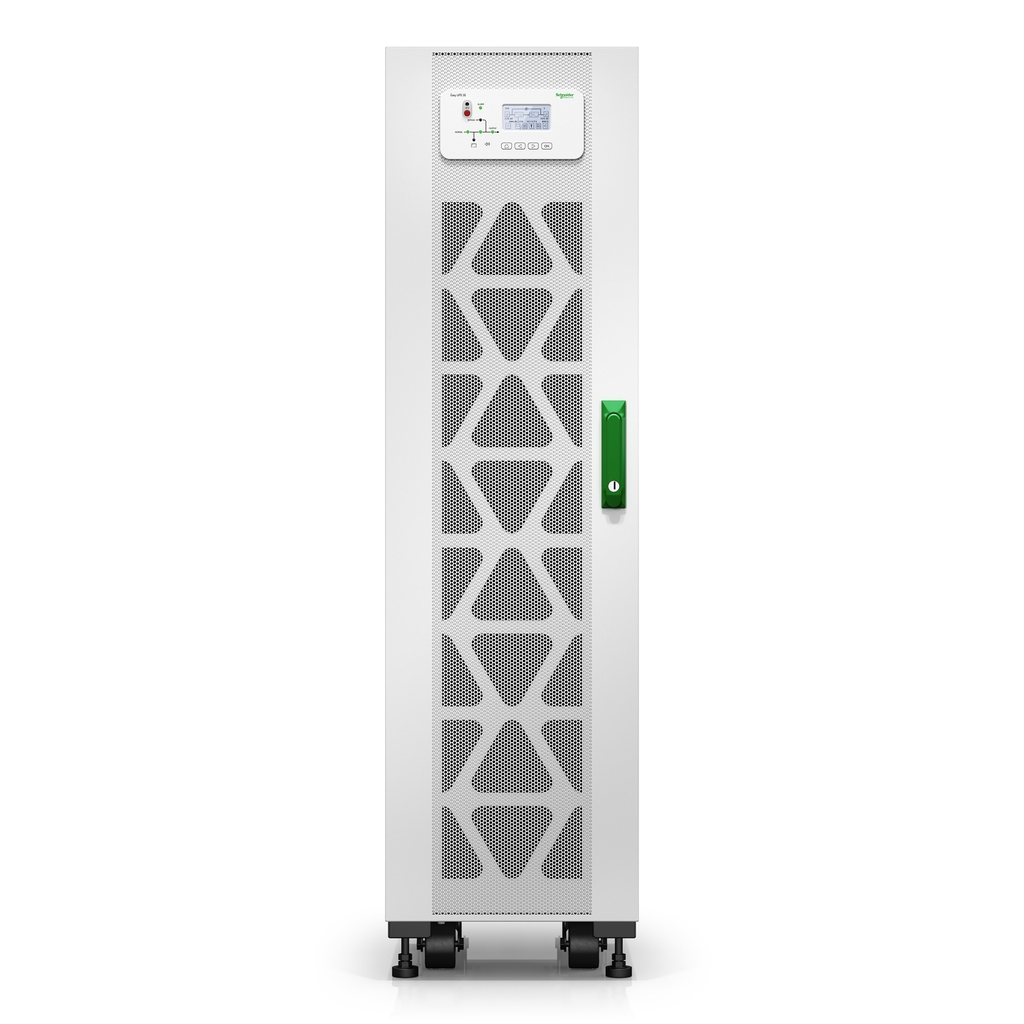

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries - Image 2

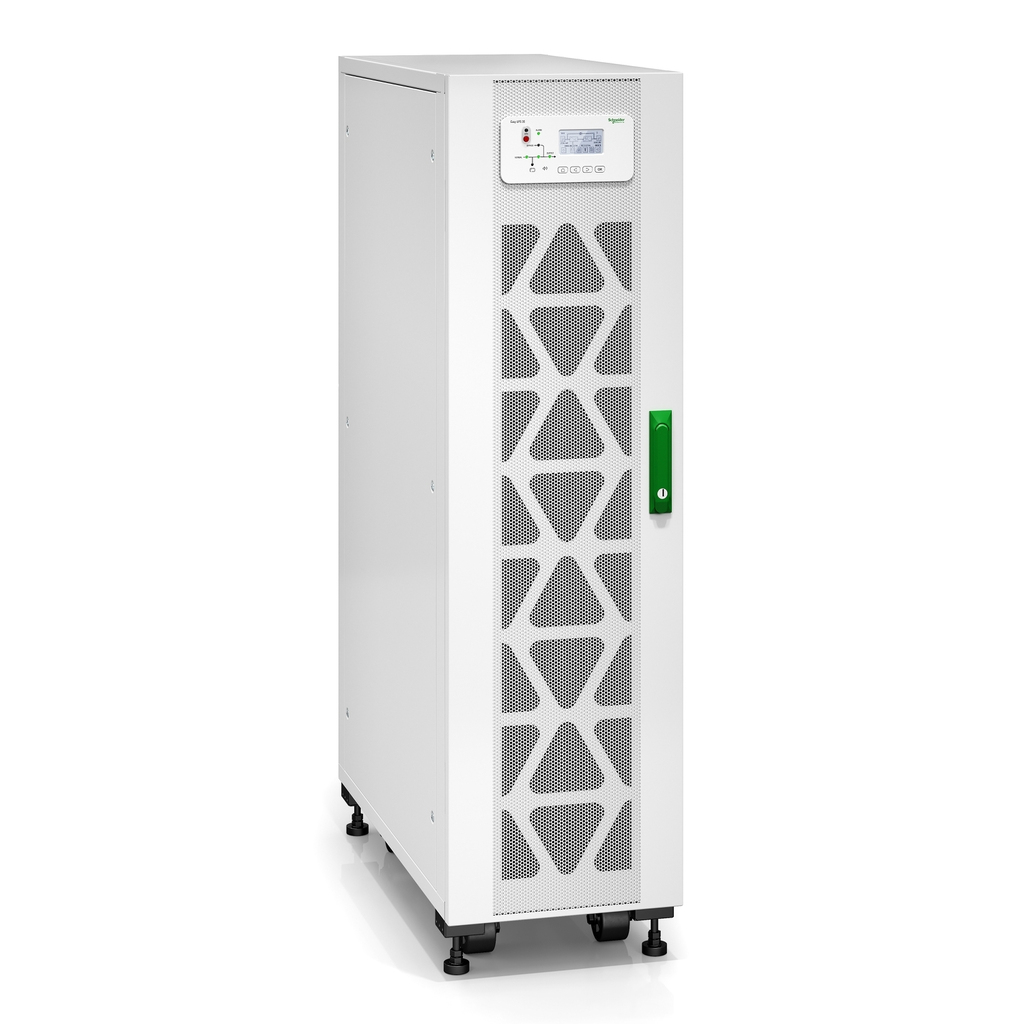

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries - Image 3

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries

In Stock

Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries

Add to wishlist
  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: E3SUPS20K3IB
Categories: ,
Brand:

Description

This high-efficiency 3-phase UPS E3SUPS20K3IB features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.

Additional information

Weight 157.67 lbs
Output power capacity

20 kVA
Output power

20000 W
Input frequency

45/65 Hz
Product colour

White
Operating temperature (T-T)

0 – 40 °C
Storage temperature (T-T)

-25 – 55 °C
Operating relative humidity (H-H)

0 – 95%
Storage relative humidity (H-H)

0 – 95%
Certification

CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Weight

150 kg
Harmonized System (HS) code

85078000
Package weight

158 kg
Input operation voltage (min)

304 V
Input operation voltage (max)

477 V
Maximum current

37 A
Form factor

Rackmount
Compliance certificates

RoHS
Width

380 mm
Depth

907 mm
Height

1400 mm
UPS topology

Double-conversion (Online)
Output operation voltage (min)

220 V
Output operation voltage (max)

240 V
Crest factor

3:1
AC outlet types

Hardwire
Battery technology

Sealed Lead Acid (VRLA)
Package width

563 mm
Package depth

1014 mm
Package height

1640 mm
Output frequency

50/60 Hz
Output voltage Total Harmonic Distortion (THD)

5.5%
Battery voltage

240 V
International Protection (IP) code

IP20
Power factor

0.99
